MULTICOMP-PRO PP002397 Hook-Up Wire

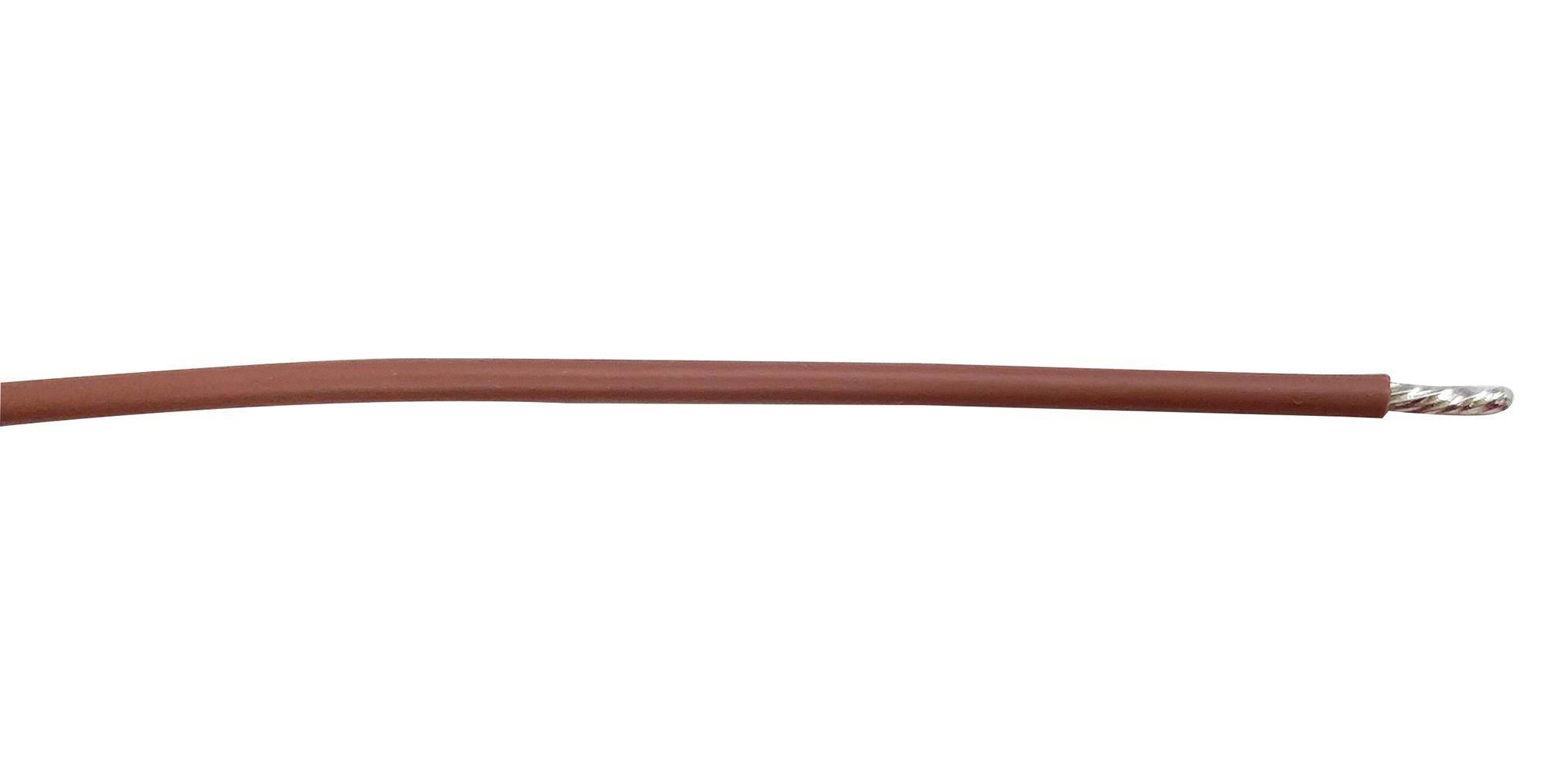

UL1569 Style Stranded Hook-Up Wire meets the specifications of UL 1569, rated at 105°C and 300V. Made with stranded tinned copper conductors and insulated with PVC, this wire is suitable for electrical wiring and electronic applications. It is available in various gauges, including 16, 18, 20, 22, 24, 26, 28, and 30 AWG, with multiple color options. The wire can be supplied in 305-meter reels or per meter, ensuring flexibility for different project needs. Its construction ensures reliable electrical performance and compliance with recognized safety standards.
MULTICOMP-PRO PP002397 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Available Length: 305 meters reel or per meter
- Conductor Sizes: 16, 18, 20, 22, 24, 26, 28, 30 AWG
- Number of Strands: Varies by gauge, e.g., 65/0.16 for 16 AWG
- Insulation Diameter: Ranges from 0.31 mm (30 AWG) to 1.49 mm (16 AWG)
- Conductor Diameter: Ranges from 0.31 mm (30 AWG) to 1.49 mm (16 AWG)
- Operating Temperature: Up to 105°C
- Voltage Rating: 300V
- Cable Colors: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Orange, Grey
- Certifications: UL Recognized (UL file no. E352035)
Buy the Buy UL1569 Style Stranded Hook-Up Wire Part Number PP002397 Online
Discover the high-quality UL1569 Style Stranded Hook-Up Wire, rated at 105°C and 300V, crafted with stranded tinned copper and durable PVC insulation. This versatile wire supports a wide range of electrical and electronic applications, available in multiple gauges and colors. It is supplied in reels of 305 meters or by the meter, ensuring flexibility for project needs. Certificated by UL for safety and reliability, it provides excellent electrical performance and durability for professional wiring solutions. Purchase online now for fast delivery and superior quality.
Buy UL1569 Style Stranded Hook-Up Wire PP002397 now and experience reliable electrical connections with high-quality copper conductors and versatile color options.
