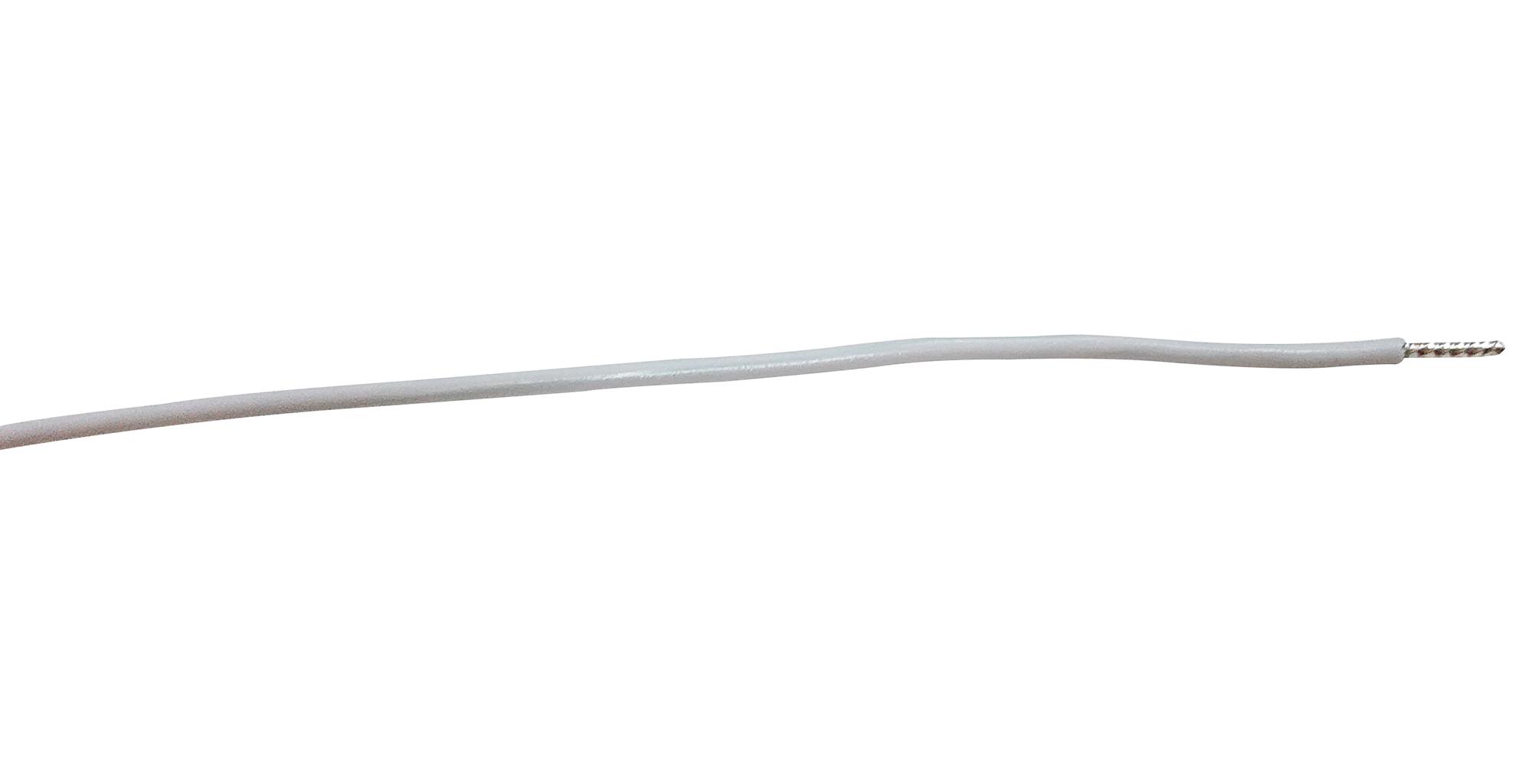

MULTICOMP-PRO PP002415 Hook-Up Wire
This UL1569 style stranded hook-up wire is designed for reliable electrical connections in various industrial applications. Made of stranded tinned copper conductors and PVC insulation, it offers excellent durability and performance at 105°C and 300V ratings. Available in multiple sizes from 16 to 30 AWG, the wire features color-coded insulation for easy identification. It is supplied in reels or per meter, ensuring flexibility for different installation needs. Suitable for control panels, electronic devices, and wiring harnesses, it guarantees safety, flexibility, and compliance with UL standards for demanding industrial environments.
MULTICOMP-PRO PP002415 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or per metre
- AWG Sizes: 16, 18, 20, 22, 24, 26, 28, 30
- Strands/Strand Size: 65/0.16 mm (16 AWG), 34/0.18 mm (18 AWG), 21/0.18 mm (20 AWG), 17/0.16 mm (22 AWG), 11/0.16 mm (24 AWG), 7/0.16 mm (26 AWG), 7/0.127 mm (28 AWG), 7/0.10 mm (30 AWG)
- Diameter: Ranges from 0.31 mm to 1.49 mm depending on size
- Color Coding: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Grey, Purple
- Resistance: 14 to 381 Q/kM based on AWG size
- Compliance: UL Recognized, RoHS, no lead (Pb) used
- Certifications: UL File No. E352035
Buy the Farnell PP002415 – Reliable Hook-Up Wire for Industrial Applications
Enhance your electrical projects with our high-quality hook-up wire, available in multiple sizes and colors for flexibility in wiring harnesses and control panels. Made of stranded tinned copper conductors and PVC insulation, it provides excellent thermal and electrical performance rated at 105°C and 300V. Whether you need reel-packaged or per meter cable, this UL recognized wire ensures safety, durability, and compliance with industry standards. Order online today to ensure quick delivery and reliable connections for your industrial, electronic, or control system needs.
Buy Farnell PP002415 now and experience unmatched reliability and performance in industrial wiring and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002415?
You can click on the BUY or RFQ button to purchase PP002415 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002415?
You can download the PP002415 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002415?
MULTICOMP-PRO
