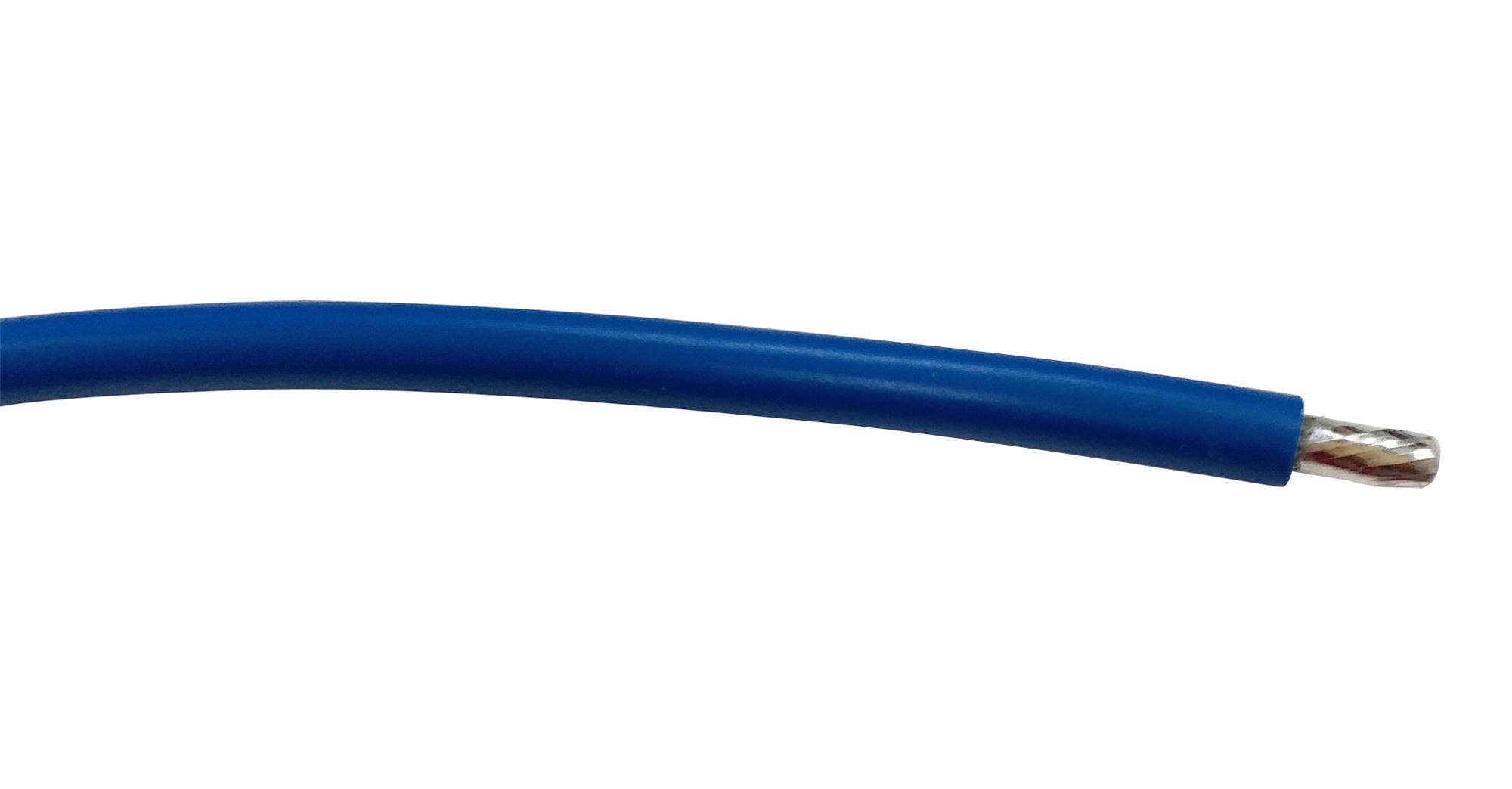

MULTICOMP-PRO PP002418 Hook-Up Wire
This UL1571 style stranded hook-up wire is suitable for industrial wiring and electronic projects. Made of stranded tinned copper conductor with PVC insulation, it offers high flexibility, excellent conductivity, and safety compliance. Rated at 280°C temperature resistance and 30V voltage, it is available in various colors and sizes, including 26 and 28 AWG, in reel or per meter lengths. Its durable design ensures reliable performance in low-voltage control and signal wiring applications, making it ideal for professional electrical and electronic installations with stringent safety standards.
MULTICOMP-PRO PP002418 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 280°C
- Rated Voltage: 30V
- Cable Length: Available in 305m reel or per metre
- AWG Sizes: 26, 28, 30
- Insulation Diameter: 0.49 mm (26 AWG), 0.39 mm (28 AWG), 0.31 mm (30 AWG)
- Conductor Diameter: 0.16 mm (26 AWG), 0.127 mm (28 AWG), 0.10 mm (30 AWG)
- Strands per conductor: 7
- Resistance: 124.71 Ω/km (26 AWG), 197.94 Ω/km (28 AWG), 319.26 Ω/km (30 AWG)
- Voltage rating: 30V
- Temperature rating: 280°C
- Colour options: Black, Blue, Brown, Green, Red, Purple, White, Yellow
- Compliance: UL recognized (UL file no. E352035)
Buy the Farnell PP002418 U+2013 Reliable Hook-Up Wire for Industrial Applications
Purchase Farnell hook-up wire PP002418 online today and ensure high-quality electrical connections for industrial, control, and electronic applications. This stranded tinned copper wire with PVC insulation features a temperature rating of 280°C and a voltage rating of 30V, making it suitable for low-voltage control wiring, signal applications, and professional electrical installations. Available in multiple colors and sizes, it comes in reels or per meter lengths. Reliable and UL recognized, it's the ideal choice for engineers and technicians aiming for durability and safety in their wiring tasks.
Buy Farnell hook-up wire PP002418 now and experience unmatched reliability and performance for your electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002418?
You can click on the BUY or RFQ button to purchase PP002418 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002418?
You can download the PP002418 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002418?
MULTICOMP-PRO
