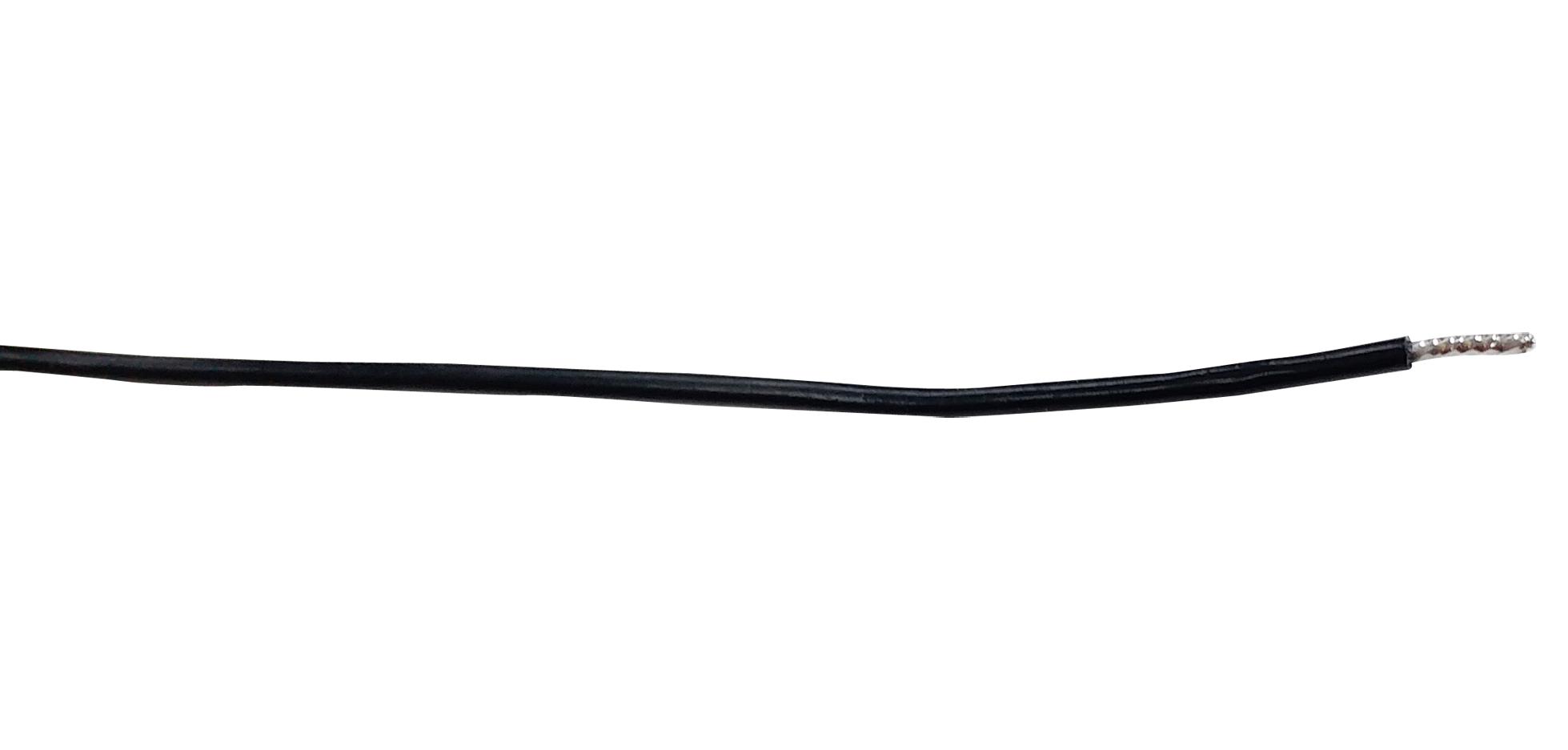

MULTICOMP PRO PP002425 Hook-Up Wire
This UL1571 style stranded hook-up wire is made of tinned copper conductors with PVC insulation rated for 280°C and 30V. Suitable for low-voltage electronic applications, it is available in multiple colors and sizes including 26, 28, and 30 AWG. The wire features flexible stranded construction with 7 strands per conductor, ideal for wiring, control panels, and electronic prototypes. It is sold in reels of 305 meters or by the meter, ensuring reliable performance and easy installation for industrial and electronic projects.
MULTICOMP PRO PP002425 Hook-Up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 280°C
- Rated Voltage: 30V
- Wire Length: Available in 305m reel or per meter
- AWG Sizes: 26, 28, 30
- Number of Strands: 7
- Strand Size: 0.16 mm (26 AWG), 0.127 mm (28 AWG), 0.10 mm (30 AWG)
- Conductor Diameter: 0.49 mm (26 AWG), 0.39 mm (28 AWG), 0.31 mm (30 AWG)
- Insulation Diameter: 1.0 mm (26 AWG), 0.9 mm (28 AWG, 30 AWG)
- Color Options: Black, Blue, Brown, Green, Red, Purple, White, Yellow
Buy the DrO-POWER Series Hook-Up Wire: PP002425
Discover the high-quality DrO-POWER hook-up wire, perfect for electronic and control circuit wiring. Made of tinned copper with PVC insulation rated for 280°C and 30V, it guarantees durability and safety. Available in multiple colors and sizes, including 26, 28, and 30 AWG, this stranded wire features seven strands per conductor for flexibility and easy installation. Sold in 305-meter reels or by the meter, it’s ideal for professional electronic wiring, control panels, and prototype projects. Reliable, safe, and easy to handle.
Order your DrO-POWER SeriesPP002425 hook-up wire today and ensure reliable, low-voltage electronic wiring for your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002425?
You can click on the BUY or RFQ button to purchase PP002425 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002425?
You can download the PP002425 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002425?
MULTICOMP PRO
