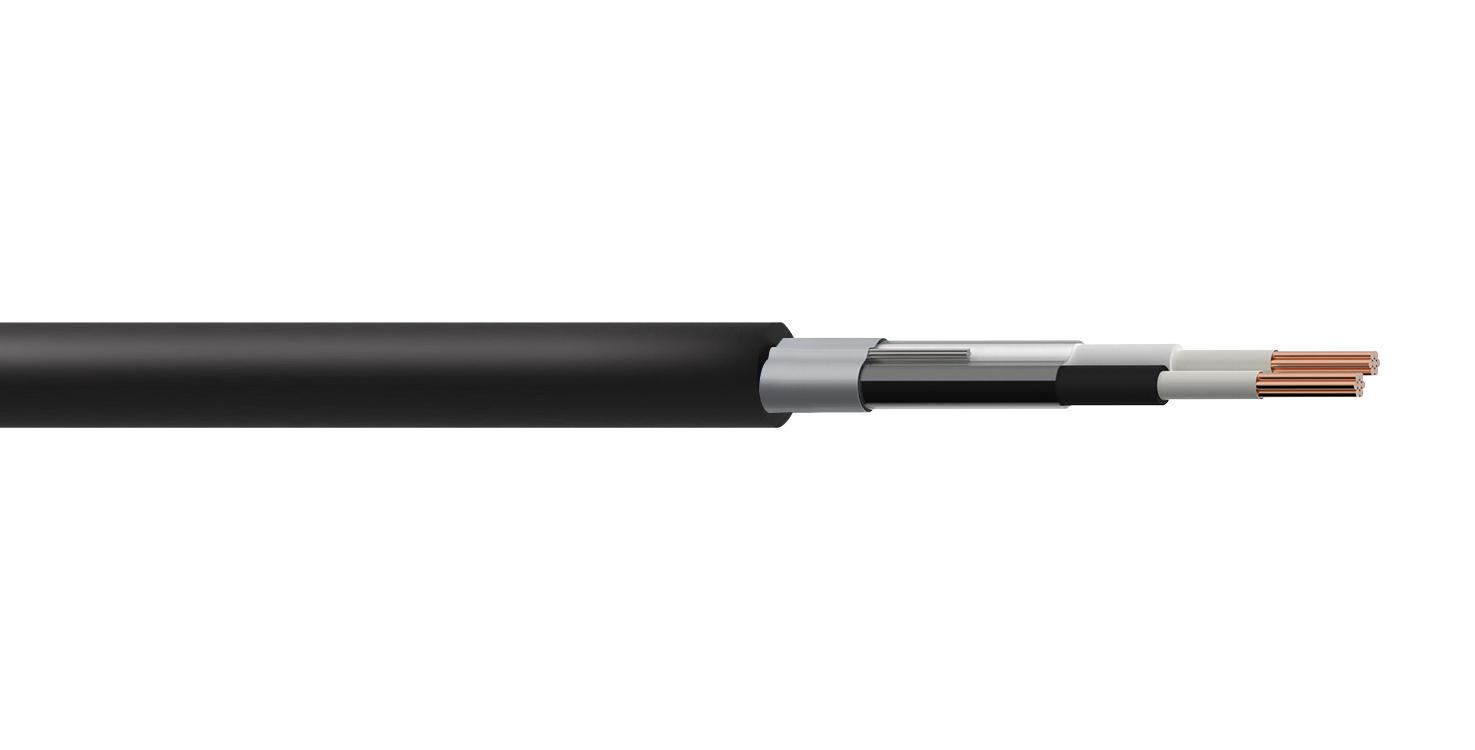

MULTICOMP-PRO PP002444 Industrial Communication Cable
These XLPE/CAM/LSZH cables are designed for reliable electrical connections and communication in industrial environments, particularly in process plants. They feature cross-linked polyethylene insulation and low smoke zero halogen (LSZH) sheath for fire safety. Suitable for circuit integrity during fire, these multi-core cables are flexible, meet stringent standards, and provide excellent resistance to heat, with a voltage rating of 300/500V. Ideal for non-burial indoor applications, they support high performance in hazardous environments, ensuring safety and durability while complying with multiple electrical and cable standards.
MULTICOMP-PRO PP002444 Industrial Communication Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Fixed: -30°C to +90°C
- Minimum Bending Radius: 7.5 x overall diameter
- Core Identification: White and Black numbered
- Sheath Colour: Black
- Construction: Conductor—0.5mm2 - 0.75mm2: Class 5 Flexible Copper, 1mm2 and above: Class 2 Stranded Copper; Insulation—XLPE (Cross-Linked Polyethylene); Sheath—LSZH (Low Smoke Zero Halogen); Individual and Collective Screen or Collective Screen: PET or Alu/PET Tape with tinned drain wire
- Physical Dimensions: Nominal cross-sectional areas from 0.75mm2 to 1.5mm2, overall diameters ranging from 6mm to 11.8mm, lightweight construction with weights from 50kg/km to 165kg/km
- Standards Compliance: BS EN 50288-1, BS EN 50288-7, HD 383, BS EN 50290-2, BS EN/IEC 60332-1, BS EN/IEC 60332-3-24, BS EN 61034-2, BS EN 50267-2-3, BS EN 50267-2-1, IEC 60331-23, BS EN 60228
- Electrical Characteristics: Mutual Capacitance 100pF/m, insulation resistance ≥5000 MΩ/km, maximum DC resistance of conductor 12.1Ω to 24.5Ω depending on size, mutual resistance at 20°C 65-75Ω, low smoke emission, and fire resistant
Buy the Multicomp XLPE/CAM/LSZH Cables – Reliable Electrical Communication for Industrial Applications
Order multicomp XLPE/CAM/LSZH cables online now for your industrial wiring needs. Crafted with fire-resistant, low smoke zero halogen materials, these cables ensure safeness in hazardous areas. Designed for process plants and indoor applications, they offer excellent flexibility, durability, and compliance with global standards. Perfect for secure, high-performance electrical and communication connections in industrial environments, these cables support reliable operation and fire safety, making them an essential choice for engineers and technicians seeking quality and safety assurance.
Get multicomp XLPE/CAM/LSZH cables today—built for electrical safety, fire resistance, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002444?
You can click on the BUY or RFQ button to purchase PP002444 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002444?
You can download the PP002444 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002444?
MULTICOMP-PRO
