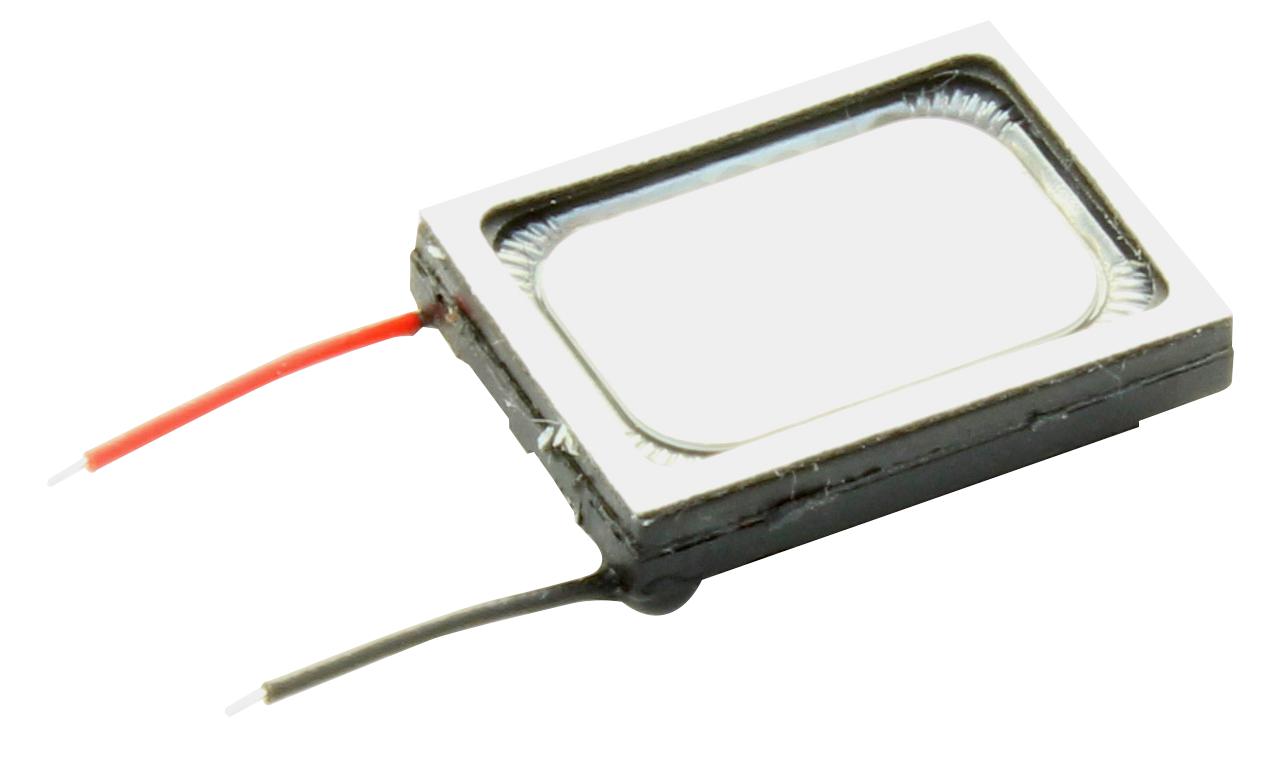

MULTICOMP PRO MP000291 Miniature Speaker
This miniature 8Q rectangular speaker is compact and low profile, suitable for mobile phones, PDAs, and Bluetooth devices. With a rated impedance of 8 ohms and a maximum input power of 1 watt, it delivers clear sound with a sound pressure level of 89dB at 2.0Vrms/10cm. The speaker features a copper voice coil, PBT front cover, PEEK diaphragm, NdFeB magnet, and easy-fix leads. Operating temperature ranges from -30°C to +80°C, making it ideal for small electronic applications requiring reliable sound output in limited space.
MULTICOMP PRO MP000291 Miniature Speaker Specifications:
- Impedance: 8 ohms
- Rated Power: 1W
- Maximum Power: 1W
- Resonant Frequency: 700Hz +20%
- Coil Resistance: 7.2 ohms
- Frequency Range: 0Hz to 20kHz
- Sound Pressure Level: 89dB +3dB
- Total Harmonic Distortion: 10% max at 1kHz, 2.0Vrms/10cm
- Operating Temperature: -30°C to +80°C
- Dimensions: 15mm x 11mm x 3mm
- Materials: PBT front cover, PEEK diaphragm, Copper wire voice coil, NdFeB magnet
- Wire: UL1571 32AWG
- Weight: 2.1g
Buy the multicomp 8Q – Reliable Miniature Speaker for Industrial Applications
Purchase the multicomp 8Q miniature speaker online today and enhance your electronic projects with a compact, high-quality sound solution. Its small size and low profile make it ideal for space-constrained applications such as mobile phones, PDAs, and Bluetooth devices. Equipped with easy-fix leads and built from durable materials like PBT, PEEK, and NdFeB magnet, this speaker provides reliable performance with a sound pressure level of 89dB. Order now to enjoy fast delivery and competitive prices for your industrial or consumer electronics needs.
Buy multicomp 8Q miniature speaker now and experience compact, reliable sound output for your electronic projects and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000291?
You can click on the BUY or RFQ button to purchase MP000291 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000291?
You can download the MP000291 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000291?
MULTICOMP PRO
