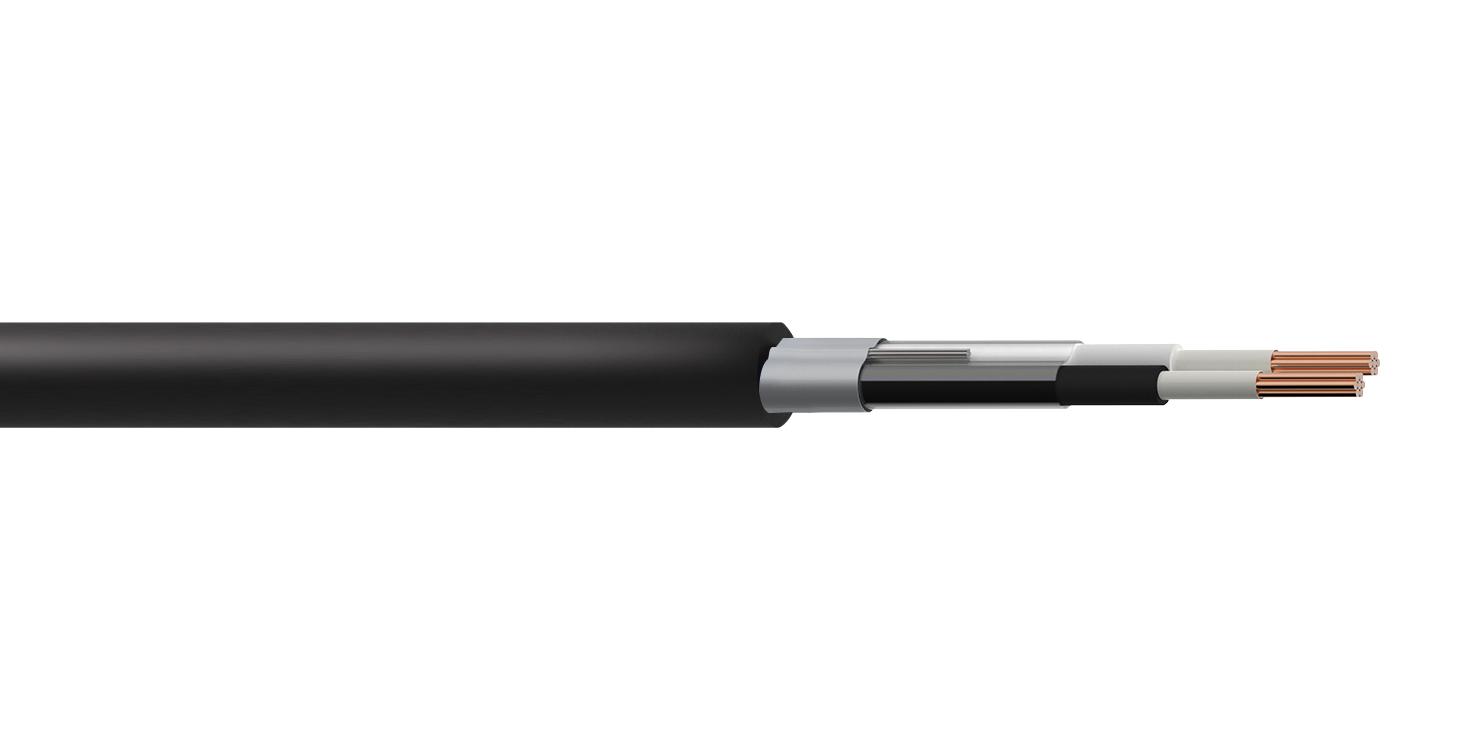

MULTICOMP-PRO PP002446 Industrial Communication Cable
These XLPE/CAM/LSZH cables are designed for electrical instrument circuits and communication in process plants, offering fire resistance, circuit integrity, and low smoke emissions in hazardous environments. Suitable for industrial installations, they feature multicore and multicallled configurations with flexible copper conductors and low smoke, zero halogen sheathing. Available in various sizes, these cables comply with BS EN standards, ensuring high performance, durability, and safety in demanding industrial and petrochemical applications where fire safety and reduced toxic fumes are critical.
MULTICOMP-PRO PP002446 Industrial Communication Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: -30°C to +90°C
- Minimum Bending Radius: 7.5 x overall diameter
- Core Identification: White and Black numbered
- Sheath Colour: Black
- Conductor: Class 5 Flexible Copper (0.5mm-0.75mm), Class 2 Stranded Copper (1mm and above)
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath Material: LSZH (Low Smoke Zero Halogen)
- Standards: BS EN 50288-1, BS EN 50288-7, HD 383, BS EN 50290-2, BS EN/IEC 60332-1, BS EN 61034-2, BS EN 50267-2-3
- Configuration: Multi-core, multi-pair, PIMF, TiMF
- Screening: Collectively and individually screened pairs with metal foil PiMF
- Nominal Cross-Sectional Area: 0.75mm² to 1.5mm²
- Nominal Diameter: 6mm to 11.8mm
- Max DC Resistance: 24.5Ω/km for 0.75mm², 12.1Ω/km for 1.5mm²
- Mutual Capacitance: 100pF/m for 0.75mm², 75pF/m for 1.5mm²
- Fire Performance: Meets IEC 60331-23, BS EN 50267 standards
- Weight: 50kg/km to 165kg/km depending on size and configuration
Buy the Multicomp XLPE/CAM/LSZH Cables – Reliable Communication and Fire-Resistant Wiring for Industrial Applications
Secure your industrial wiring with our high-quality multicomp XLPE/CAM/LSZH communication cables, designed for fire safety, low smoke emissions, and durability. Ideal for process plants, petrochemical facilities, and hazardous environments requiring circuit integrity and fire resistance. These cables feature multicore and multicallled configurations with flexible copper conductors and robust low smoke, zero halogen sheathing. Available in various sizes, they meet rigorous BS EN standards, ensuring performance, safety, and compliance in demanding industrial applications. Buy online now for reliable project execution.
Order your multicomp XLPE/CAM/LSZH communication cable today and ensure fire-safe, low smoke wiring solutions for your industrial projects.
