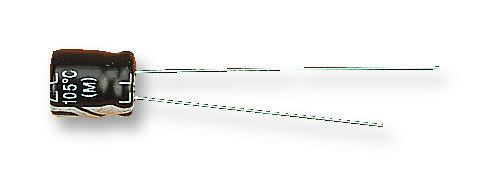

MULTICOMP PRO MCMHR16V106M4X7 Electrolytic Capacitor
The MCMHR16V106M4X7 is a high-quality electrolytic capacitor designed for compact electronic devices, boasting a short body length of only 7mm. Suitable for high-density applications including office machines, calculators, car stereos, and mini-audio sets, it operates within a temperature range of -40°C to +105°C and features a capacitance of 10uF at 16V. Its construction ensures excellent stability, low leakage current of < 0.01CV or 3uA, and resistance to circuit-board cleaning, making it ideal for space-constrained and demanding electronic environments.
MULTICOMP PRO MCMHR16V106M4X7 Electrolytic Capacitor Specifications:
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage Range: 6.3V DC to 683V DC
- Capacitance Range: 0.1pF to 470uF
- Capacitance Tolerance: +20% at +20°C, 120Hz
- Leakage Current: < 0.01CV or 3uA after two minutes
- Dissipation Factor at 120Hz, +20°C: Max. 0.2 for 10V, Max. 0.16 for 16V, Max. 0.14 for higher voltages
- Temperature Stability: -25°C / +20°C: 4, 3, 2, 2, 2, 2, 2; -40°C / +20°C: 8, 6, 4, 3, 3, 3, 3
- High Temperature Loading: After 1000 hours at +105°C, leakage current, capacitance, and dissipation factor remain within initial limits
- Shelf Life: 500 hours at +105°C without voltage, maintaining same post-test limits
- Solvent Proof: Can withstand circuit board cleaning with Freon TE, TES, ultrasonic, or steam within 5 minutes
Buy the multicomp Series MCMHR 16V10uF: 10uF 16V Electrolytic Capacitor
Enhance your electronic designs with our high-quality 10uF, 16V electrolytic capacitors from the multicomp Series. With a compact 7mm body, these capacitors are perfect for tight spaces in high-density applications, such as portable devices, auto electronics, and office equipment. They feature low leakage current, stable performance over wide temperature ranges, and excellent solvent resistance, ensuring durability and reliability in demanding environments. Purchase online today for efficient delivery and trusted performance in your next project.
Order your multicomp Series MCMHR 16V10uF capacitor today and give your high-density electronic projects the reliable, space-saving components they need.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMHR16V106M4X7?
You can click on the BUY or RFQ button to purchase MCMHR16V106M4X7 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR16V106M4X7?
You can download the MCMHR16V106M4X7 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMHR16V106M4X7?
MULTICOMP PRO
