MULTICOMP-PRO PP002561 Hook-Up Wire
This UL1569 style stranded hook-up wire is suitable for low-voltage, high-reliability electrical applications. Made from stranded tinned copper conductors with PVC insulation, it meets UL 105°C / 300V specifications and is UL recognized (UL file no. E352035). Available in multiple wire gauges from 16 to 30 AWG, it offers excellent flexibility, durability, and insulation protection. The wire is produced in various colors and lengths, ideal for control panel wiring, electronic projects, and industrial equipment, providing consistent performance and safety in demanding environments.
MULTICOMP-PRO PP002561 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or per metre
- AWG Range: 16 to 30 AWG
- Number of Strands: 65/0.16, 34/0.18, 21/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.127, 7/0.10 strands depending on gauge
- Diameter Conductor: 0.49 mm to 1.49 mm
- Insulation Diameter: 1.2 mm to 2.0 mm
- Conductor Resistance: Ranges from 14 to 381 Q/kM depending on gauge
- Color Options: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Grey, Purple, Orange
- Compliance: UL Recognized, RoHS, AWM compliant

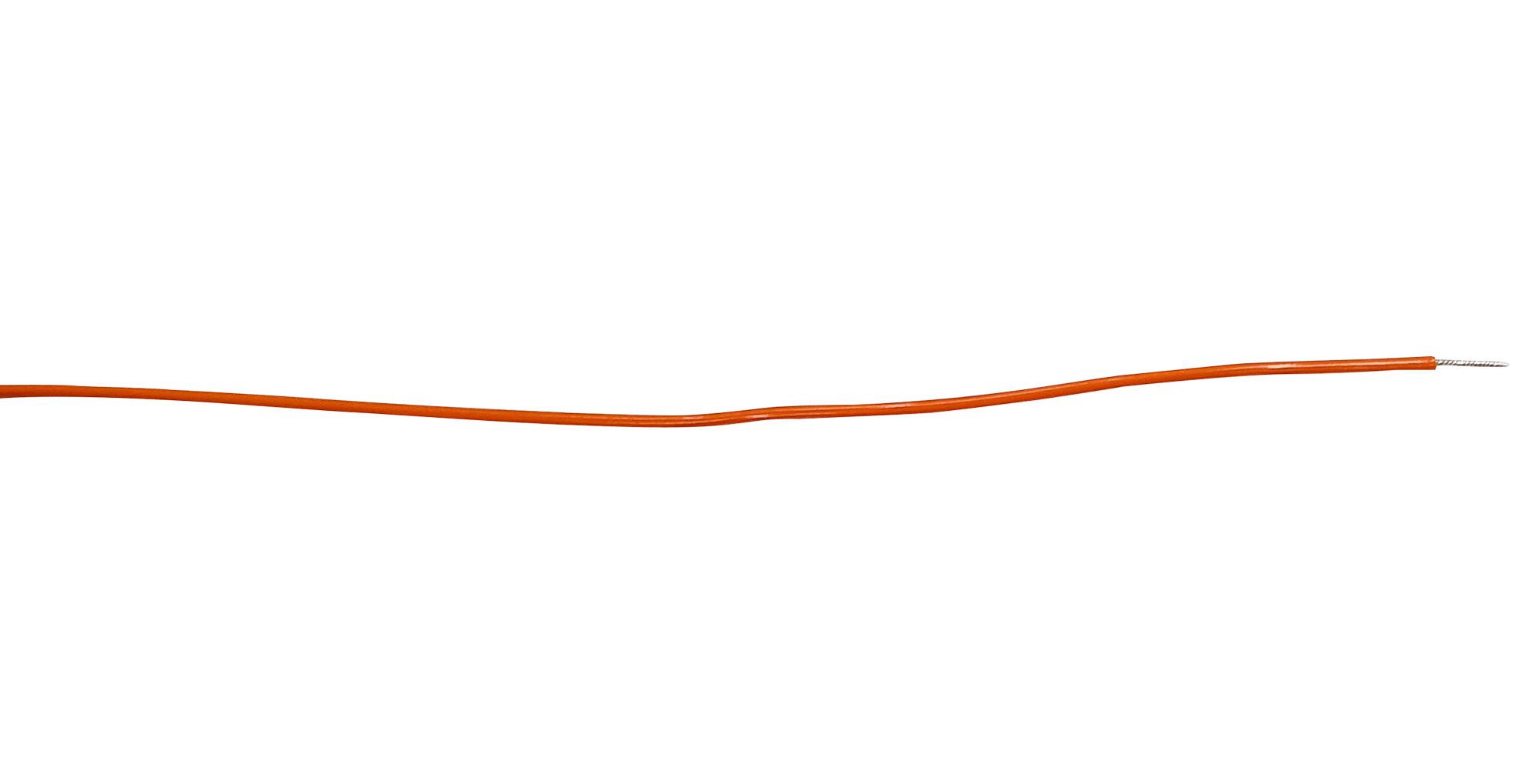

Buy the Buy UL Recognized Stranded Hook-Up Wire Part Number PP002561 Online
Secure your wiring needs with our UL1569 style stranded hook-up wire, featuring flexible stranded tinned copper conductors and durable PVC insulation. Rated for 105°C and 300V, it provides excellent performance in electronic and industrial applications. Available in multiple gauges and colors, the wire offers easy handling, high reliability, and UL recognition for safety compliance. Perfect for control panels, electronic devices, and wiring harnesses, order online today for fast delivery and quality assurance that keeps your projects running smoothly.
Order your UL1569 Series PP002561 stranded hook-up wire today and ensure reliable, flexible, and safe connections for your electronic or industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002561?
You can click on the BUY or RFQ button to purchase PP002561 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002561?
You can download the PP002561 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002561?
MULTICOMP-PRO
