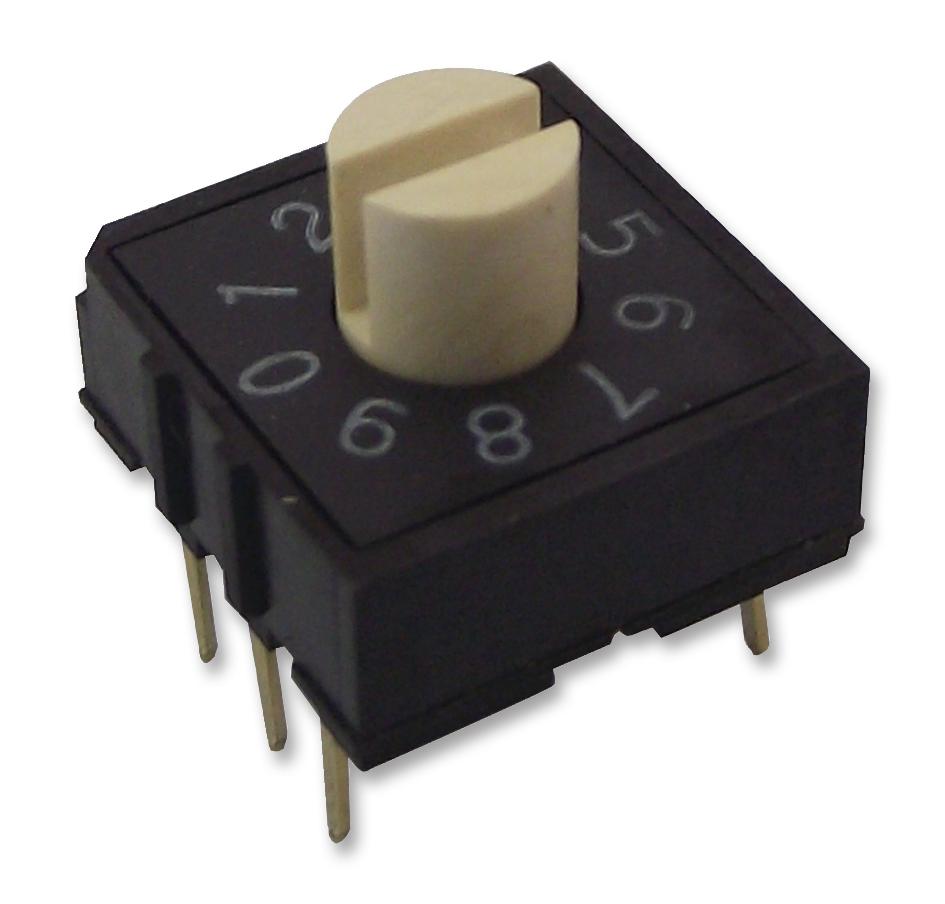

MULTICOMP PRO MCRH2MAF10RVB Rotary Switch
The product is a rotary switch designed for PCB mounting with multiple positions, including 10 to 16 positions options. Constructed with high-temperature thermoplastic housing and alloy copper contacts with gold plating, it supports an operating temperature from -25°C to +80°C. Rated for electrical life of 20,000 cycles, with a maximum switching voltage of 50V DC and a contact resistance of 100mΩ initially. Suitable for precision applications, it features robust mechanical design, RoHS compliance, and options for through-hole, right angle, or kink pin configurations, making it ideal for industrial control systems.
MULTICOMP PRO MCRH2MAF10RVB Rotary Switch Specifications:
- Mechanical Base & Cover: UL94V - 0 High-temp Thermoplastic
- Electrical Life: 20,000 steps
- Switching Rating: 24V DC, 25mA
- Contact Resistance: 100mΩ initial, 200mΩ final
- Insulation Resistance: 100MQ min. at 250V DC
- Voltage Proof: 250V AC for 1min.
- Operating Temperature: -25°C to +80°C
- Material: Alloy Copper contacts, gold plated
- Dimensions vary by model, with through hole and right angle options
- RoHS compliant and rated for RoHS applications
- Mechanical life: 20,000 cycles, high-temp thermoplastic housing
Buy the Multicomp Series Rotary Switch: MCRH2MAF10RVB
Enhance your industrial control systems with this high-quality rotary switch, offering 10 to 16 positions, durable thermoplastic housing, and gold-plated contacts for reliable performance. Designed for PCB mounting, it supports up to 20,000 cycles of mechanical life and withstands temperature ranges from -25°C to +80°C. Its RoHS compliance ensures environmental safety. Perfect for precise control applications, its robust construction and multiple configurations make it an essential component for automation, machinery, and electronic projects. Purchase online today for dependable, long-lasting performance.
Get Multicomp Series Rotary Switch MCRH2MAF10RVB today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRH2MAF10RVB?
You can click on the BUY or RFQ button to purchase MCRH2MAF10RVB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRH2MAF10RVB?
You can download the MCRH2MAF10RVB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRH2MAF10RVB?
MULTICOMP PRO
