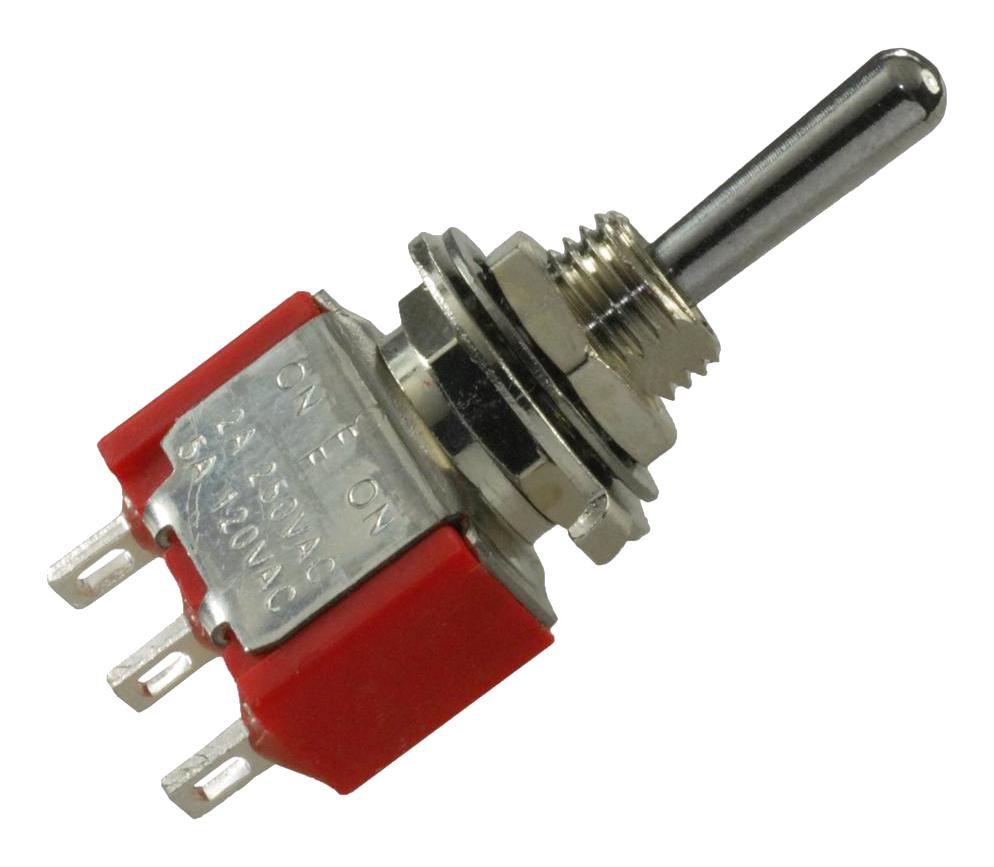

MULTICOMP PRO 1MS3T1B5M1QE 3-Way Toggle Switch
The MULTICOMP PRO 1MS3T1B5M1QE is a miniature toggle switch engineered for reliable performance in diverse industrial environments. Constructed with durable materials like diallyl phthalate (DAP) for the case and brass for the actuator and terminals, this switch offers a mechanical life of 40,000 make-and-break cycles. It boasts a contact resistance of 10mΩ max. and an insulation resistance of 1,000MΩ min., ensuring consistent and dependable operation. Available in various pole configurations (SP, DP, 3P, 4P) and switch functions (ON, OFF, MOM), the 1MS3T1B5M1QE provides flexibility for different circuit control needs. Its compact size and multiple mounting options, including bushing choices and termination options like solder lug and PC through-hole, make it a versatile solution for control panels, machinery, and other equipment requiring precise switching functionality.
MULTICOMP PRO 1MS3T1B5M1QE 3-Way Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1MS3T1B5M1QE MULTICOMP PRO 3-Way Toggle Switch | myMectronic
Securely purchase the MULTICOMP PRO 1MS3T1B5M1QE miniature toggle switch online for reliable performance and fast delivery.
