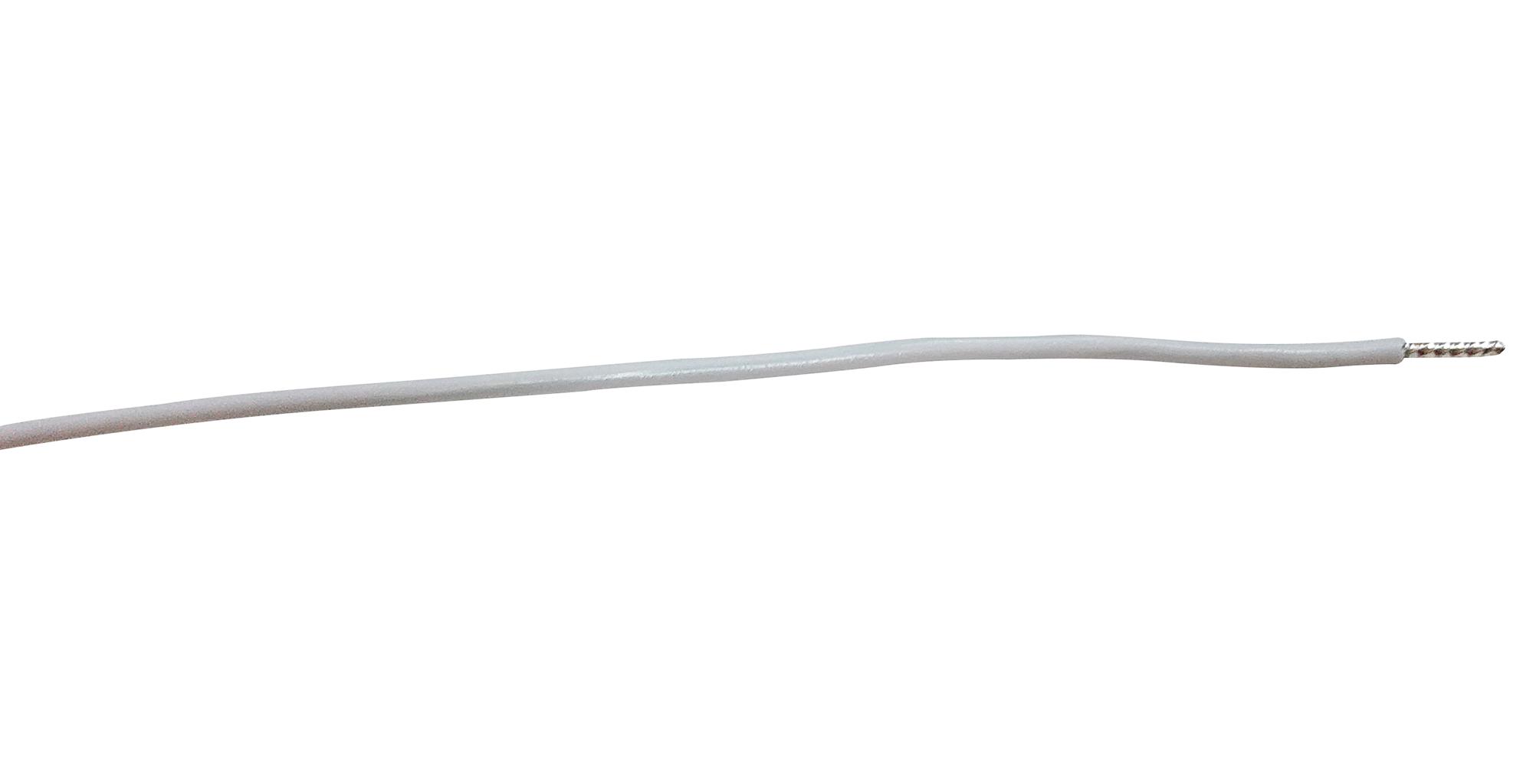

MULTICOMP-PRO PP002591 Hook-Up Wire
Pro-Power UL1061 Style Stranded Hook-Up Wire is a versatile, high-temperature wire rated at 280°C and 300V, ideal for electrical and electronic applications. Made with stranded tinned copper conductors and SR PVC insulation, it ensures durability and safety in demanding environments. Available in various colors and sizes, this wire comes on 305-meter reels or by the meter, providing flexible options for installers and manufacturers. Its robust construction makes it suitable for internal wiring, control circuits, and signal applications, meeting UL recognition standards for quality and safety.
MULTICOMP-PRO PP002591 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or per metre
- AWG Sizes: 18, 20, 22, 24, 26
- Conductor Strand Count: 34/0.18, 21/0.18, 11/0.16, 7/0.16, 7/0.16
- Conductor Diameter: 1.21mm (18 AWG), 0.95mm (20 AWG), 0.76mm (22 AWG), 0.61mm (24 AWG), 0.49mm (26 AWG)
- Insulation Diameter: 1.8mm (18 AWG), 1.5mm (20 AWG), 1.25mm (22 AWG), 1.15mm (24 AWG), 1.0mm (26 AWG)
- Wire Resistance at 20°C: Varies per AWG, e.g., 23.2 Ω/km (18 AWG), 36.7 Ω/km (20 AWG), 59.4 Ω/km (22 AWG), 94.2 Ω/km (24 AWG), 150 Ω/km (26 AWG)
- Available Colors: Black, Brown, Red, Yellow, Green/Yellow, Blue, Grey, White, Orange
- Compliance: UL Recognized, RoHS compliant
Buy the Pro-Power Series Hook-Up Wire: UL1061 Style 280°C 300V Tinned Copper
Enhance your electrical installations with our high-quality Pro-Power Hook-Up Wire, rated at 280°C and 300V, featuring stranded tinned copper conductors and SR PVC insulation. Available in multiple AWG sizes and colors, it is suitable for control panels, internal wiring, and signal circuits. The wire ships on 305-meter reels or by the meter, offering flexible procurement options. UL recognized and RoHS compliant, this durable wire provides reliable performance and safety in demanding environments, making it an ideal choice for professional electricians and electronics technicians seeking top-grade wiring solutions.
Order your Pro-Power Series UL1061 Hook-Up Wire today and ensure reliable, high-temperature internal wiring for all your electrical projects.
