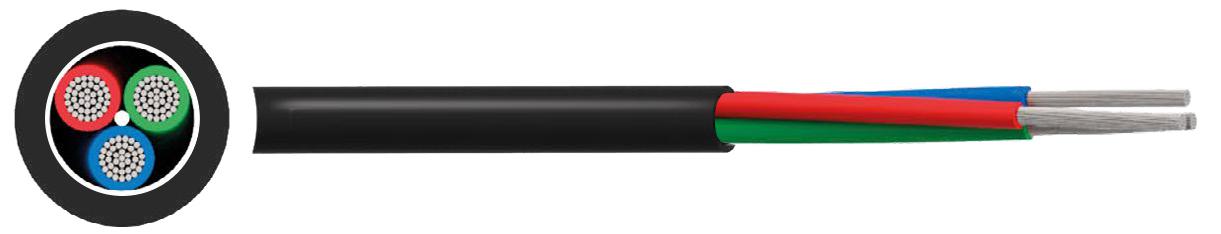

MULTICOMP PRO MP002389 Multicore Cable
These multicore flexible cables adhere to Defence Standard 61-12 Part 5, making them ideal for high-density wiring in aircraft, military vehicles, and electronic equipment. They feature PVC insulation and sheath, with options for tinned copper wire braid screening for electromagnetic interference protection. Designed for reliable performance at voltages up to 440V rms, these cables are suitable for demanding environments with temperature ranges from -30°C to +70°C. Available in black and grey colors, their robust construction ensures efficient current carrying capacity of 2.5 Amps, making them essential for military and aerospace applications.
MULTICOMP PRO MP002389 Multicore Cable Specifications:
- Voltage Rating: 440V rms at frequencies up to 1.6kHz
- Conductor: Class 5 flexible tinned copper, 0.5mm² (16/0.2mm)
- Insulation & Sheath: PVC (Polyvinyl Chloride)
- Screen: Tinned Copper Wire Braid (TCWB)
- Sheath Colour: Black, Grey
- Current Capacity: 2.5 Amps
- Temperature Range: Fixed: -30°C to +70°C; Flexed: -15°C to +70°C
- Minimum Bending Radius: 7.5 x overall diameter
- Dimensions vary per type, with overall diameters typically ranging from 5.5mm to 13.1mm
- Physical features include circular conductors, PVC insulation and sheathing, and optional screenings for EM interference shielding.
Buy the Multicomp Series 61-12 Multicore Cables: MP002389
Order Multicomp 61-12 Multicore Cables MP002389 online today and ensure your military, aerospace, or electronic projects benefit from superior wiring performance. These cables are engineered with PVC insulation, flexible tinned copper conductors, and protective braid screens, offering a reliable, durable, and versatile solution for high-density wiring needs. With a voltage rating of 440V rms and operational temperatures up to +70°C, they are suited for demanding environments. Purchase now for fast delivery and enjoy the confidence of using top-quality, standards-compliant multicore cables.
Buy Multicomp 61-12 Multicore Cables MP002389 now and experience unmatched reliability and high-performance wiring for military and aerospace applications.
