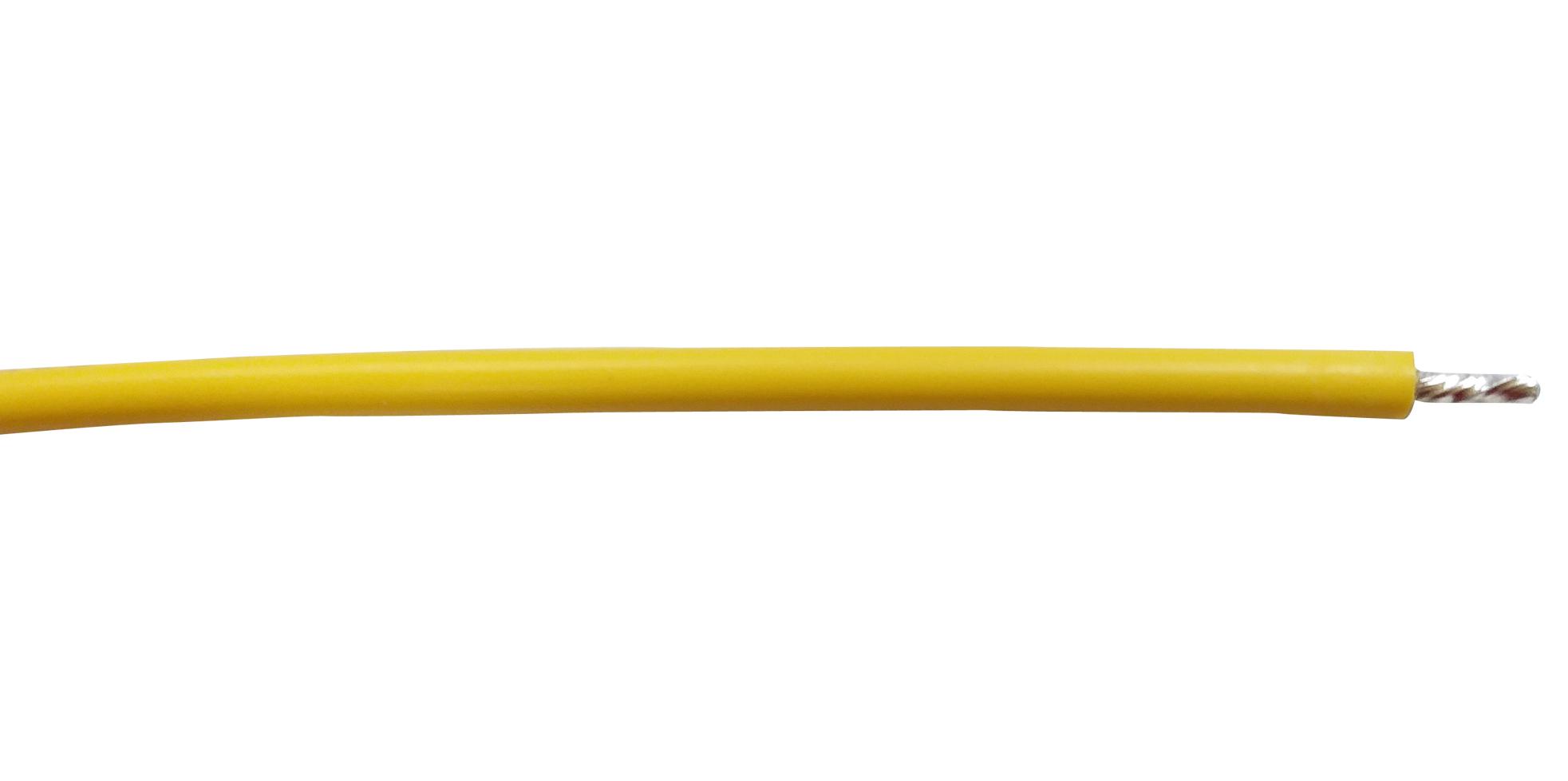

MULTICOMP PRO PP002592 Hook-Up Wire
Pro-Power UL1061 Style Stranded Hook-Up Wire is constructed with stranded tinned copper conductors and SR PVC insulation, rated for 280°C and 300V. Available in various sizes (20, 22, 24, 26 AWG) with multiple color options, this wire is ideal for high-temperature applications and precise electronic wiring. It comes on 305m reels or per metre. The wire features low resistance, robust insulation, and is UL Recognized, ensuring safety, durability, and compliance with industry standards for electrical insulation and conductor performance, suitable for complex wiring tasks.
MULTICOMP PRO PP002592 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or per metre
- Wire Sizes: 20 AWG, 22 AWG, 24 AWG, 26 AWG
- Conductor Resistance: 23.2 Q/kM (20 AWG), 36.7 Q/kM (18 AWG), 59.4 Q/kM (22 AWG), 94.2 Q/kM (24 AWG), 150 Q/kM (26 AWG)
- Conductor Strands: 34/0.18, 7/0.16, 11/0.16, 17/0.16
- Insulation Diameter: 1.8 mm (20 AWG), 1.5 mm (22 AWG), 1.15 mm (24 AWG), 1 mm (26 AWG)
- Color Options: Black, Brown, Red, Yellow, Green/Yellow, Blue, Grey, White, Purple, Orange
Buy the Buy UL Recognized Hook-Up Wire Part Number PP002592 Online
Order UL1061 style stranded hook-up wire online and experience fast delivery, industry-grade safety, and reliable performance for your electronic wiring projects. Crafted with stranded tinned copper conductors and SR PVC insulation, this wire supports high-temperature applications up to 280°C, rated at 300V. Available in multiple AWG sizes and colors, it’s suitable for complex electrical systems demanding durability and compliance with UL standards. Perfect for professional and industrial use, ensuring your projects meet safety and quality requirements with ease.
Get UL1061 hook-up wire today—engineered for high-temperature resilience and long-lasting electrical performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002592?
You can click on the BUY or RFQ button to purchase PP002592 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002592?
You can download the PP002592 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002592?
MULTICOMP PRO
