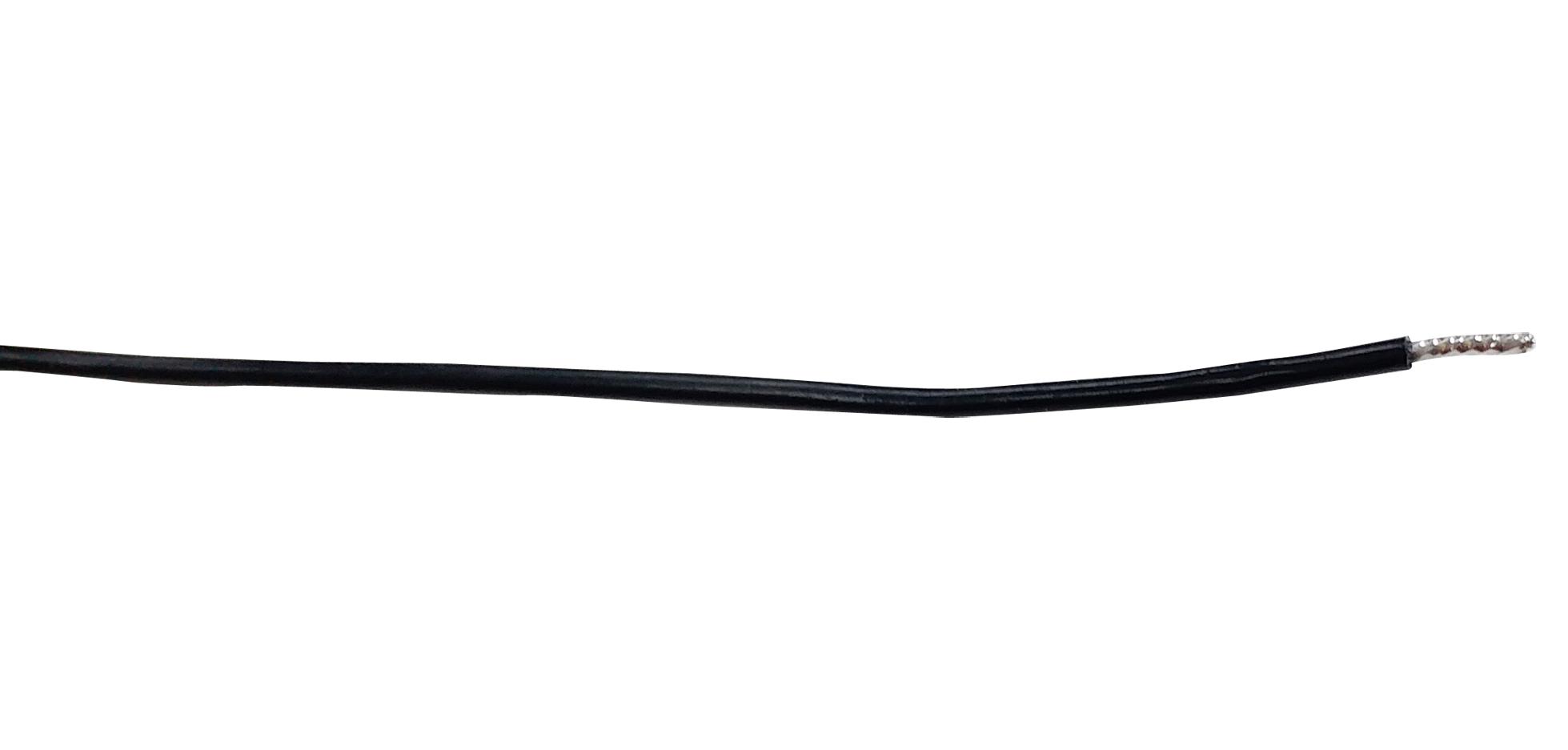

MULTICOMP PRO PP002593 Industrial Hook-Up Wire
Pro-Power UL1061 style stranded hook-up wire is designed for reliable electrical connections in industrial and electronic applications. Made from stranded tinned copper conductors with SR PVC insulation, it offers excellent flexibility, durability, and resistance to high temperatures up to 280°C. Rated at 300 volts, this wire is available in various gauges including 18, 20, 22, 24, and 26 AWG, with different conductor strand configurations. Supplied on 305m reels or per meter, it meets UL recognition standards, ensuring safety and compliance for automation and control systems.
MULTICOMP PRO PP002593 Industrial Hook-Up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: 305m reel or per metre
- AWG Sizes: 18, 20, 22, 24, 26
- Strands per AWG: 34/0.18, 21/0.18, 17/0.16, 11/0.16, 7/0.16
- Conductor Diameter: 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG)
- Insulation Diameter: 1.8 mm (18 AWG), 1.5 mm (20 AWG), 1.25 mm (22 AWG), 1.15 mm (24 AWG), 1 mm (26 AWG)
- Resistance: 23.2 Q/kM (18 AWG), 36.7 Q/kM (20 AWG), 59.4 Q/kM (22 AWG), 94.2 Q/kM (24 AWG), 150 Q/kM (26 AWG)
- Temperature Resistance: Up to 280°C
- UL Recognition: File no. E352035
Buy the Pro-Power PP002593 – Reliable industrial hook-up wire for electrical systems
Order Pro-Power industrial hook-up wire online today for your electrical, automation, or control projects. Designed with stranded tinned copper and SR PVC insulation, it provides excellent flexibility, heat resistance up to 280°C, and a rated voltage of 300V. Available in multiple gauges including 18, 20, 22, 24, and 26 AWG, with various conductor configurations, ensuring compatibility for a wide range of applications. Delivered on reels or by the meter, this UL-recognized wire guarantees safety, durability, and compliance in your installations.
Get Pro-Power PP002593 today—built for reliability in industrial wiring and automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002593?
You can click on the BUY or RFQ button to purchase PP002593 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002593?
You can download the PP002593 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002593?
MULTICOMP PRO
