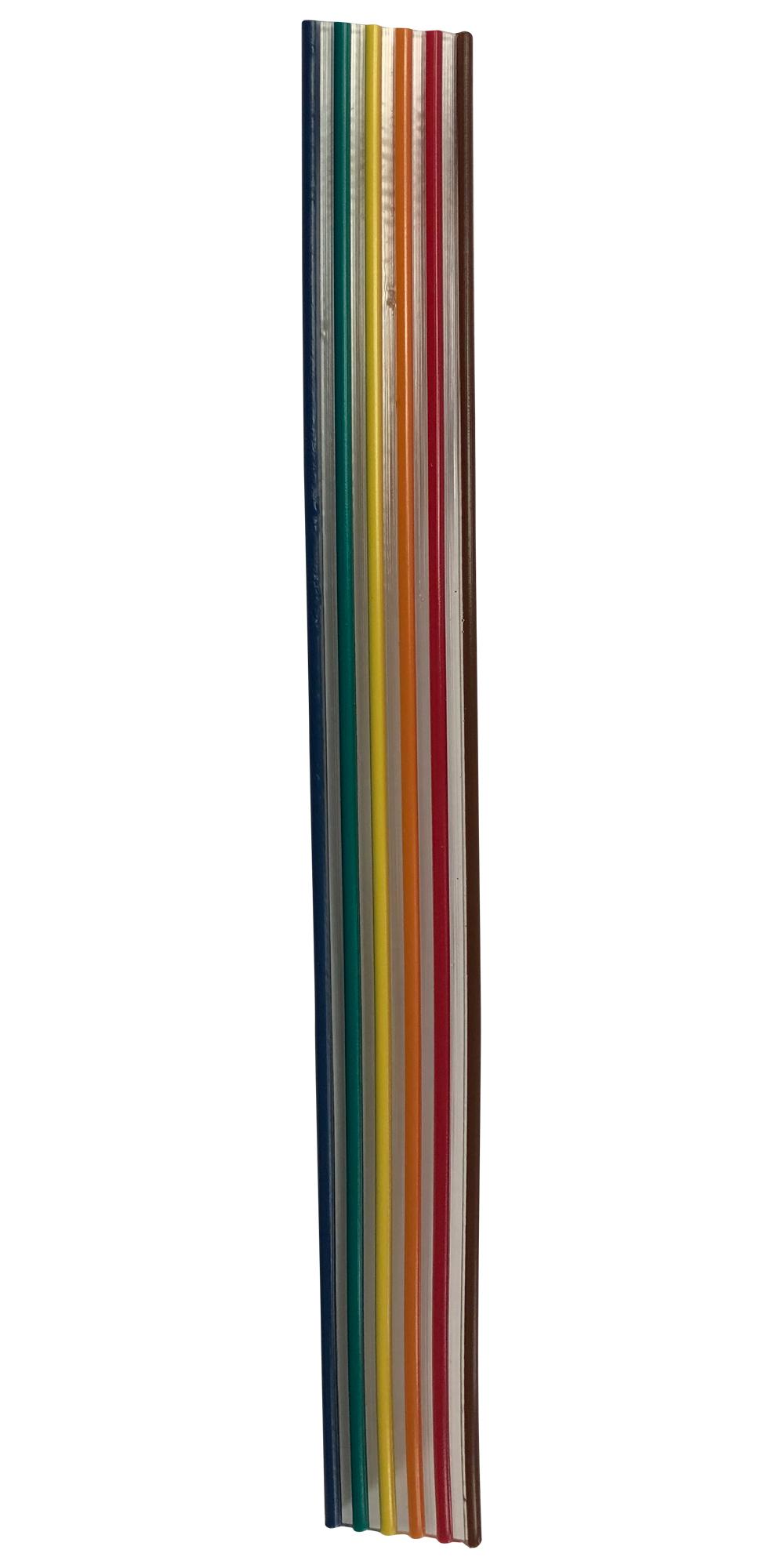

MULTICOMP PRO PP002606 Ribbon Cable
This 24AWG ribbon cable features a 2.54mm pitch and is suitable for various electronic applications requiring reliable data transmission. Constructed with stranded tinned copper conductors, it offers excellent conductivity and flexibility. The cable has a PVC insulation material available in multiple colors, including brown, red, orange, yellow, green, blue, purple, grey, white, and black, with an overall diameter of approximately 21.1mm. It is RoHS compliant and rated for 300V, with an insulation resistance of 2.5MQ/KFT at 20°C. The cable is also available in lengths of 50m or per meter for versatile use.
MULTICOMP PRO PP002606 Ribbon Cable Specifications:
- Rated Voltage: 300V
- Conductor Resistance: 8.90/KM At 20°C
- Insulation Resistance: 2.5MQ/KFT At 20°C
- Temperature Range: 1-20°C to +105°C
- Conductor Size: 24AWG
- Construction: 7/0.2+0.008mm
- Material: Stranded Tinned Copper
- Insulation Material: PVC, Diameter: 21.1±0.1mm, Multiple colors
- Sheath Material: PVC
- Overall Diameter: 21.4±0.15mm * (N-1)*2.54+1.4+0.4mm
- Humidity Range: 60% to 70%
- Available Lengths: 50m or per meter
Buy the Premier Farnell Series Ribbon Cable: PP002606
Order the Premier Farnell PP002606 ribbon cable online today for dependable performance in electronic assemblies. With 24AWG stranded tinned copper conductors and PVC insulation in multiple colors, it ensures excellent conductivity, flexibility, and durability. Rated for 300V, with an insulation resistance of 2.5MQ/KFT at 20°C, this cable is ideal for versatile wiring applications. Available in 50m lengths or per meter, it provides flexibility for various project needs, supporting efficient and precise electronic device assembly.
Buy Premier Farnell PP002606 ribbon cable now and experience reliable electronic connections with high-quality insulation and multiple color options.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002606?
You can click on the BUY or RFQ button to purchase PP002606 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002606?
You can download the PP002606 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002606?
MULTICOMP PRO
