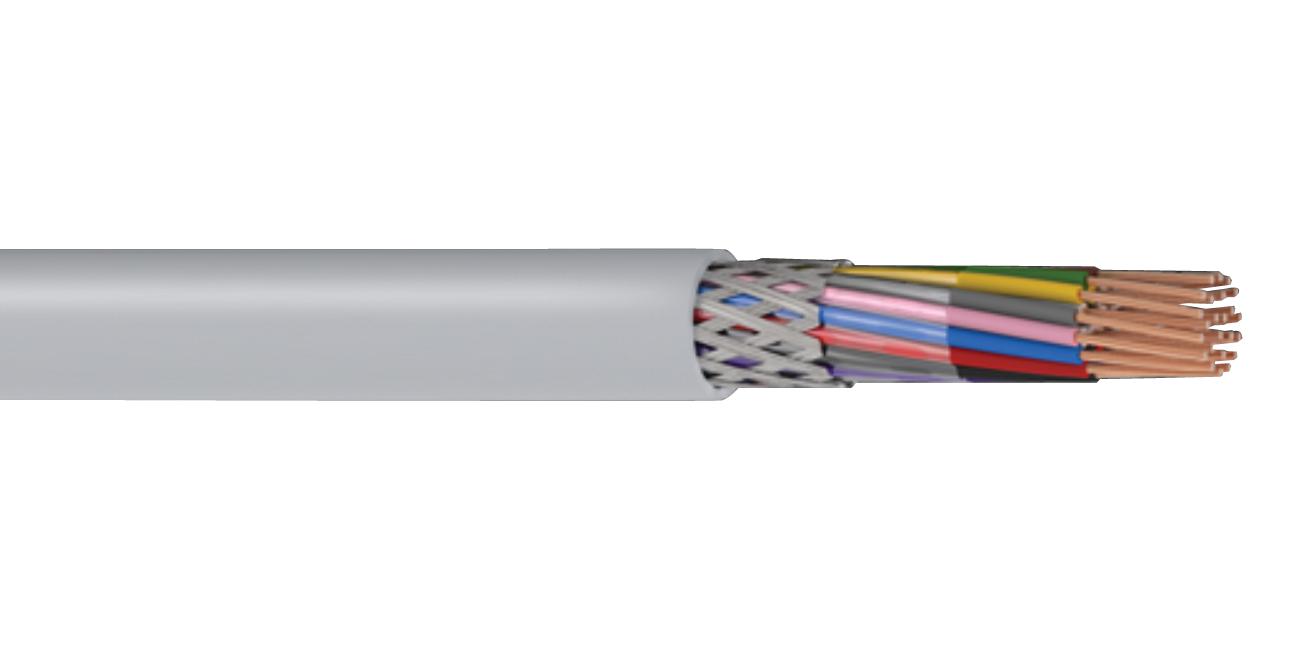

MULTICOMP-PRO PP002614 Signal Cable
LiYCY multicore cable is designed for signal transmission in electronic applications such as computer systems and process control units, offering high electromagnetic compatibility and RoHS compliance. Constructed with fine stranded bare copper conductors, PVC insulation and sheath, and tinned copper wire braid screening, it supports voltages up to 250V and test voltages of 2.1kV. Available in multiple core configurations from 2 to 7 cores, with diameter ranges from 5.0 to 6.4 mm and weights up to 67 kg/km. Suitable for fixed installations with a minimum bending radius of 6 times overall diameter, complying with VDE and IEC standards.
MULTICOMP-PRO PP002614 Signal Cable Specifications:
- Voltage Rating: 250V
- Test Voltage: 2.1kV
- Temperature Range: -30°C to +180°C fixed, -5°C to +70°C during installation
- Minimum Bending Radius: 6 x overall diameter
- Core Identification: White, Brown, Green, Yellow, Grey, Pink, Blue depending on core count
- Construction: Conductor - Class 5 Fine Stranded Bare Copper; Insulation & Sheath - PVC; Screen - Tinned Copper Wire Braid
- Outer Diameter: 5.0 to 6.4 mm depending on core and cross-sectional area
- Weight: 46 to 67 kg/km based on model
- Standards: VDE 0482-332-1-2/IEC 60332-1-2, EN 60811-2-1
Buy the Multicomp Series LiYCY Signal Cable: PP002614
Order the Multicomp Series LiYCY signal cable online now to ensure high-quality transmission in your electronic applications. With PVC insulation, fine stranded copper conductors, and comprehensive screening, this cable guarantees reliable performance for signal transmission between electronic devices and control systems. Available in a variety of core configurations from 2 to 7 cores, with a wide range of diameters and weights to suit your needs. Easy to install and RoHS compliant, this cable offers excellent electromagnetic compatibility, making it ideal for industrial and electronic use. Buy online today for fast delivery and quality assurance.
Get Multicomp Series LiYCY signal cable today—built for signal clarity and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002614?
You can click on the BUY or RFQ button to purchase PP002614 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002614?
You can download the PP002614 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002614?
MULTICOMP-PRO
