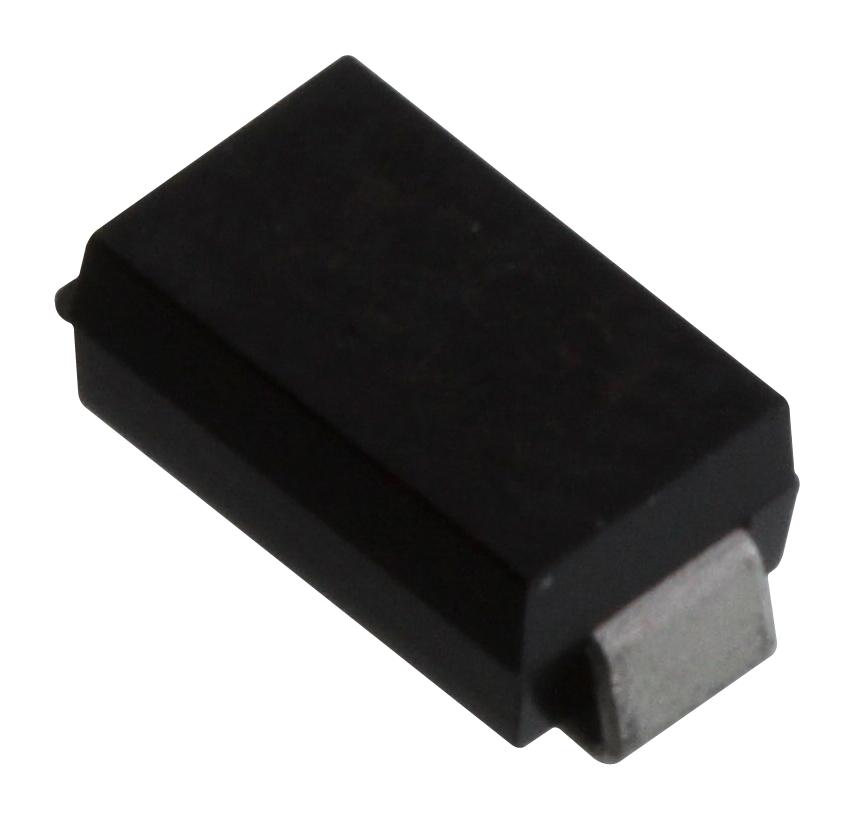

MULTICOMP PRO SMAJ150CA Transient Voltage Suppressor
This surface mount transient voltage suppressor provides reliable protection for electronic circuits with a maximum breakdown voltage of 150V and a peak power dissipation of 400W. Suitable for both unidirectional and bidirectional applications, it features fast response times less than 1.0ns for unidirectional and under 5.0ns for bidirectional models. Constructed with UL 94V-0 plastic, it ensures safety and durability, with a reverse voltage range of 5 to 170V and a maximum operating temperature of +150°C. Its compact molded plastic case makes it ideal for surface mounting in various electronic devices, providing efficient transient suppression over a broad voltage range.
MULTICOMP PRO SMAJ150CA Transient Voltage Suppressor Specifications:
- Surface mount design for easy installation
- Maximum breakdown voltage: 150V
- Peak power dissipation: 400 Watts
- Reverse voltage range: 5 to 170V
- Maximum operating temperature: +150°C
- UL recognition 94V-0 plastic case
- Fast response time: less than 1.0ns (uni-directional), less than 5.0ns (bi-directional)
- Polarity: Cathode band signifies unidirectional, no band for bidirectional
- Weight: 0.053 grams, 0.002 ounces
- Typical IRless: less than 1pA above 10V
- Peak surge current: 40A (8.3ms single half-sine wave)
- Maximum steady-state power at 75°C: 400W
- Storage temperature range: -55°C to +175°C
- Operating temperature range: -55°C to +150°C
Buy the Multicomp Series TVS: SMAJ150CA Transient Voltage Suppressor
Secure your electronic circuits with the Multicomp SMAJ150CA transient voltage suppressor. Featuring a 150V breakdown voltage, 400W peak power, and UL 94V-0 plastic case, it ensures fast response times less than 1ns for unidirectional and under 5ns for bidirectional variants. Its surface mount design makes installation simple, providing reliable transient suppression across a broad voltage range. Perfect for protecting sensitive components from voltage spikes, this compact device guarantees durability and performance in demanding electronic applications. Order online today and keep your circuits safe and functional.
Buy Multicomp SMAJ150CA now and experience unmatched reliability and fast transient suppression for your electronic protection needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMAJ150CA?
You can click on the BUY or RFQ button to purchase SMAJ150CA from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMAJ150CA?
You can download the SMAJ150CA datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMAJ150CA?
MULTICOMP PRO
