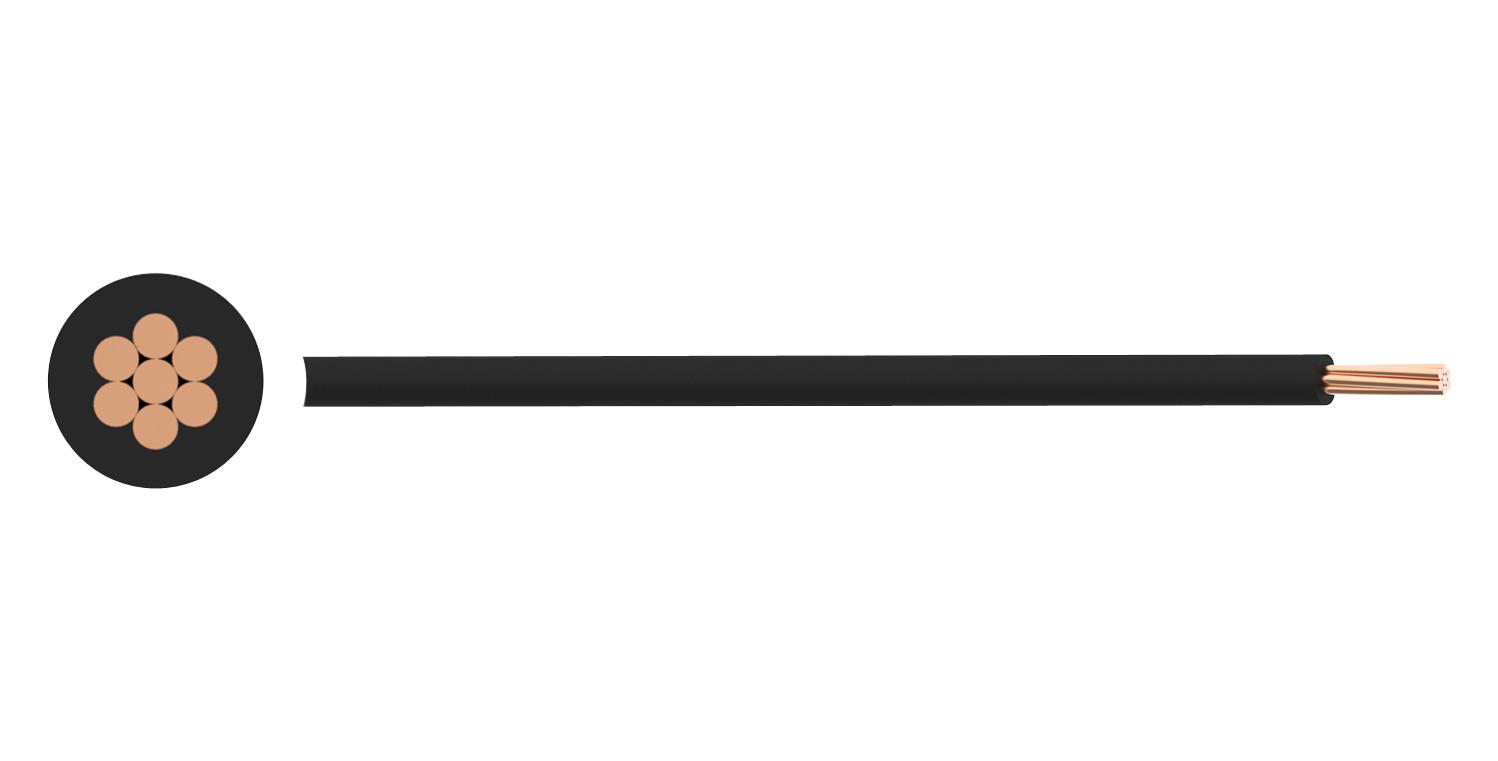

MULTICOMP-PRO PP6491X150MMBLK PVC Insulated Power Wire
6491X HO7V-R PVC insulated wire is suitable for power and lighting circuits, internal wiring of appliances, and building installations. Constructed with annealed copper conductors and PVC Type TI1 insulation, it supports voltages up to 450/750V and temperature ratings of -15°C to +70°C. Ideal for semi-flush, embedded, and closed ducts, the wire features various colors like black, blue, brown, green/yellow, and grey, with a minimum bending radius of 3 times the diameter. Compliant with BS EN 50525-2-31 and BS EN/IEC 60332-1-2 standards, it ensures safety and durability in industrial wiring applications.
MULTICOMP-PRO PP6491X150MMBLK PVC Insulated Power Wire Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: -15°C to +70°C
- Conductor: Class 2 stranded annealed copper to BS EN 60228
- Insulation: PVC Type TI1 according to BS EN 50363
- Minimum Bending Radius: 3 x overall diameter
- Color Options: Black, Blue, Brown, Green/Yellow, Grey
- Nominal Cross Sectional Area: 1.5 mm², 2.5 mm², 4.0 mm²
- Number of Strands: 7 x 0.53mm for 1.5mm², 7 x 0.67mm for 2.5mm², 7 x 0.85mm for 4mm²
- Overall Diameter: 07 mm for 1.5mm², 08 mm for 2.5mm² and 4mm²
- Weight: 22 kg/km for 1.5mm², 32 kg/km for 2.5mm², 50 kg/km for 4mm²
Buy the Multicomp PVC Insulated Conduit Wire – Reliable Power and Lighting Wiring for Industrial Applications
Purchase Multicomp PVC insulated power and lighting wire online today and ensure your electrical installations are safe, durable, and compliant with industry standards. Designed for building wiring, appliance internal wiring, and conduit systems, this versatile wire features high-quality copper conductors and PVC insulation, supporting voltages up to 450/750V and temperatures up to +70°C. Available in multiple colors including black, blue, brown, green/yellow, and grey, it offers a minimum bending radius of 3 times the diameter. Ideal for both commercial and industrial electrical projects.
Buy Multicomp PVC insulated conduit wire now and experience unmatched reliability and performance for your industrial wiring needs.
