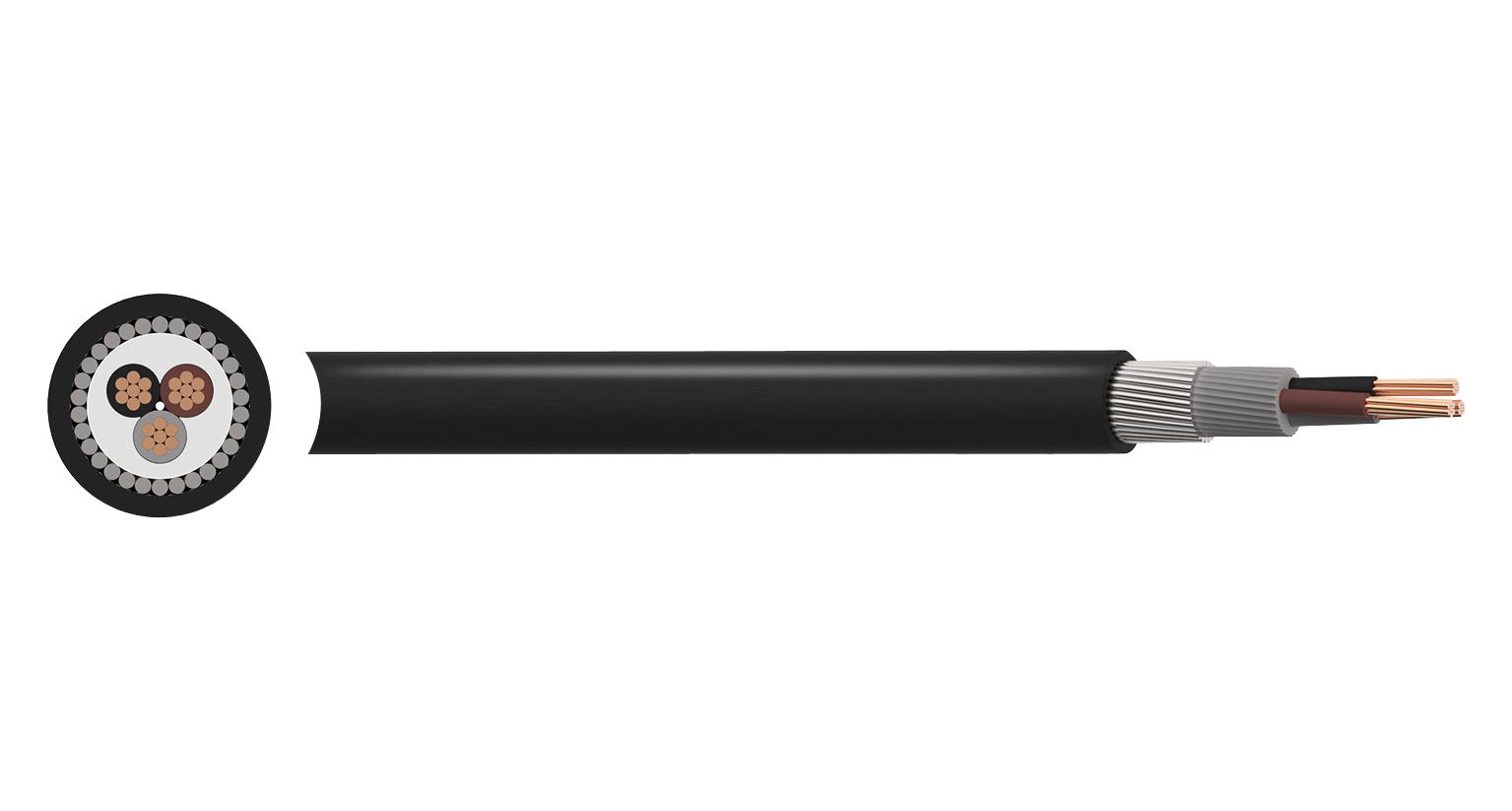

MULTICOMP PRO PP6942X15MMXLPESWAPVC Power Cable
The Cable Pro-POWER features multi-core PVC insulation with steel wire armouring, designed for power networks, underground, outdoor, and indoor applications in cable ducting. Constructed with stranded copper conductors and XLPE insulation for enhanced durability, it complies with BS 5467 and IEC standards. Suitable for fixed temperature ranges from -25°C to +90°C, it offers reliable current carrying capacity, excellent resistance to mechanical stress, and flexible installation options. The cable's black PVC sheath ensures environmental protection and versatility across various electrical environments.
MULTICOMP PRO PP6942X15MMXLPESWAPVC Power Cable Specifications:
- Voltage Rating: 600/1000V
- Temperature Rating: -25°C to +90°C
- Conductor: Class 2 stranded copper
- Insulation: XLPE
- Bedding: PVC
- Armour: Steel Wire Armour (SWA)
- Sheath: PVC
- Core Identification: Brown & Blue for 2 cores, Brown/Black/Grey for 3-4 cores
- Sheath Colour: Black
- Min. Bending Radius: 6 x overall diameter
- Conductors: Wires in copper, with resistances of 12.1 Ω/km at 20°C for 1.5mm²
- Dimensions: Approximate diameter 6.0 mm for 1.5mm², weight ranges from 302 to 568 kg/km
- Standards: BS 5467, BS EN/IEC 60502-1
- Temperature ratings for fixed installation, suitable for indoor and outdoor environments.
Buy the Buy Premier Farnell Cable Pro-POWER Part Number PP6942X15MMXLPESWAPVC Online
Secure your electrical installation with the premium Power Cable featuring steel wire armour and XLPE insulation, ideal for outdoor and underground power networks. This durable cable ensures safety and reliability in demanding environments, with excellent resistance to mechanical stresses and temperature variations. Perfect for indoor, outdoor, and underground applications, it adheres to international standards. Purchase online now to benefit from fast delivery, competitive pricing, and trusted quality, ensuring your project’s success with premium electrical cables designed for long-term performance.
Order your Premier Farnell SeriesPP6942X15MMXLPESWAPVC steel wire armoured power cable today and ensure reliable, durable electrical connections for your projects.
