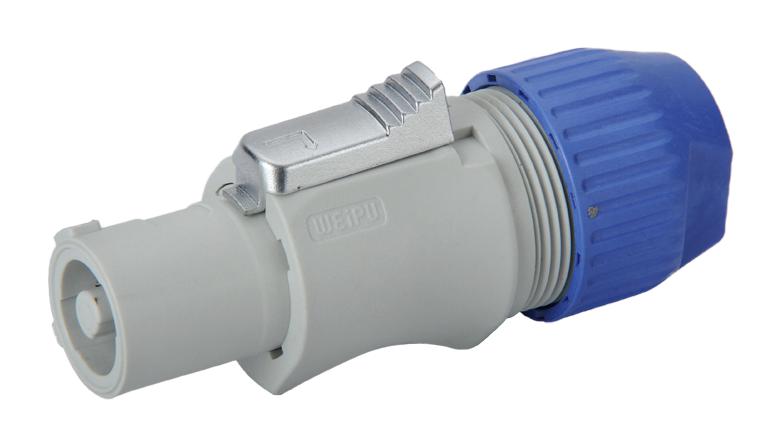

MULTICOMP-PRO MP004800 3P Power Connector
The MP HPC series features a locking bayonet-style connector for secure, reliable connections in industrial automation. It includes a sliding locking lever for easy one-handed operation during connection and disconnection. The plug has screw-style terminals suitable for cables with 9-13mm outer diameter, while the panel mount receptacle features 3/16-inch flat tab terminals for simple installation. Rated IP65 for weather resistance, the connectors operate at 20A and 250VAC, making them ideal for automation, process control, medical, security, and industrial applications. This robust design ensures long-lasting performance in demanding environments.
MULTICOMP-PRO MP004800 3P Power Connector Specifications:
- Shell material: Plug: Nylon PA66, Socket: PC
- Insert material: PPS, max temperature 260°C
- Contact material: Brass with silver plating
- Rated current: 20A
- Rated voltage: 250VAC
- Test voltage: 2500V for 1 min
- Insulation resistance: 2000MQ
- Mating cycle: 1000
- Temperature range: -40°C to +85°C
- IP rating: IP65
- Cable outer diameter range: 9-13mm
- Termination: Receptacle with 3/16" flat tab terminals, plug with screw terminals
- Locking mechanism: Bayonet coupling
- Mating connector: 3P configuration
- Color options: Blue or Gray
- Application: Industrial automation, control systems, medical, security, test equipment
Buy the Multicomp Pro MP004800 – Reliable 3P Power Connector for Industrial Applications
Order the Multicomp Pro 3P Power Connector MP004800 now for dependable power connections in industrial automation. Featuring IP65 weather resistance and a bayonet locking system, this connector ensures secure and reliable operation in demanding environments. Easy to install with screw terminals and flat tab connections, it is suitable for cables with 9-13mm outer diameter. Built to withstand temperatures from -40°C to +85°C, rated at 20A and 250VAC, this connector is perfect for control panels, security systems, and machine automation. Purchase online today for fast delivery and long-lasting performance.
Get Multicomp Pro MP004800 today—built for durability in industrial automation and secure connections.
