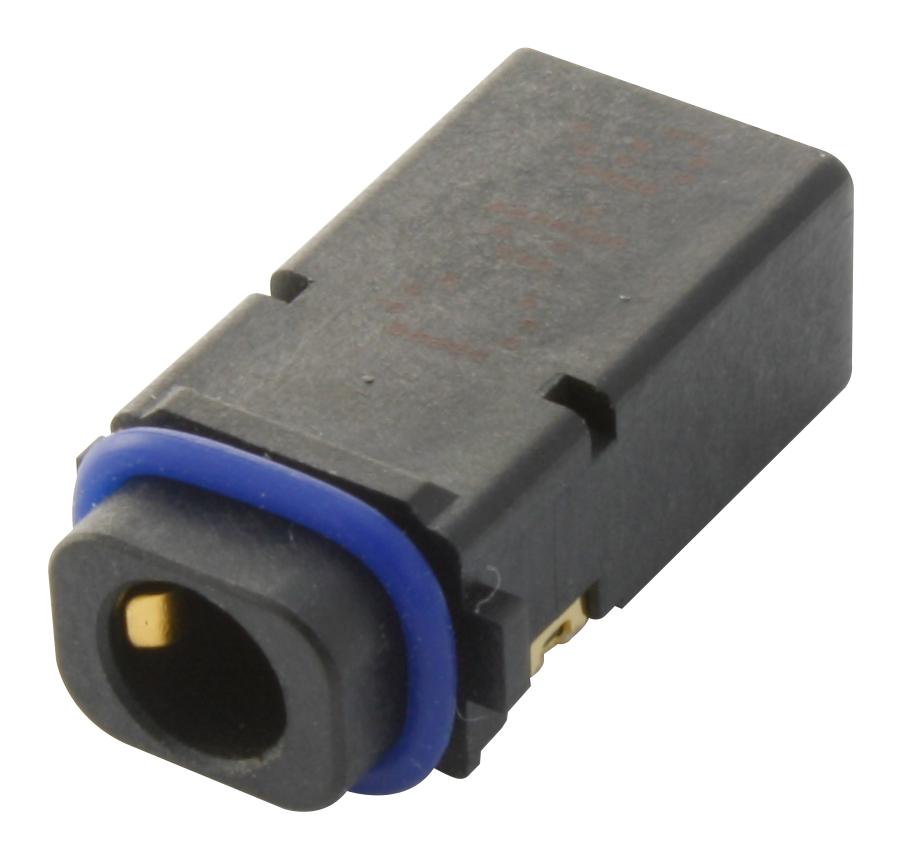

MULTICOMP PRO PS000001 Waterproof Audio Jack
The waterproof IPX5/IPX7 rated compact 3.5mm 4-pole SMT audio jack from Pro Signal is designed for portable audio applications. It features a low-profile, durable construction with a black UL94V-0 rated housing and a blue epoxy oval ring. The device uses gold-flashed copper alloy springs for the ring, tip, and earth contacts, and a gold-flashed brass terminal, all over a nickel plate. It offers high insulation resistance (500V DC), low contact resistance (30mΩ), and is voltage-proof up to 500V AC for one minute. The insertion and withdrawal force ranges from 0.6 to 2 kgf, with a housing strength of up to 50N. Ideal for rugged, waterproof audio connections with a 12-month limited warranty.
MULTICOMP PRO PS000001 Waterproof Audio Jack Specifications:
- Housing Material: UL94V-0 Black Plastic
- Contact Material: Copper Alloy with Gold Flashed Plating
- Ring Spring: Copper Alloy with Gold Flashed Plating
- Tip Spring: Copper Alloy with Gold Flashed Plating
- Earth Spring: Copper Alloy with Gold Flashed Plating
- Voltage Resistance: 500V AC for 1 minute
- Contact Resistance: ≤30mΩ
- Insulation Resistance: 500V DC
- Insertion/Withdrawal Force: 0.6 to 2 kgf
- Housing Strength: Up to 50N
- Waterproof Rating: IPX5/IPX7 according to JIS Standard
- Dimensions: Compact profile, with mounting options suitable for SMT assembly
- Application: Portable audio devices, waterproof audio connectors, rugged portable electronics
Buy the Pro Signal Series Waterproof 3.5mm 4-Pole Audio Jack: PS000001
Secure your portable audio projects with the reliable waterproof 3.5mm 4-pole audio jack from Pro Signal. Featuring IPX5/IPX7 waterproof ratings, its durable construction with gold-plated contacts ensures superior sound quality and corrosion resistance. Ideal for rugged environments, it provides a secure connection with low contact resistance and withstands harsh conditions thanks to its high housing strength. Easy to install with SMT mounting, this compact jack guarantees long-lasting performance. Purchase online today for dependable, waterproof audio connections across various portable devices with confidence and ease.
Order your Pro Signal Series waterproof 3.5mm 4-Pole Audio Jack today and enhance your portable audio projects with durable, waterproof connectors.
