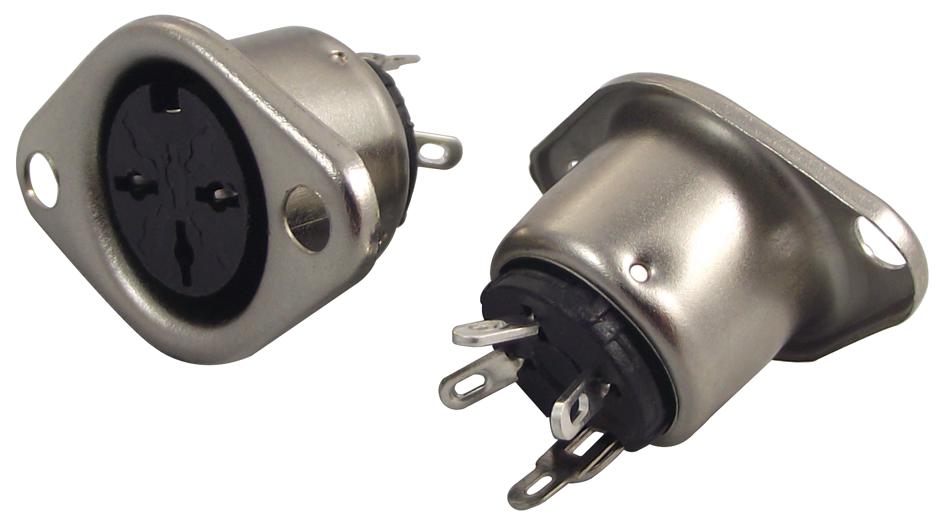

MULTICOMP PRO PS000056 DIN Shielded Jack
This product is a shielded DIN Jack with a plastic handle, available in 3, 5, and 7-pin configurations, designed for reliable electrical connections in industrial applications. Constructed with nickel-plated materials and P.B.T insulators, it offers excellent resistance to wear and corrosion. The DIN Jack supports a rated voltage of 100V AC at 1A, with a dielectric strength of 250V AC for one minute, ensuring safety and durability. Suitable for high cycle life with an estimated 5,000 to 10,000 cycles, it is ideal for automation, control systems, and electronics where robust, shielded connections are required.
MULTICOMP PRO PS000056 DIN Shielded Jack Specifications:
- Materials: Socket Case - SPCC-SD Nickel Plated, Insulator - P.B.T, Earth Terminal - PBSR-H, Contact Pin - Brass Nickel Plated
- Rating: 100V AC at 1A, 12V DC at 2A max
- Insulation Resistance: Over 100MQ at 500V DC
- Dielectric Strength: 250V AC for one minute
- Voltage Withstanding: 1000V AC for one minute
- Insertion Force: 4 kg Max
- Withdrawal Force: 1-3.5 kg
- Contact Resistance: 20mΩ Max
- Operation Temperature: 5°C to 70°C
- Life Cycle: 5,000 to 10,000 times
- Dimensions: Millimeters (specific dimensions vary with model)
Buy the Multicomp Series DIN Jack Shielded: PS000056
Experience the reliability of the Multicomp Series DIN Jack Shielded, designed for industrial applications requiring robust, shielded electrical connections. Constructed with high-quality nickel-plated materials and durable P.B.T insulators, it ensures long-lasting performance under demanding conditions. Suitable for automation and control systems, it supports a voltage of 100V AC at 1A and features excellent dielectric strength and high cycle life. Purchase online today for dependable, professional-grade connections in your control and electronics projects.
Get Multicomp Series DIN Jack Shielded today—built for durability and reliable connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PS000056?
You can click on the BUY or RFQ button to purchase PS000056 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PS000056?
You can download the PS000056 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PS000056?
MULTICOMP PRO
