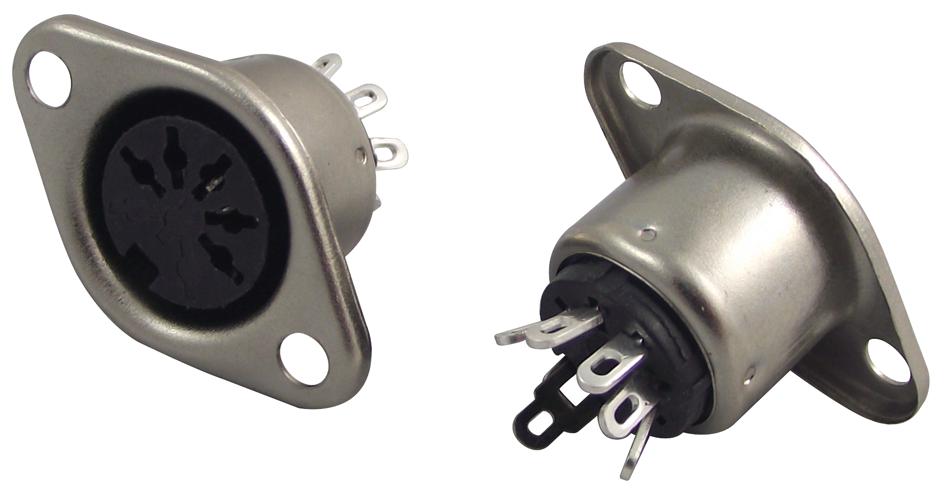

MULTICOMP PRO PS000057 DIN Connector
This shielded DIN jack with 5 pins features a robust plastic handle for easy connection and disconnection in industrial automation and electronic control systems. Made from durable materials including nickel-plated brass contacts, PBT insulator, and steel socket case, it ensures reliable performance with an insulation resistance of over 100MΩ at 500V DC. It withstands voltages up to 100V AC at 1A and 250V AC for one minute, supporting 5,000 to 10,000 cycles for long-term industrial use. Its compact design fits standard DIN rails, ideal for secure, vibration-resistant connections in automation environments.
MULTICOMP PRO PS000057 DIN Connector Specifications:
- Socket Case Material: SPCC-SD 0.4/ Nickel Plated
- Insulator Material: PBT
- Earth Terminal Material: PBSR-H 0.25
- Contact Pin Material: Brass 0.7/ Silver Plated
- Voltage Withstanding: 250V AC for one minute
- Insulation Resistance: Over 100MΩ at 500V DC
- Rating: 100V AC at 1A or 12V DC 2A Max.
- Operation Temperature: 5°C to 70°C
- Durability: 5,000 to 10,000 mating cycles
- Insertion Force: 180 N
- Withdrawal Force: 20 mΩ Max.
- Dimensions: Millimetres (standard DIN size)
Buy the Buy Multicomp DIN Plug with Plastic Handle Part Number PS000057 Online
Order the Multicomp DIN Connector with sealed shielded design, 5-pin configuration, and durable nickel-plated contacts. Ideal for industrial control panels and automation systems. Constructed with high-quality PBT insulator and steel socket case, this DIN plug provides reliable insulation resistance over 100MΩ at 500V DC and withstands voltage up to 250V AC for one minute. Its robust design supports up to 10,000 mating cycles, ensuring long-lasting performance in harsh industrial settings. Perfect for secure, vibration-resistant connections.
Get Multicomp DIN Plug with Plastic Handle PS000057 today—designed for secure, vibration-resistant electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PS000057?
You can click on the BUY or RFQ button to purchase PS000057 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PS000057?
You can download the PS000057 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PS000057?
MULTICOMP PRO
