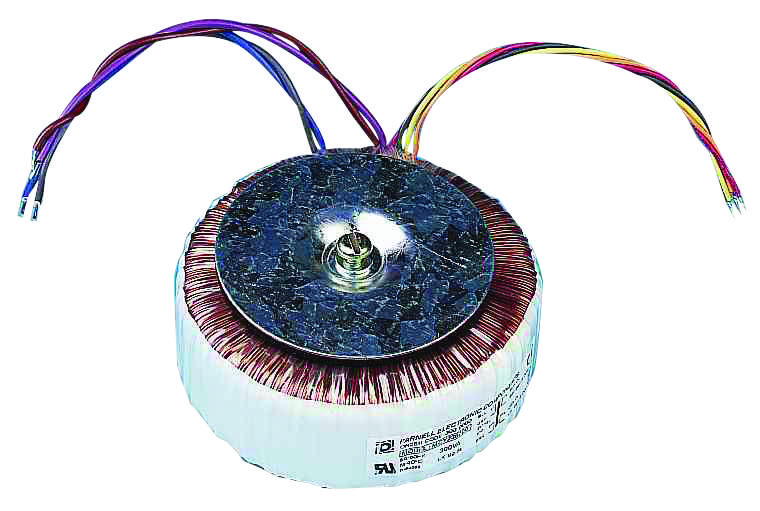

MULTICOMP-PRO MCTA06025 Toroidal Transformer
The Multicomp MCTA series toroidal transformers are versatile, general-purpose units with flying leads, suitable for various power applications. They feature a single primary winding with taps at 115VAC and 230VAC, operating at 50/60Hz, and dual secondary windings that can be connected in series or parallel, or used independently. Power ratings range from 15VA to 1000VA, with secondary voltages from 2 x 6VAC up to 2 x 55VAC. The primary leads are double insulated, flexible, and can be trimmed to any length without removing the enamel coating. Each transformer is 100% tested for electrical integrity and safety. These transformers are ideal for industrial and power management applications. Included with the transformer are a dished mounting plate, two foam pads, a screw, nut, and washer. Rated with a 12-month limited warranty. The product is highly recommended, with 96% of customers willing to recommend it to others.
MULTICOMP-PRO MCTA06025 Toroidal Transformer Specifications:
- Power ratings from 15VA to 1000VA
- Primary Voltage: 115V ±10%, 230V ±10% at 50/60Hz
- Secondary Voltage: 2 x 6V to 2 x 55V (varies by model)
- Secondary Current: Ranges from 1.25A to 12.5A depending on model
- Wire insulation: Class H (180°C)
- Lead insulation: Double insulated PVC sleeving rated at 600V / 105°C
- Dimensions vary per model, typical diameter 70-150mm and height 30-70mm
- Operating temperature: Up to 105°C insulation class, temperature rise varies by model
- Efficiency: Ranges from 87% to 96% depending on power rating
- Standards compliance: EN61558 series, UL recognized for safety and electrical standards
- Construction: Toroidal core, easy mounting with included plates and pads
- Weight: Ranges from approximately 0.33kg to 7.48kg depending on model
Buy the Buy multicomp Toroidal Transformer Part Number MCTA06025 Online
Purchase your multicomp Toroidal Transformer Series MCTA06025 online today and ensure power stability and efficiency in your industrial or electronic projects. These transformers feature dual windings for flexible connections, high-quality insulation, and robust construction. Easy to install with included mounting plates and pads, they are perfect for power management, industrial equipment, and automation systems. With a wide range of power ratings from 15VA to 1000VA, this product ensures dependable performance. Order now to benefit from fast shipping and excellent customer support, making your projects safer and more efficient.
Order your multicomp Series MCTA06025 toroidal transformer today and enjoy reliable performance for industrial power applications with easy installation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTA06025?
You can click on the BUY or RFQ button to purchase MCTA06025 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTA06025?
You can download the MCTA06025 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTA06025?
MULTICOMP-PRO
