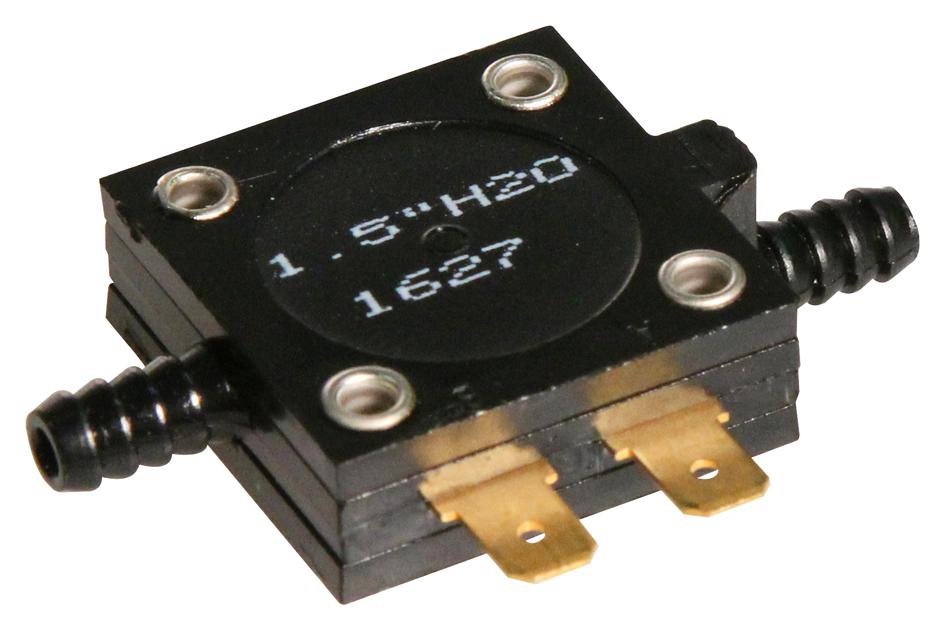

MULTICOMP PRO PSF100A15 miniature pressure switch
The PSF100A-1.5 is a miniature pressure switch boasting a quick response time and enhanced durability through a patented dual diaphragm and contact design. It resists false actuation caused by shock and vibration, meeting rugged military standards (MIL-SPEC). The switch features gold contact points, a polycarbonate case, and porting options for low or high-pressure applications. Operating temperature ranges from 40°F to 150°F, making it suitable for industrial, military, aerospace, and defense use. Its compact size and high reliability ensure dependable performance in demanding environments.
MULTICOMP PRO PSF100A15 miniature pressure switch Specifications:
- Switch Type: SPST normally open, double-make / double-break
- Mechanical Life: Over 20 million cycles
- Proof Pressure: 8 psi (for set points ≤3 inches H2O), 15 psi (for set points >3 inches H2O), 8 psi with PTFE diaphragm
- Operating Temperature: +40°F to +150°F
- Case Material: Polycarbonate
- Ports: Two 200 inches diameter barbed ports for 1/8 to 3/16 inches ID tubing
- Diaphragm Material: Polyurethane (PTFE optional)
- Electrical Terminals: 0.187 inches x 0.02 inches tab-type
- Current Rating: 40mA resistive
- Operating Voltage: 30V AC/DC or less, 120V AC neon load
- Shock & Vibration Resistance: 50 G's shock, 10 G's vibration at 50 to 2000 Hz
- Dimensions: 0.38 inches (9.5 mm) diameter, 0.72 inches (18.2 mm) height
- Set Point Range: 0.1 to 50 psi
- Part Number: PSF100A-1.5
Buy the Multicomp Miniature Pressure Switch – Reliable PSF100A-1.5 for Industrial Applications
Enhance your projects with the reliable PSF100A-1.5 miniature pressure switch from Multicomp. Featuring quick response time, dual diaphragm design, and robust build, it resists shock and vibration while providing consistent operation across a wide temperature range. Ideal for industrial, aerospace, military, and defense applications, this switch offers long-lasting performance with a mechanical life exceeding 20 million cycles. Easy to install with barbed ports for tubing connection, it’s your dependable solution for demanding pressure sensing needs. Purchase online today for guaranteed quality and prompt delivery.
Order your Multicomp Series PSF100A-1.5 miniature pressure switch today and ensure reliable performance in demanding industrial, military, and aerospace projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PSF100A15?
You can click on the BUY or RFQ button to purchase PSF100A15 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PSF100A15?
You can download the PSF100A15 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PSF100A15?
MULTICOMP PRO
