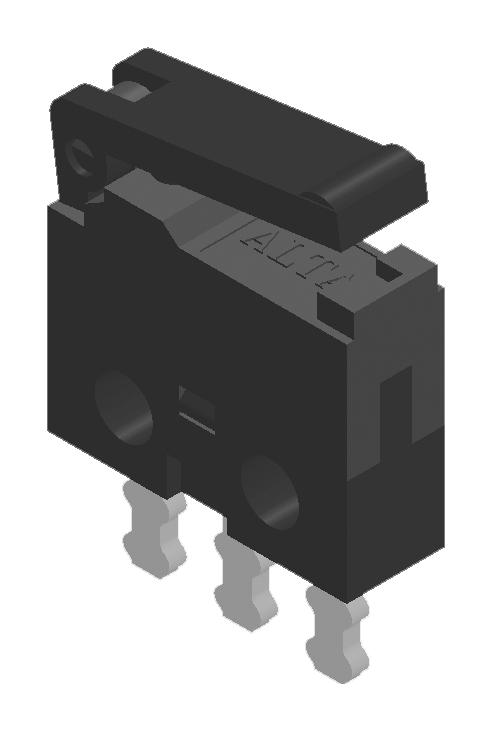

MULTICOMP PRO MP000796 Snap Action Microswitch
This through hole snap action microswitch features a hinge lever, 0.5A electrical rating at 30V DC, and a compact design suitable for various electronic applications. It offers mechanical durability of 100,000 cycles, electrical durability of 50,000 cycles, and a contact resistance of less than 100mΩ. The switch operates within temperatures ranging from -40°C to +85°C and supports multiple circuit configurations including SPDT, SPST-NC, and SPST-NO. Its precise operating force is 0.5N, with a release force of 0.03N, ensuring reliable switching performance in industrial environments.
MULTICOMP PRO MP000796 Snap Action Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ
- Insulation Resistance: 100MO min. (at 500V DC)
- Dielectric Strength: 250V AC across terminals for 1 minute
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven Pitch
- Supported Circuits: SPDT, SPST-NC, SPST-NO
Buy the Farnell MP000796 – Reliable Microswitch for Industrial Applications
Secure the Farnell MP000796 snap action microswitch online today for your industrial, automation, or electronic projects. With its proven durability of 100,000 cycles and a rated current of 0.5A at 30V DC, this switch provides reliable switching in a compact form factor. Its precise contact resistance and simple mounting make it ideal for mapping devices, small audio equipment, and portable electronics. Order now for rapid delivery and enhance your system’s performance with this high-quality switch.
Buy Farnell MP000796 now and experience unmatched reliability and performance in your control systems and electronic projects.
