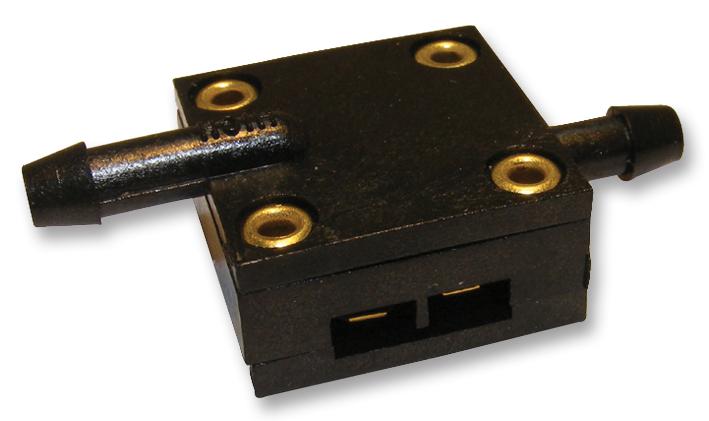

MULTICOMP PRO PSF1027651713 Pressure Switch
The pressure switch features a compact, lightweight design with high-resolution adjustment capabilities, making it ideal for various fluid and air pressure applications. Equipped with a polycarbonate case, polyurethane diaphragm, and gold contact points, the switch ensures durability and reliability. It supports a wide operating temperature range from -46°F to +205°F, and its SPST-NO configuration offers a mechanical life exceeding 20 million cycles. Compatibility with standard pressure fittings, quick connect options, and customizable set points make it suitable for industrial automation, control systems, and fluid management needs. The switch is RoHS compliant and designed for dependable long-term performance.
MULTICOMP PRO PSF1027651713 Pressure Switch Specifications:
- Switch Type: SPST (single pole / single throw) normally open, normally closed optional
- Maximum Operating Pressure: Varies by option; see set point options
- Mechanical Life: Over 20 million cycles
- Operating Temperature: +40°F to +150°F (standard), -46°F to +205°F (extended range)
- Diaphragm Material: Polyurethane / PTFE
- Case Material: Polycarbonate (optional: Lexan 141, Ryton, Ultem, Noryl)
- Electrical Connections: 0.187" x 0.020" spade terminals, PCB terminals available
- Contact Points: Gold-plated
- Mounting: Screws through lugs, eyelets, or mounting clips
- Weight: Less than 10 grams
- Electrical Rating: Up to 40mA resistive at 30V AC/DC, 120V AC neon lamp load
- Ports: Standard ports including barbed, smooth, or NPT options, many port diameters available
- Dimensions: Approximately 0.72 inches (18.2 mm) length, 0.50 inches (12.7 mm) width, 0.28 inches (7.1 mm) height, with adjustment screw included
Buy the multicomp Series Pressure Switch: PSF102-7651-713
Secure your fluid management needs with the multicomp pressure switch series. Designed for durability and precision, this switch offers adjustable set points, gold contact reliability, and a compact lightweight structure ideal for industrial automation and control systems. Its high cycle life over 20 million cycles ensures long-term performance in demanding environments. Compatible with various pressure fittings and ports, it provides flexible installation options. Invest online today for a dependable pressure sensing solution that enhances your operational efficiency and guarantees precise pressure control in air, fluids, and vacuum applications.
Buy multicomp PSF102-7651-713 pressure switch now and experience reliable, adjustable, and high-performance fluid control solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PSF1027651713?
You can click on the BUY or RFQ button to purchase PSF1027651713 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PSF1027651713?
You can download the PSF1027651713 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PSF1027651713?
MULTICOMP PRO
