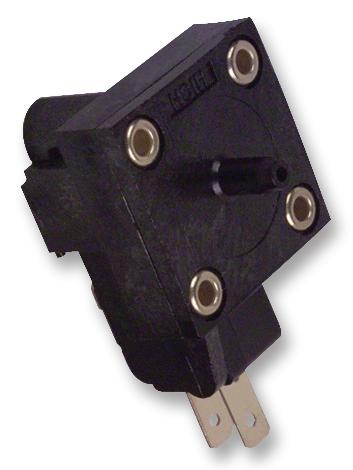

MULTICOMP-PRO PSF1039011904 High Current Pressure Switch
The pressure switch is designed for high-current industrial applications, featuring a robust polycarbonate case and a polyurethane or PTFE diaphragm. It offers field-adjustable vacuum set points from 3 inches H20 to 60 psi, with a snap-action SPDT switch capable of handling up to 25A at 125/250V AC. It supports various pressure ports and mounting options, ensuring reliable long life exceeding 10 million cycles. Suitable for air and compatible fluids, it operates between -46°F and +150°F, with standard electrical connections and RoHS compliance, making it a versatile choice for demanding systems.
MULTICOMP-PRO PSF1039011904 High Current Pressure Switch Specifications:
- Switch Type: Snap action SPDT
- Electrical Connections: Terminals - 0.187 inches x 0.02 inches tab-type, for quick disconnects
- Operating Voltage: 125/250 VAC, 30-15A depending on model
- Operating Temperature: -46°F to +150°F
- Case Material: Polycarbonate
- Diaphragm Material: Polyurethane or PTFE (optional)
- Mechanical Life: Over 10 million cycles
- Controllable hysteresis: Tighter tolerances available (+20%)
- Mounting: Multiple options including mounting lugs, brackets, and threaded ports
- Pressure Range: 3 to 28 inches H20, 0.11 to 69 psi, with proof pressures up to 30 psi
- Pressure Ports / Cover Options: Smooth, barbed, or threaded ports for tubing or fittings
- Dimensions: Millimetres, with mounting holes and port sizes as specified
- RoHS Compliant
Buy the Multicomp Pressure Switch – Reliable High-Current Control for Industrial Applications
Purchase the high-current pressure switch online now to benefit from quick installation, reliable performance, and excellent durability in demanding industrial environments. With adjustable vacuum set points and multiple port options, this switch ensures accurate pressure monitoring in air and fluid systems. Its robust construction provides over 10 million cycles of operation, making it ideal for continuous use in manufacturing, HVAC, and automation projects. Order today to enhance your system's safety and efficiency with a trusted pressure control solution.
Order your Multicomp Pressure Switch today and ensure reliable control for your industrial air and fluid systems with durable, adjustable solutions.
