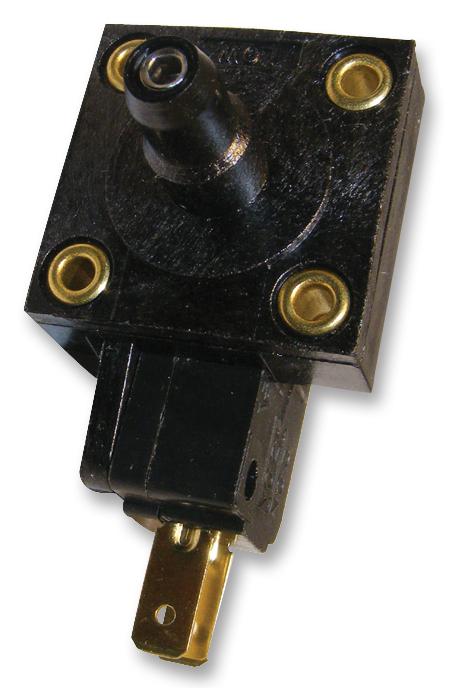

MULTICOMP PRO PSF109S38 Vacuum Pressure Switch
The high-current vacuum pressure switch offers a wide adjustable set point from -3 inches HzO to -12 psi, with snap action operation up to 25A at 125/250V AC. Its small, lightweight design features a polycarbonate case, polyetherurethane diaphragm, and silver contact points for dependability. Suitable for air and compatible fluids, it withstands temperatures from +40°F to +150°F, with customizable options for tolerance, vacuum port configuration, and electrical connections. Ideal for industrial applications requiring robust vacuum control and high current switching capabilities.
MULTICOMP PRO PSF109S38 Vacuum Pressure Switch Specifications:
- Switch Type: SPDT normally open or normally closed
- Mechanical Life: Over 10 million cycles
- Operating Temperature: +40°F to +150°F, -46°F to +205°F optional
- Case Material: Polycarbonate
- Diaphragm Material: Polyurethane, PTFE optional
- Contact Points: Silver (gold available)
- Electrical Connections: Tab-type terminals for quick disconnects
- Operating Voltage: 125/250VAC
- Vacuum Port Options: 0.25 inches diameter, 1/8 inches NPT, quick connect fitting
- Size: Less than 20g
- Physical Dimensions: Refer to detailed diagrams (millimetres)
- Tolerance: Standard ±20%, tighter tolerances available
- Switching Medium: Air and compatible fluids
- Mounting: Through eyelets with optional bracket
Buy the Multicomp Series Vacuum High Current Switch: PSF109S38
Purchase the high-current vacuum pressure switch today online to benefit from its adjustable set point, snap action operation, and reliable high current switching up to 25A. Designed for industrial vacuum systems, it features durable polycarbonate construction, a polyurethane diaphragm, and various port options including quick connect fittings. Its lightweight design makes installation straightforward. This switch offers long-term durability with a mechanical lifespan exceeding 10 million cycles, ensuring dependable performance for demanding industrial and manufacturing environments that require precise vacuum management.
Order your Multicomp Series Vacuum High Current Switch PSF109S38 today and ensure reliable, high-capacity vacuum control for your industrial applications.
