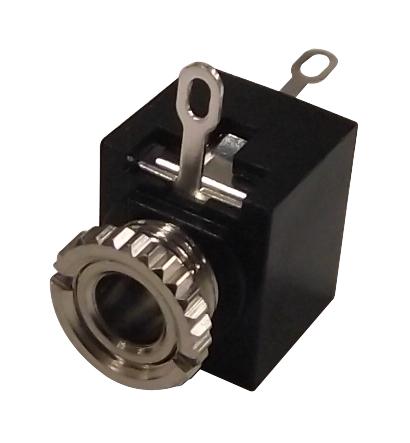

MULTICOMP PRO PSG01537 Stereo Jack Socket
This 3.5mm stereo phone jack with nut is designed for reliable audio connections in electronic devices. It features brass body and nut, ABS plastic handle, and brass soldering pins, making it durable. Operating within -20°C to +65°C, it supports current ratings of 3A/125V AC and 1A/250V DC. The jack ensures excellent insulation resistance over 100MQ and low contact resistance of 30mΩ. It withstands AC 500V dielectric tests for one minute. Ideal for audio, communication, and consumer electronics, it combines quality materials and precise dimensions for long-lasting performance.
MULTICOMP PRO PSG01537 Stereo Jack Socket Specifications:
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: > 100MQ Min. at DC 500V
- Dielectric Withstand Voltage: AC 500V for one minute
- Current Rating: AC: 3A/125V, DC: 1A/250V
- Operating Temperature Range: -20°C to +65°C
- Material: Brass body and nut, ABS plastic handle, brass soldering pins
- Dimensions: Not specified in exact measurements but conforms to standard 3.5mm stereo jack sizes.
- Flammability: UL 94V-0 (implied by material standards)
- Temperature Rating: -20°C to +65°C
Buy the Multicomp Series 3.5mm Stereo Phone Jack: PSG01537
Order the Multicomp Series stereo jack socket today for high-quality audio connections in your electronic projects. Designed with durable brass and ABS materials, it provides excellent contact resistance and insulation properties. Its robust construction supports current ratings of 3A/125V AC and 1A/250V DC, ensuring reliable performance in various applications. Compact and easy to install, this stereo jack with nut is suitable for consumer electronics, audio devices, and communication equipment. Get yours online now and experience durable, high-quality audio connectivity for your projects.
Get Multicomp PSG01537 today—built for reliable audio connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PSG01537?
You can click on the BUY or RFQ button to purchase PSG01537 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PSG01537?
You can download the PSG01537 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PSG01537?
MULTICOMP PRO
