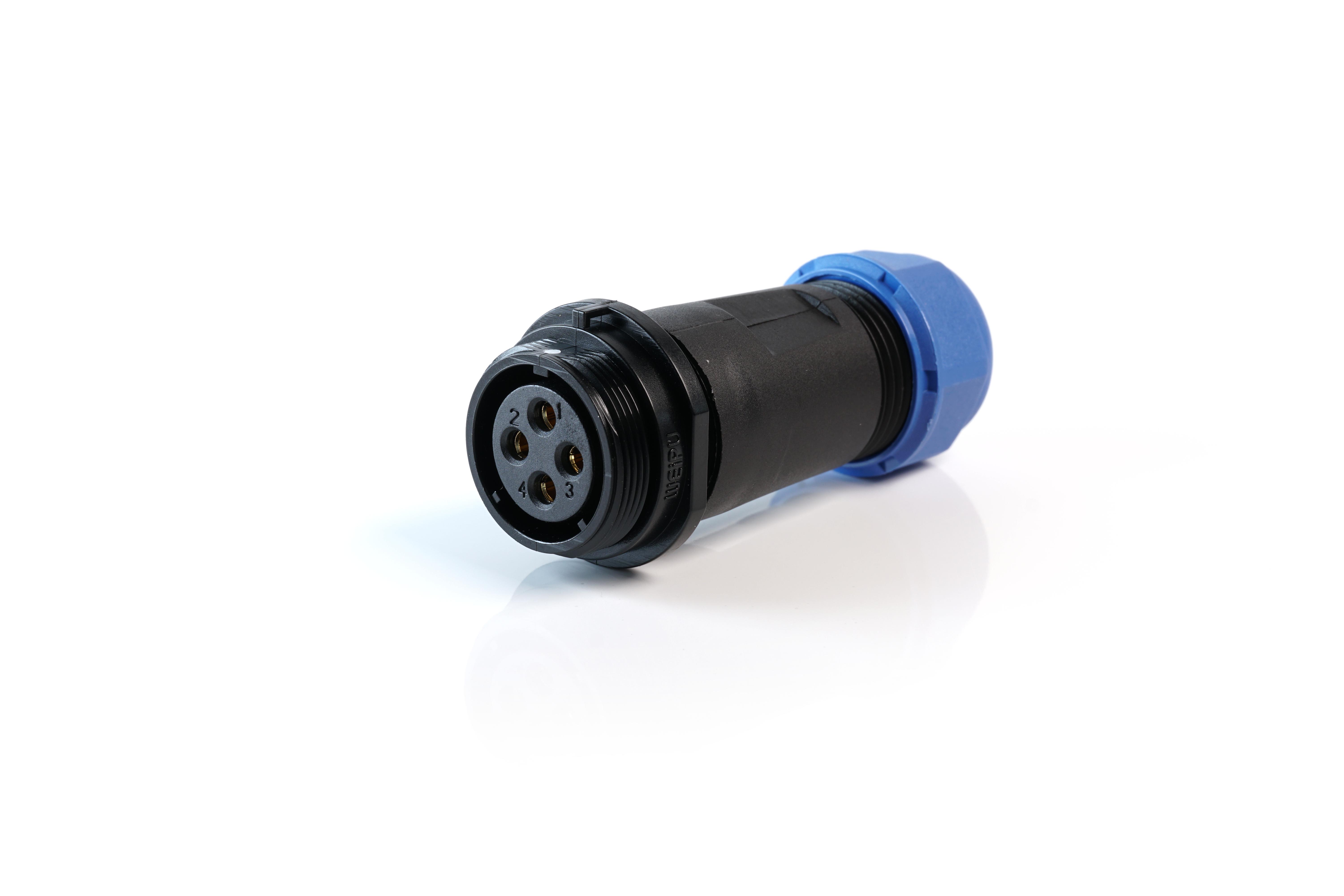

MULTICOMP PRO MP002585 Industrial Sealed Connectors
The MP-T21 IP68 series offers durable, sealed connectors with threaded couplings for secure indoor and outdoor installations. Designed for versatility, these connectors come in panel, cable, and inline mount options, accommodating 21mm panel cut-outs. They feature solder or screw terminations with configurations ranging from 2 to 12 poles, supporting applications like automation, industrial control, security, and medical equipment. With an IP68 rating, they ensure water and dust resistance, making them ideal for harsh environments. Optional IP68-rated caps provide additional environmental protection, and the series complies with RoHS, ensuring environmentally safe use.
MULTICOMP PRO MP002585 Industrial Sealed Connectors Specifications:
- Ingress Protection: IP68
- Material: Nylon66 shell, PPS insert, Brass contact with gold plating
- Temperature Range: -40°C to +85°C
- Contact Termination: Solder or screw
- Contact Material: Brass with gold plating
- Rated Current: Up to 30A depending on configuration
- Rated Voltage: Up to 500V AC
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Mating Cycle: 500 cycles
- Cable Outer Diameter Range: 7mm to 12mm
- Panel Cutout Diameter: 21mm
- Fire Resistance: V-0 UL 94
- RoHS Compliant
- Associated Accessories: Dust caps for plugs and receptacles
- Application Environments: Outdoor, industrial, automation, security, medical
Buy the Multicomp Series IP68 Connector: MP002585
Secure your projects today with the IP68-rated industrial sealed connectors from Multicomp. Designed for outdoor, harsh, and industrial environments, these connectors provide waterproof, dustproof, and highly durable connections suitable for automation, security, and control systems. Available in multiple configurations with solder or screw terminations, supporting 2 to 12 contacts. Their reliability extends over 500 mating cycles, with optional protective dust caps for added environmental resistance. Buy online now to ensure your projects meet the highest standards of durability and performance.
Order your Multicomp Series MP002585 IP68 connector today and ensure reliable, sealed connections for your harsh environment projects.
