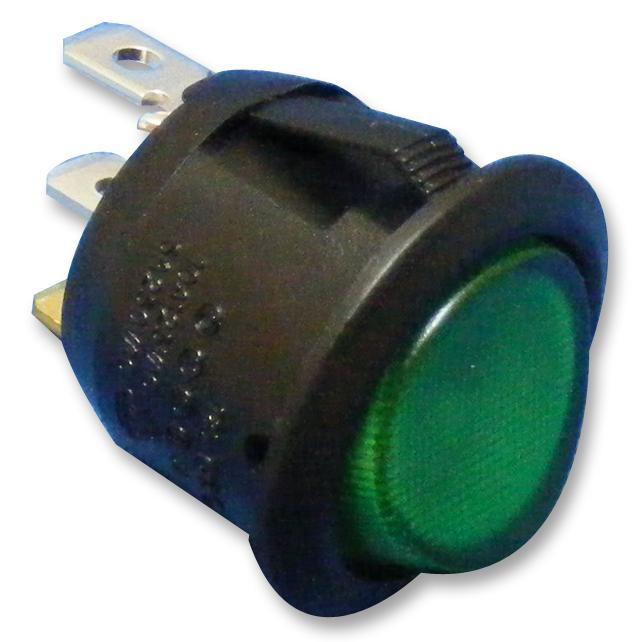

MULTICOMP PRO R13112B02BG0A Panel Mount Rocker Switch
The Multicomp Pro R13 series rocker switches are mechanically operated and designed for panel mounting in industrial and automation settings. They are available with illumination or without, and feature SPST on-off functions, with various actuator cap colors including green, black, red, and white for clear visibility. Rated for 16A at 125V and 10A at 250V AC, these switches have excellent electrical ratings such as 50mΩ contact resistance, 500V DC insulation resistance, and 1500V dielectric strength. Made from durable nylon 66 and PC materials, they operate reliably from -25°C to +85°C, suitable for power management and process control.
MULTICOMP PRO R13112B02BG0A Panel Mount Rocker Switch Specifications:
- Rating: 16A 125V, 10A 250V AC, 10(4)A 250V
- Contact Resistance: 50mΩ Max
- Insulation Resistance: DC 500V 100MO Min
- Dielectric Strength: AC 1500V 1 minute
- Operating Temperature: -25°C to +85°C
- Switch Function: 3P SPST On-Off (Neon dependent)
- Frame Material: Nylon 66, Black
- Actuator Material: PC, Green clear
- Actuator Cap Colors: White, Black, Red, Green
- Mounting Hole Diameter: 16mm
- Rated Voltage: 125V/250V AC
- Physical Dimensions: Diameter approximately 16mm, Actuator thickness 2.0~3.0mm
- Environmental: Shock, vibration, and moisture resistant
- Certification: UL, CE
Buy the Buy Multicomp Rocker Switch Part Number R13112B02BG0A Online
Enhance your control panels with the reliable Multicomp Series R13112B02BG0A rocker switch. Designed for durability and precise switching, it features illumination options, high voltage ratings, and excellent resistance to environmental factors. Ideal for industrial automation, power management, and process control applications, this switch’s robust nylon and PC construction ensures long-lasting performance. Easy to install, with versatile actuator colors and ratings suitable for various power needs, it’s the perfect choice for professionals seeking quality and dependability in their switching solutions.
Order your Multicomp Series R13112B02BG0A rocker switch today and ensure reliable panel control with durable, illuminated operation for industrial environments.
