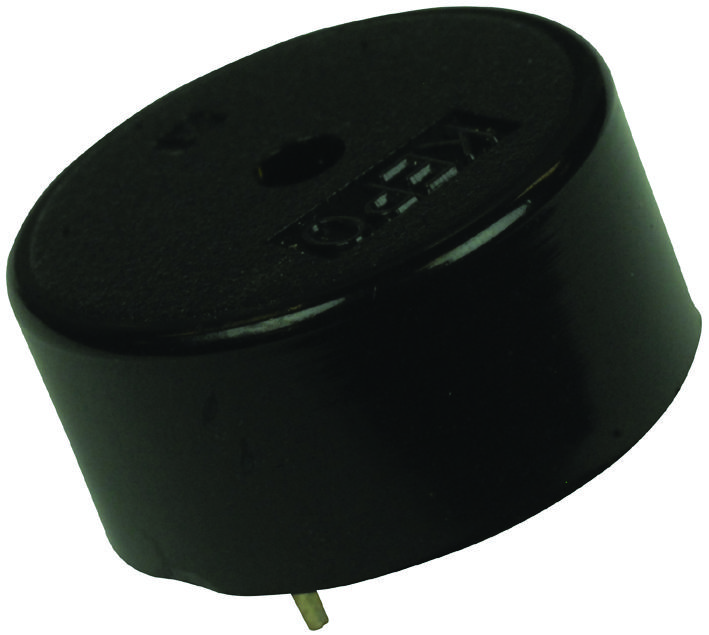

MULTICOMP-PRO MCKPTG1712A3921 Piezo Transducer
The piezo transducer from Multicomp Pro is a compact, high-performance audio device rated for 2mA current at 2kHz and producing a minimum sound pressure level of 70dB at 2kHz/3V-p-p. Constructed with black PC shell material, it operates safely from -20°C to +80°C and can be stored in temperatures from -30°C to +100°C. With a resonant frequency of approximately 12.5kHz, it is suitable for electronic sound alert applications. Its lightweight design (12g) makes it ideal for integration into various industrial and consumer products.
MULTICOMP-PRO MCKPTG1712A3921 Piezo Transducer Specifications:
- Rated Voltage: 3 Vp-p Square Wave
- Operating Voltage: 25 Vp-p Square Wave
- Max. Rated Current: 2mA at 2kHz/3 Vp-p Square Wave
- Min. Sound Pressure Level: 70dB at 2kHz/3 Vp-p Square Wave / 10cm
- Capacitance at 100Hz: 25,000pF +30%
- Resonant Frequency: 12.5 kHz
- Shell Material / Colour: PC / Black
- Operating Temperature: -20°C to +80°C
- Store Temperature: -30°C to +100°C
- Weight: 12g
- Dimensions: 3.5mm x 2mm x 10mm
Buy the Multicomp Series Pro Piezo Transducer: MCKPTG1712A3921
Purchase the Multicomp Series Pro Piezo Transducer online today and enjoy efficient, high-quality sound alerts for your electronic projects. With a sound level of 70dB, resonant frequency of 12.5kHz, and operating voltage of 3V, this compact device is perfect for industrial and consumer applications. Its durable black PC shell ensures longevity, operating seamlessly between -20°C and +80°C. Lightweight at just 12 grams, it combines performance with ease of integration—order now for fast delivery and reliable operation.
Order your Multicomp Series Pro piezo transducer today and enhance your alert systems with reliable sound performance and compact design.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKPTG1712A3921?
You can click on the BUY or RFQ button to purchase MCKPTG1712A3921 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKPTG1712A3921?
You can download the MCKPTG1712A3921 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKPTG1712A3921?
MULTICOMP-PRO
