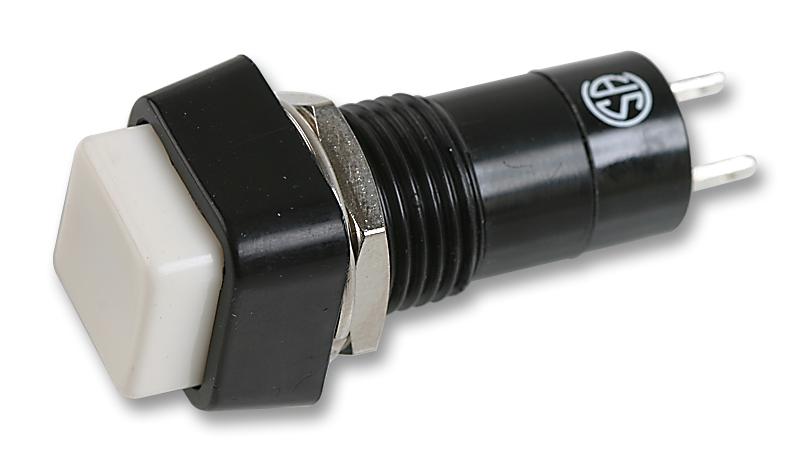

MULTICOMP PRO R1323A05BW Industrial Pushbutton Switch
The Multicomp Pro R13-23 series pushbutton switches are mechanically operated with a two-pin, momentary action design, rated for 3A at 125V and 1.5A at 250VAC. Featuring an insulation resistance of at least 100 MΩ at DC 500V and dielectric strength of 1000VAC, these switches are durable and reliable for industrial use. The actuator is crafted from white ABS, while the frame is made of black ABS, ensuring robustness. Ideal for power management, automation, and process control applications, they offer excellent performance in demanding environments.
MULTICOMP PRO R1323A05BW Industrial Pushbutton Switch Specifications:
- Rating: 8A 125V AC, 1.5A 250V AC
- Contact Resistance: 50mQ Max.
- Insulation Resistance: DC 500V 100MO Min.
- Dielectric Strength: AC 1,000V 1 minute
- Switch Function: 2P SPST OFF-(ON)
- Material: Frame - Nylon#66, ABS actuator, Base - Nylon#66+15%GF
- Dimensions: Millimetres, with mounting hole details
- Actuator: White ABS
- Frame Material: Black Nylon#66
Buy the Multicomp Pro R13-23 U–Reliable Power Switches for Industrial Applications
Purchase the Multicomp Pro R13-23 pushbutton switch online today—designed for durability and reliability in industrial environments. With a 3A, 125V rating, high insulation resistance, and rugged ABS construction, this switch ensures consistent operation in automation, control panels, and power management. Its compact design with precise dimensions allows for easy installation. Enjoy fast delivery and secure online payment options. Upgrade your industrial control systems with this high-quality, mechanically operated switch that promises long-lasting performance and safety in demanding conditions.
Buy Multicomp Pro R13-23 now and experience unmatched reliability and performance in industrial automation and control.
