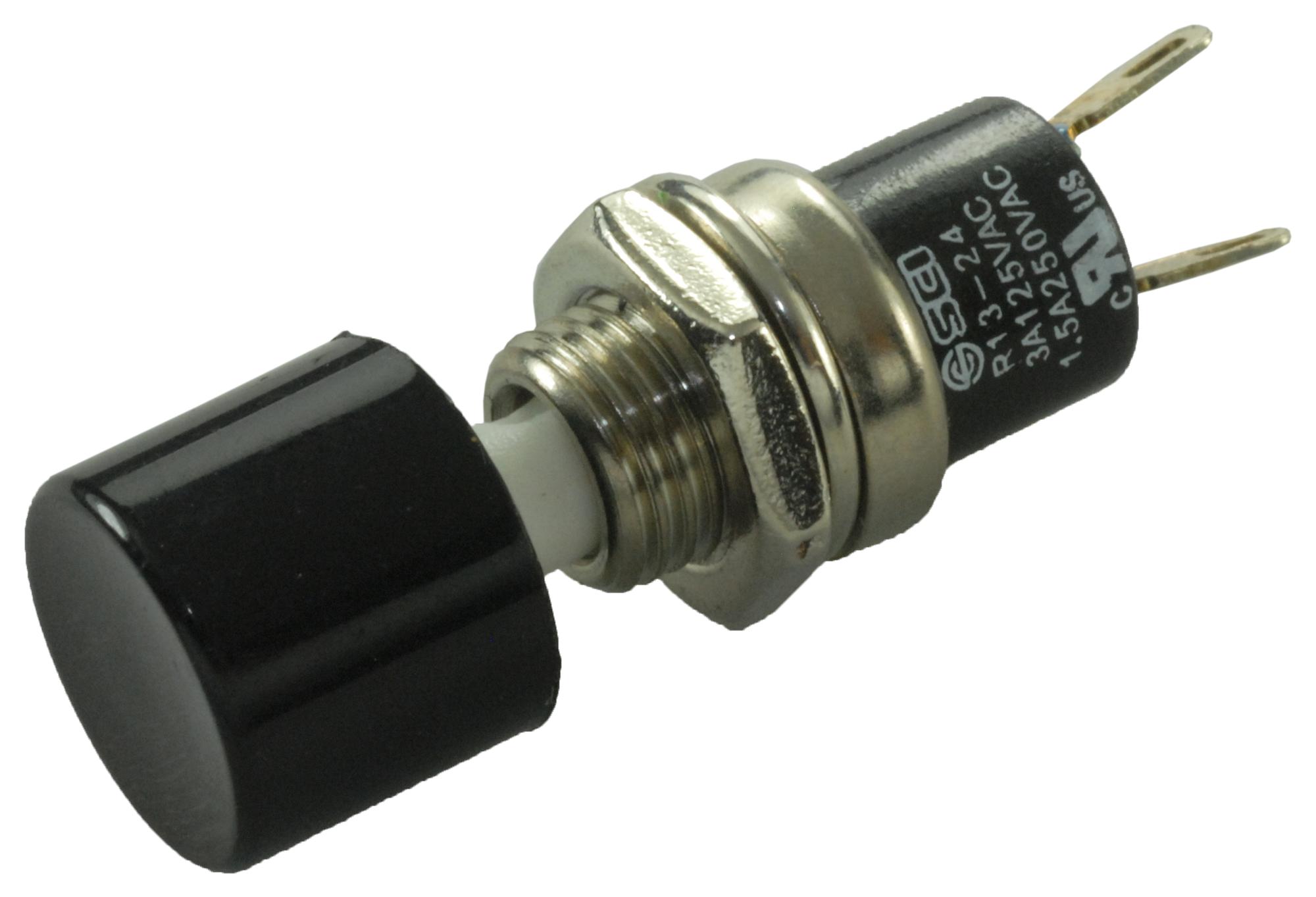

MULTICOMP PRO R1324AL05BB Pushbutton Switch
The Multicomp Pro R13-24 series pushbutton switch is a mechanical, two-pin momentary action device. It features a black ABS button measuring 10mm by 8.5mm, housed in a black PBT casing. The switch has a current rating of 3A at 125VAC and 1.5A at 250VAC. It offers an insulation resistance of at least 100 megaohms at DC 500V and a dielectric strength of 1000VAC. Suitable for industrial, power management, automation, and process control applications, this switch is designed for reliable operation in various electronic systems.
MULTICOMP PRO R1324AL05BB Pushbutton Switch Specifications:
- Button Material: ABS, Black
- Housing Material: PBT, Black
- Button Dimensions: 10 mm x 8.5 mm
- Rating: 3A 125V, 1.5A 250V AC
- Max. Contact Resistance: 50mΩ
- Min. Insulation Resistance: 100MQ at DC 500V
- Dielectric Strength: 1000VAC for 1 minute
- Switch Function: 2P SPST OFF-ON
- Mounting Hole Dimensions: as per circuit diagram
- Suitable for industrial control, automation, power management, and process control
Buy the Multicomp Series R13 Pushbutton Switch: R1324AL05BB
Order the Multicomp R13-24AL-05-BB pushbutton switch online today and enjoy fast delivery. Its robust ABS button and PBT housing ensure durability and reliable operation in industrial environments. With a current rating of 3A at 125VAC and 1.5A at 250VAC, it is ideal for electronic control systems. The switch’s high insulation resistance and dielectric strength make it suitable for automation, power management, and process control applications. Perfect for professionals seeking dependable switching solutions.
Buy Multicomp R1324AL05BB pushbutton switch now and experience reliable, high-quality performance in industrial and automation applications.
