MULTICOMP PRO R132G7210150CC RF Coaxial Cable Assembly

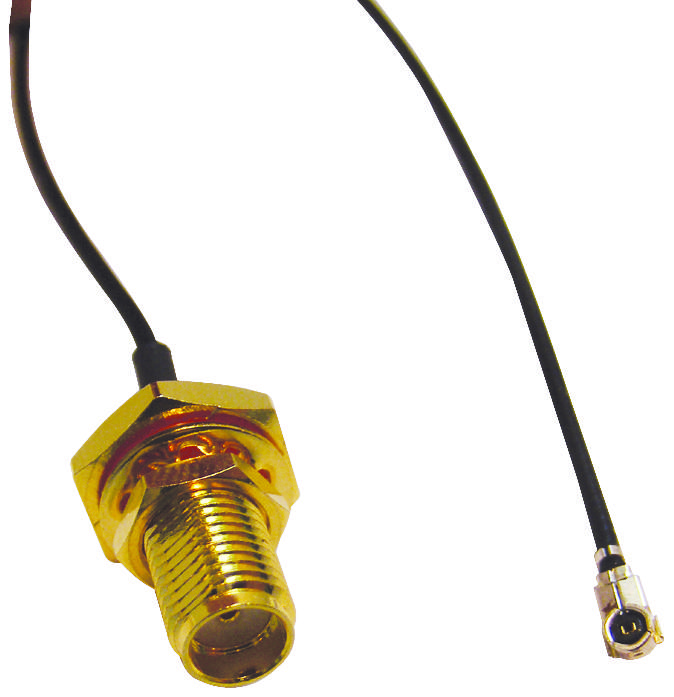

This 150mm RF coaxial cable assembly features a right-angle U.FL plug and SMA bulkhead jack connector. Made with low-loss 1.37mm micro coax cable and 50 ohm impedance, it operates from DC to 3 GHz. The black heat shrink provides extra durability, while the U.FL shell and terminal ensure reliable RF connections. Designed for outdoor applications, it supports up to 60V RMS working voltage, 200V dielectric withstand voltage, and has an insulation resistance over 500MΩ. Suitable for RF communication, imaging, video, and vision systems, it withstands temperatures -20°C to +70°C with low insertion loss.
MULTICOMP PRO R132G7210150CC RF Coaxial Cable Assembly Specifications:
- Cable Length: 150mm (5.9")
- Impedance: 50Ω
- Frequency Range: DC to 3GHz
- Working Voltage: 60 Vrms Max.
- Dielectric Withstanding Voltage: 200 Vrms Max.
- Insulator Resistance: 500 MΩ Min.
- Jacket Colour: Black
- Connector Type: 90 Degree U.FL Plug to SMA Bulkhead Jack
- Cable Material: 1.37mm low-loss micro coaxial
- Temperature Range: -20°C to +70°C
- Insertion Loss: Up to -1.3dB
- VSWR: 1.4:1
Buy the multicomp U132G7210150CC – Reliable RF Coaxial Cable for Industrial Applications
Enhance your RF system with this high-quality 150mm coaxial cable assembly. Featuring a right-angle U.FL plug and SMA bulkhead jack, it supports frequencies up to 3 GHz. Its low-loss 1.37mm cable and durable black heat shrink ensure reliable performance in outdoor and indoor environments. Ideal for wireless communication, imaging, and video systems, this assembly is designed for ease of installation and long-term stability. Order online today to ensure your RF connections are dependable and efficient for critical applications.
Buy multicomp U132G7210150CC now and experience unmatched reliability and high-frequency performance for your RF communication needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R132G7210150CC?
You can click on the BUY or RFQ button to purchase R132G7210150CC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R132G7210150CC?
You can download the R132G7210150CC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R132G7210150CC?
MULTICOMP PRO
