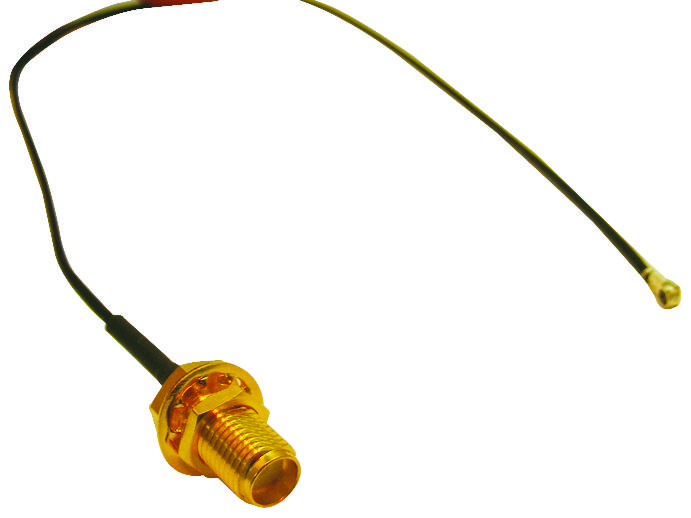

MULTICOMP PRO R132G7210150CD RF Coaxial Cable Assembly
The R-132G7210150CD is a 150mm RF coaxial cable assembly with an IP67 waterproof rating, suitable for outdoor RF communication applications. It features an SMA bulkhead jack connector and a U.FL-LP-088 connector, with a 1.37mm low-loss cable. The assembly offers 50Ω impedance, DC to 3 GHz frequency range, a maximum working voltage of 60Vrms, dielectric withstand voltage of 200Vrms, and insulator resistance of at least 500MΩ. It has an insertion loss up to -1.3dB, operates in temperatures from -20°C to +70°C, and is equipped with black heat shrink tubing for protection.
MULTICOMP PRO R132G7210150CD RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 3 GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Max.
- Insulator Resistance: ≥500MΩ
- Cable Length: 150mm
- Cable Material: 1.37mm low-loss cable, tin plated
- Connector Types: SMA bulkhead jack, U.FL-LP-088
- Connector Material: Halogen-free shell, gold-plated contacts
- Environmental Rating: IP67 waterproof
- Temperature Range: -20°C to +70°C
- Insertion Loss: max -1.3dB from DC to 3GHz
- Heat Shrink Temperature Range: -40°C to +125°C
- Sheath Color: Black
- Cable Diameter: 1.37mm
- Certification: RoHS compliant
Buy the Multicomp 150GCD – Reliable RF Coaxial Cable Assembly for Industrial Applications
Enhance your outdoor RF communication setup with this 150mm waterproof coaxial cable assembly featuring SMA bulkhead and U.FL connectors. Designed for durability and high-frequency stability, it offers an impedance of 50Ω, operation from DC to 3 GHz, and withstands environmental challenges with IP67 rating. Easy to install with heat shrink protection and precise connectors—ideal for industrial, telecommunications, and outdoor applications. Buy online now to secure dependable, high-performance RF connections that ensure optimal signal integrity in challenging environments.
Order your Multicomp Series R-132G7210150CD RF coaxial cable assembly today and ensure reliable outdoor communication with IP67 waterproof protection.
