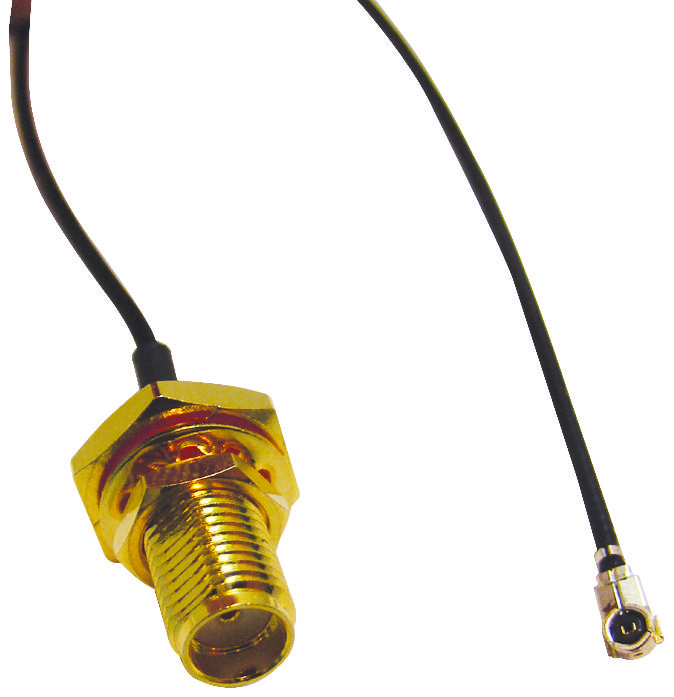

MULTICOMP PRO R132G7210300C RF Coaxial Cable Assembly
The R-132G7210300C is a 300mm RF coaxial cable assembly with a right-angle U.FL-LP-088 connector and an SMA bulkhead jack, designed for reliable RF communication in industrial environments. The cable uses a low-loss 1.37mm diameter conductor, providing excellent electrical performance with a frequency range from DC to 3 GHz, a maximum working voltage of 60Vrms, and an impedance of 50Ω. The assembly features durable black heat-shrink tubing, an insertion loss of up to -1.3dB, and a VSWR of 1.4:1, suitable for outdoor applications and high-frequency data transmission.
MULTICOMP PRO R132G7210300C RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 3 GHz
- Max. Working Voltage: 60 Vrms
- Min. Dielectric Withstanding Voltage: 200 Vrms
- Min. Insulation Resistance: 500 MΩ
- Cable Length: 300mm
- Connector Types: U.FL-LP-088 (right-angle), SMA bulkhead
- Cable Diameter: 1.37mm
- Operating Temperature Range: -20°C to +70°C
- Housing: Black heat-shrink tubing
- Insertion Loss: up to -1.3dB
- VSWR: 1.4:1
Buy the Multicomp R132G7210300C – Reliable RF Coaxial Cable for Industrial Applications
Experience high-performance RF communication with the Multicomp R132G7210300C cable assembly, featuring a 300mm length, U.FL-LP-088 and SMA connectors, and extensive electrical specifications. Crafted with durable black heat-shrink tubing, it ensures reliable signal transmission from DC to 3 GHz, with a maximum voltage of 60Vrms and excellent insulation resistance. Perfect for industrial, outdoor, and RF communication applications requiring stable, high-frequency data transmission. Purchase online now for quality, reliability, and technical excellence!
Get Multicomp R132G7210300C today—built for precision, durability, and reliable high-frequency performance in RF and communication systems.
