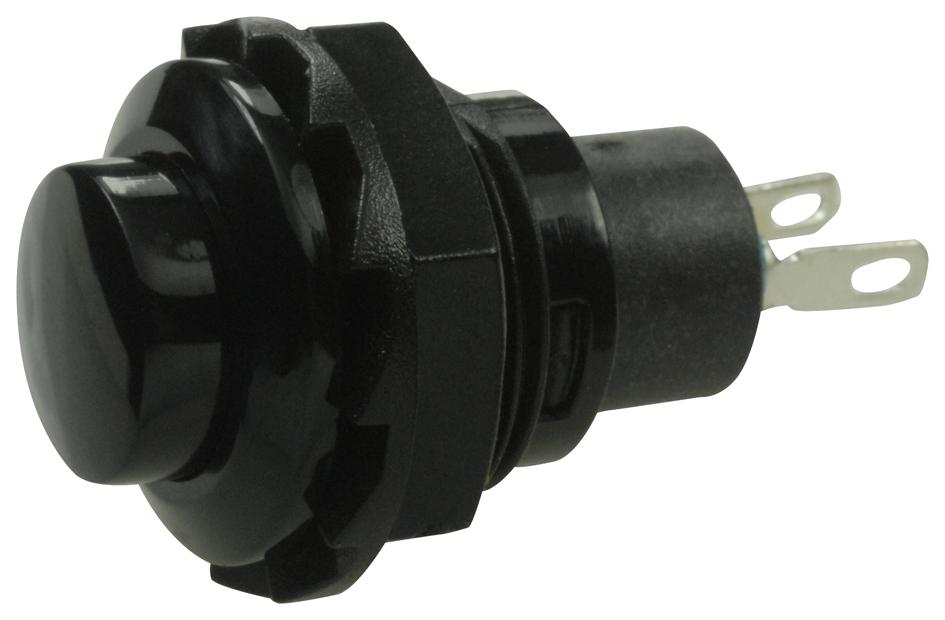

MULTICOMP-PRO R13502A05B Push Button Switch
The Multicomp Pro R13-502 series pushbutton switches are mechanically operated and ideal for industrial, automation, power management, and process control systems. They feature a 3A rating at 125V AC and 1.5A at 250VAC, with robust insulation resistance of 100 Megaohms at DC 500V and dielectric strength of 1000VAC. Crafted with black nylon 66 housing, a red or black button, and copper alloy terminals, these switches ensure durability and reliability in demanding environments. Perfect for panel mounting, they provide a secure ON-OFF switch operation with a simple, reliable design.
MULTICOMP-PRO R13502A05B Push Button Switch Specifications:
- Rating: 3A at 125V AC, 1.5A at 250V AC
- Contact Resistance: 50mΩ
- Insulation Resistance: 100MΩ at DC 500V
- Dielectric Strength: 1000VAC for 1 minute
- Switch Function: 2P SPST OFF-(ON)
- Housing Material: Nylon 66, Black
- Button Material: Nylon 66, Red or Black
- Bottom Cover: PBT +30%GF, Black
- Terminals: Copper Alloy
- Thread Size: 1/2"-28UNEF
- Dimensions: 20.81mm (25.8mm specified for mounting or clearance)
- Tolerance: ±0.3mm unless specified otherwise
Buy the Multicomp Series R13 Push Button Switch: R13502A05B
Order the Multicomp R13-502 series pushbutton switch online today for reliable power control in industrial and automation setups. Crafted with durable nylon and copper components, these switches provide secure ON-OFF operation with a 3A current rating at 125V and 1.5A at 250VAC. Their compact design makes installation straightforward, perfect for panel mounting in demanding environments. Equipped with an insulation resistance of 100 Megaohms and dielectric strength of 1000VAC, ensuring safety and long-lasting performance. Buy now and enhance your control systems with proven quality and dependable operation.
Buy Multicomp R13502A05B in durable industrial-grade design now and experience unmatched reliability and performance in automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO R13502A05B?
You can click on the BUY or RFQ button to purchase R13502A05B from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part R13502A05B?
You can download the R13502A05B datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of R13502A05B?
MULTICOMP-PRO
