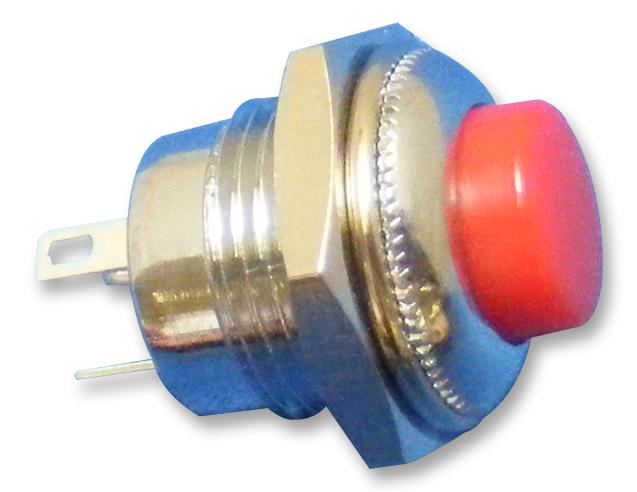

MULTICOMP PRO R13502MC05R Pushbutton Switch
The Multicomp Pro R13-502 series pushbutton switches are mechanically operated switches available in various operation types. They have a current rating of 3A at 125V and 1.5A at 250V AC. The switches feature an insulation resistance of at least 100 Megaohms at DC 500V and a dielectric strength of 1000VAC. They come with a red button and black housing. These switches are suitable for industrial applications, power management, automation, and process control. Multicomp Pro products are highly rated with a 4.6 out of 5 stars, backed by a 12-month limited warranty, and are recommended by 96% of customers.
MULTICOMP PRO R13502MC05R Pushbutton Switch Specifications:
- Rating: 3A 125V, 1.5A 250V AC
- Max. contact Resistance: 50mΩ
- Min. insulation Resistance: 100MQ at 500V DC
- Dielectric strength: 1000VAC for 1 minute
- Actuating force: Not specified
- Operating life endurance: >100,000 operations
- Terminal strength: >2.5kg (solder), >6.8kg (plug-in/screw)
- Solderability: Max 350°C/3sec
- Ambient temperature: 20°C to +65°C
- Humidity: Max 85%
- Shock test: 100g / 10ms X, Y, Z (3 times)
- Vibration test: 10-55Hz / 1.5mm displacement X, Y, Z (2 hrs)
Buy the Multicomp Reliable R13-502MC05R for Industrial Applications
Order the Multicomp Pro R13-502 series pushbutton switch online today to ensure reliable operation in industrial, automation, and power management systems. Featuring a robust 3A/125V and 1.5A/250V AC rating, with excellent electrical and mechanical endurance, these switches are ideal for demanding applications. The red button with black housing provides clear indication and durability. Secure your supply of high-quality, RoHS compliant switches now for fast delivery and professional support. Don't miss out—enhance operational safety with reliable switching solutions.
Buy Multicomp R13-502MC05R now and experience reliable performance and durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R13502MC05R?
You can click on the BUY or RFQ button to purchase R13502MC05R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R13502MC05R?
You can download the R13502MC05R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R13502MC05R?
MULTICOMP PRO
