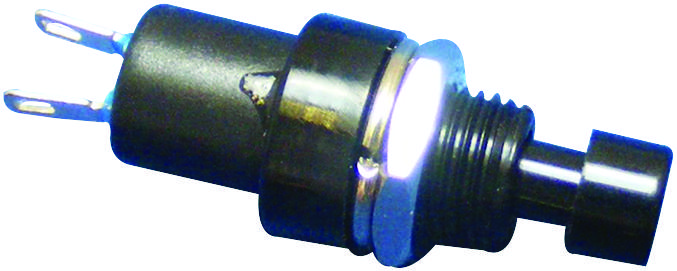

MULTICOMP PRO R13509B05BR Pushbutton Switch
The Multicomp Pro R13-509 series pushbutton switches are mechanically operated and feature a two-pin momentary action design. They are rated for 3A at 125V and 1.5A at 250VAC, with an insulation resistance of at least 100 megaohms at DC 500V and a dielectric strength of 1000VAC. The switches have a red nylon 66 actuator and a black nylon 66 frame, with silver-plated brass terminals. Suitable for industrial applications, power management, automation, and process control.
MULTICOMP PRO R13509B05BR Pushbutton Switch Specifications:
- Rated voltage and current: 3A at 125V, 1.5A at 250VAC
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 500V DC, 100MQ Min
- Dielectric Strength: 1,000V AC for 1 minute
- Actuator Material: Nylon (red color)
- Frame Body Color: Black nylon
- Terminal Material: Silver plated brass
- Inrush Current: 50A/3ms
- Electrical Life: >6,000 operations
- Operating Force: Not specified
- Environmental Range: -20°C to +65°C, humidity max 85%
- Shock and vibration resistance: Meets the specified test conditions
Buy the Multicomp Series R13 Pushbutton Switch: R13509B05BR
Order the Multicomp Pro R13-509B05BR pushbutton switch online today for your industrial automation and power management tasks. These mechanical switches feature a durable nylon actuator and robust silver-plated brass terminals for long-lasting use. Rated for 3A at 125V and 1.5A at 250VAC, they comply with safety standards including dielectric strength of 1000VAC, insulation resistance over 100 megaohms, and a dielectric strength of 1000VAC. Perfect for automation, control panels, and industrial equipment, ensuring reliable performance in demanding environments.
Get Multicomp R13-509B05BR pushbutton switch today—built for industrial automation and reliable control.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R13509B05BR?
You can click on the BUY or RFQ button to purchase R13509B05BR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R13509B05BR?
You can download the R13509B05BR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R13509B05BR?
MULTICOMP PRO
