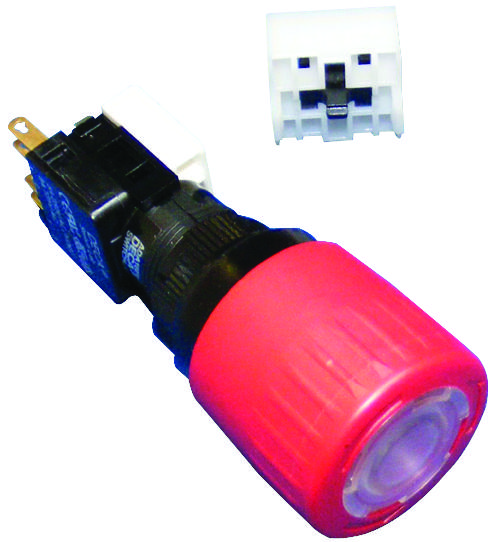

MULTICOMP-PRO MCADA16E6R11B1KR Emergency Stop Switch
This emergency stop switch from Multicomp Pro offers reliable safety features with a mechanical lifetime exceeding 0.1 million operations and a robust IP 65 protection rating. Designed to operate within temperature ranges from -40°C to +70°C, it features a panel thickness tolerance of 0.5mm to 5mm, making it suitable for diverse industrial applications. The switch supports electrical ratings of 250V AC at 5A and 125V AC at 8A, with a maximum insulation voltage of 2000V at 60Hz. Available with LED and neon illumination options, it ensures clear visibility and quick operation for safety-critical environments.
MULTICOMP-PRO MCADA16E6R11B1KR Emergency Stop Switch Specifications:
- Mechanical lifetime: >0.1 million operations
- Electrical rating: 250V AC, 5A; 125V AC, 8A
- Maximum insulation voltage: 2000V at 60Hz, 1 minute between all terminals and ground
- Minimum motion tolerance: <10 operations
- Panel thickness: 0.5mm to 5mm
- Degree of protection: IP 65
- Operating temperature: 1-25°C to +55°C
- Storage temperature: -40°C to +70°C
- Soldering/Plug-in Type: Hole Diameter 28-29mm
- Weight: Approximately 42g
- Design features: Blade terminals, available with LED or neon illumination corresponding to voltage ratings (12V, 24V, 110V, 240V)
Buy the Multicomp Series Emergency Stop Switch: MCADA16E6R11B1KR
Secure your machinery and personnel safety with the professional-grade emergency stop switch from Multicomp Pro. Rated for 250V AC at 5A with a mechanical lifetime over 100,000 operations, this switch features IP 65 protection for dust and water resistance. Its versatile design supports panel thicknesses from 0.5mm to 5mm and accommodates LED or neon illumination options for clear visibility. Suitable for various industrial environments, it operates reliably from -40°C to +70°C, ensuring consistent safety performance in demanding conditions.
Order your Multicomp Series Emergency Stop Switch MCADA16E6R11B1KR today and ensure the safety and reliability of your industrial controls with this robust safety switch.
