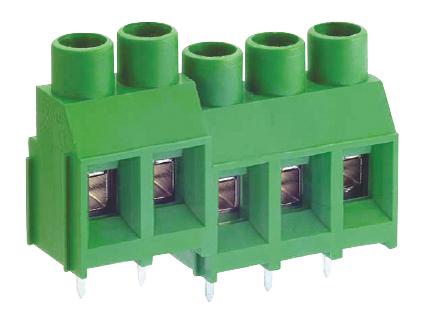

MULTICOMP PRO MC000053 PCB Terminal Block
This 7.62mm PCB terminal block is designed for reliable electrical connections in industrial and electronic applications. It features a green polyamide insulating body, nickel-plated brass cage clamp, and a tin-plated terminal for enhanced durability and corrosion resistance. Suitable for wire ranges from 10 to 20 AWG and rated for 30A and 300V AC, it provides secure connections with a wire strip length of 8mm. The module is ideal for compact, high-current PCB assemblies requiring dependable fastening and insulation. Its dimensions are approximately 22.86mm (0.9 inches) in length, with a pitch of 7.62mm (0.3 inches).
MULTICOMP PRO MC000053 PCB Terminal Block Specifications:
- Rating Current: 30A
- Min. Insulation withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 8mm
- Wire Range: 10 to 20 AWG
- Screw Torque: 5.5 Ib-inch
- Pitch: 7.62mm (0.3 inches)
- Material: Insulating body made of Polyamide 66 - Green
- Cage clamp: Nickel-plated Brass
- Terminal: Tin plated
- Screw: Steel, Nickel-plated
- Dimensions: 22.86mm (0.9 inches) in length for 3-way, 15.24mm (0.6 inches) for 2-way
- Part Number: MC00053 for 3-way, MC00052 for 2-way
Buy the Multicomp 7.62mm PCB Terminal Block – Reliable Industrial PCB Connection for Electronic Applications
Purchase the Multicomp 7.62mm PCB terminal block online to ensure quick, reliable connections for your industrial and electronic projects. Featuring a green polyamide insulator, nickel-plated brass cage clamp, and tin-plated terminals, this durable component supports wire ranges from 10 to 20 AWG and carries a current rating of 30A at 300V AC. Its compact size, with dimensions of approximately 22.86mm in length for the 3-way version, makes it ideal for high-density PCB assemblies requiring robust and secure connections. Buy now for quality and reliability.
Get Multicomp 7.62mm PCB Terminal Block today—built for secure, high-current PCB connections in industrial and electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000053?
You can click on the BUY or RFQ button to purchase MC000053 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000053?
You can download the MC000053 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000053?
MULTICOMP PRO
