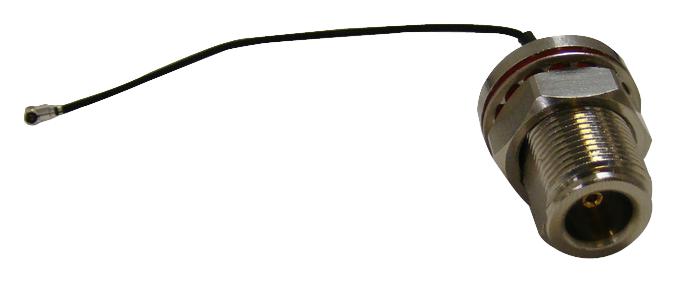

MULTICOMP PRO R632G7210200CE RF Coaxial Cable Assembly

The R-632G7210200CE is a high-quality 200mm RF coaxial cable assembly featuring a U.FL socket to an IP67-rated N-type connector. It incorporates a black heat-shrink tube, HRS U.FL-LP-088 shell, and terminal contact, utilizing a low-loss 1.37mm cable suitable for outdoor RF communication applications. The cable has an impedance of 50 ohms, operates from DC to 6 GHz, and supports a maximum working voltage of 60Vrms. It has a dielectric withstanding voltage of 200Vrms, minimum insulator resistance of 500 megaohms, and a VSWR of no more than 1.4:1. The insertion loss is up to -1.3dB, with a black sheath and an operational temperature range of -20°C to +70°C. Ideal for outdoor RF communications requiring durability and reliable performance.

View R632G7210200CEDatasheet [pdf]

Buy the Buy Multicomp Pro RF Cable Part Number R632G7210200CE Online

Purchase the Multicomp Pro RF Coaxial Cable Assembly online today. This 200mm cable features a U.FL socket, IP67-rated N-type connector, and a low-loss 1.37mm cable, making it ideal for outdoor RF communication systems. Supports DC to 6 GHz frequency, with a maximum working voltage of 60V rms and dielectric withstand voltage of 200V rms. Its robust design ensures durability in harsh environments, providing reliable signal transmission with low insertion loss. Perfect for applications requiring waterproof connection, high performance, and long-term outdoor use.

Get Multicomp Pro R632G7210200CE today—designed for outdoor RF applications with IP67 waterproofing and low-loss performance.
