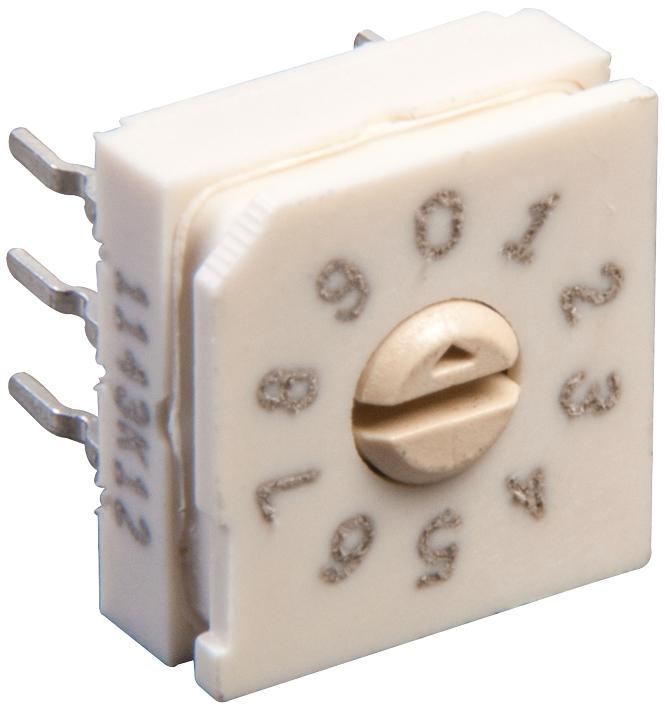

MULTICOMP PRO RBH210RBVB Rotary Switch
The RBH210RBVB is a high-quality through-hole rotary switch with flat-head actuator, rated for 24V DC at 400mA non-switching and 150mA switching, designed for signal control in electrical devices. It features a durable construction with a contact resistance of max 100mΩ, dielectric strength of AC 250V for 1 minute, and insulation resistance of minimum 100MΩ. Operating within -60°C to +125°C, it supports 10,000 switching cycles. Suitable for various industrial automation and electronics applications, ensuring reliable mechanical and electrical performance.
MULTICOMP PRO RBH210RBVB Rotary Switch Specifications:
- Rating: Non Switching 24V DC 400mA
- Switching Rating: 24V DC 150mA
- Life: 10,000 Steps
- Operating Force: 400gf.cm Max
- Initial Contact Resistance: 100mΩ Max
- Dielectric Strength: AC 250V 1 minute
- Insulation Resistance: 100MΩ Min. (DC 250V Megger)
- Operating Temperature: -60°C to +125°C
- Material: Thermoplastic Molded Nylon, FR-4 PCB with Gold Plated Contacts, Stainless Steel Spring, Brass Terminals
- Soldering Temperature: Max 260°C for 60 sec, 2 soldering cycles
- Vibration Resistance: MIL-STD-202F Method 201A, 10-55Hz, 1 min/cycle, 3 directions, 2 hours each
- Shock Resistance: MIL-STD-202F Method 213B, 50G, 11±1ms, 6 sides, 3 cycles
- Durability: 10,000 cycles at 25mA, 24V resistive load, contact resistance max 200mΩ
- Temperature Cycling: -60°C to +125°C, 96 hours thermal shock, humidity 40°C +2°C, 90-95% RH, 504 hours
- Soldering Conditions: Max 260°C, 60 sec, two times maximum, PCB thickness 1.6mm
Buy the Buy Multicomp Pro Rotary Switch Part Number RBH210RBVB Online
Ensure your electronic projects and industrial equipment operate reliably with the Multicomp Pro RBH210RBVB rotary switch. Designed for signal control, this durable through-hole switch supports high-temperature environments from -60°C to +125°C. Its robust construction guarantees up to 10,000 switching cycles, making it ideal for automation systems, control panels, and instrumentation. Easy to install with precise actuation, the switch features a flat-head actuator, high dielectric strength, low contact resistance, and is solderable on PCB boards. Purchase online today for dependable, high-performance switching components.
Order your Multicomp Pro RBH210RBVB rotary switch today and ensure reliable signal switching with high temperature tolerance and long cycle life.
