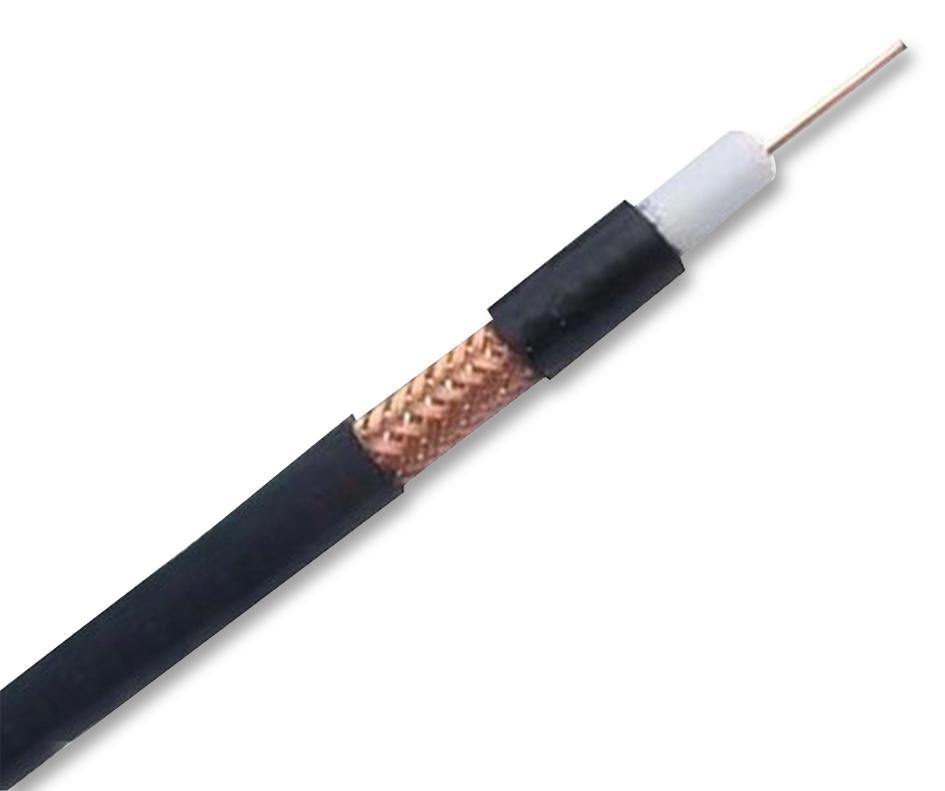

MULTICOMP PRO RG58 RG58 Coaxial Cable
RG58 coaxial cable is a flexible, durable cable designed for high-frequency transmission applications such as radio, security systems, and networking. It features a tinned copper inner conductor, solid PE dielectric, and a 95% tinned copper braid shield, all wrapped in an LSZH jacket that offers low smoke and toxicity properties. With an impedance of 50 ohms and maximum operating frequency of 1GHz, it ensures reliable signal integrity over long distances. Its temperature range is from -40°C to +85°C, making it suitable for diverse environments.
MULTICOMP PRO RG58 RG58 Coaxial Cable Specifications:
- Inner Conductor: Tinned Copper 19/0.0071 inch (0.18 mm)
- Dielectric: Solid PE 0.116 inch (2.95 mm)
- Shield: 95% Tinned Copper Braid 0.14 inch (3.55 mm)
- Jacket: LSZH, 0.195 inch (4.95 mm)
- Impedance: 50 ohms +20 ohms
- Capacitance: 101 pF/m
- Velocity of Propagation: 66%
- Max. Operating Frequency: 1GHz
- Max. Operating Voltage: 1900 VRMS
- Corona Extinction Voltage: 1900 VRMS
- Voltage Withstand: 5000 VRMS
- Spark Test: 5000 VRMS
- Operating Temp. Range: -40°C to +85°C
- Attenuation (dB/100m) at 20°C: 10 MHz - 49 dB, 50 MHz - 10.9 dB, 100 MHz - 15.5 dB, 200 MHz - 24.5 dB, 400 MHz - 34.8 dB, 600 MHz - 39.6 dB, 860 MHz - 56.4 dB, 1000 MHz - 60.5 dB
Buy the Multicomp Series RG58 Coaxial Cable: RG58
Purchase the Multicomp Series RG58 coaxial cable online now to enjoy reliable high-frequency signal transmission. Designed with a robust LSZH jacket and high-quality materials, this cable ensures excellent durability and performance for indoor and outdoor applications. Its impedance of 50 ohms and maximum frequency of 1GHz make it ideal for radio, networking, and security systems. Easy to install and available in both per meter and 100-meter lengths, order today and upgrade your connectivity solutions efficiently.
Order your Multicomp Series RG58 coaxial cable today and ensure reliable high-frequency signal transmission with durable LSZH insulation.
