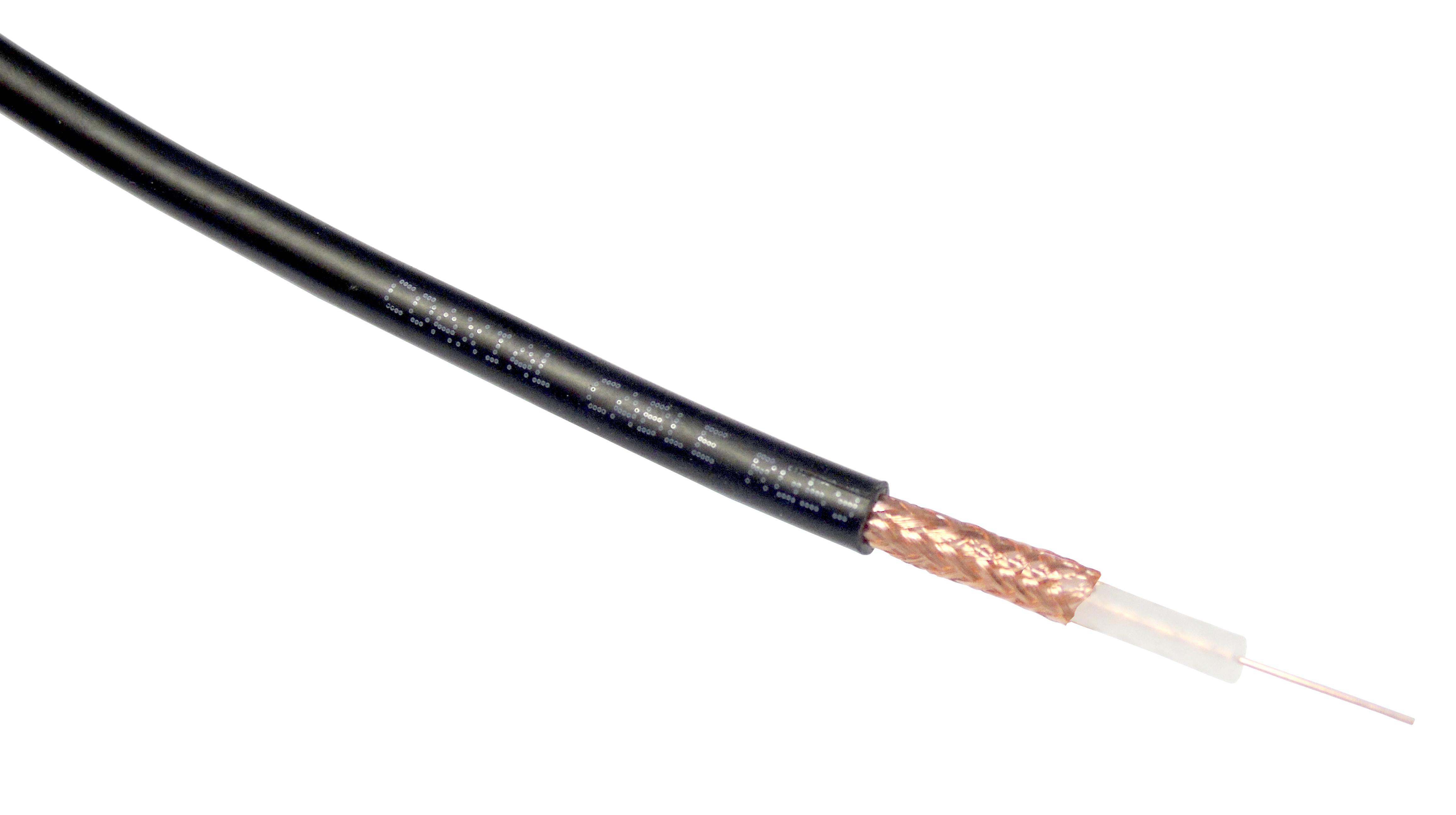

MULTICOMP-PRO RG59LSZH RG59 Coaxial Cable
The RG59 coaxial cable with LSZH jacket is designed for high-frequency video and data transmission applications. It features a copper-covered steel inner conductor, solid PE dielectric, and 80% copper braid shield for excellent shielding effectiveness. The cable's impedance is 75Ω, with a capacitance of 67pF/m, and it supports frequencies up to 1GHz with low attenuation. Suitable for security camera systems, CCTV, and broadcast-grade video connections, this cable meets safety standards with a fire-retardant LSZH outer jacket. Its durable construction ensures reliable performance in various environments, with a temperature range from -40°C to +85°C.
MULTICOMP-PRO RG59LSZH RG59 Coaxial Cable Specifications:
- Inner Conductor: Copper Covered Steel (CCS)
- Dielectric: Solid Polyethylene (PE)
- Shield: 80% Copper Braid
- Jacket Material: LSZH (Low Smoke Zero Halogen) black
- Diameter: Inner Conductor 0.023 inch (0.58 mm), Dielectric 0.146 inch (3.7 mm), Shield 0.185 inch (4.7 mm), Jacket 0.242 inch (6.15 mm)
- Impedance: 75Ω ± 30
- Capacitance: 67pF/m
- Velocity of Propagation: 66%
- Max Operating Frequency: 1 GHz
- Max Operating Voltage: 1700V RMS
- Corona Extinction Voltage: 2300V RMS
- Voltage Withstand: 7000V RMS
- Spark Test: 5000V RMS
- Attenuation @ 20°C: 10 MHz - 1.41 dB/100ft, 50 MHz - 26 dB/100ft, 100 MHz - 3.4 dB/100ft, 200 MHz - 5.2 dB/100ft, 400 MHz - 7.2 dB/100ft, 600 MHz - 9.2 dB/100ft, 860 MHz - 10.9 dB/100ft, 1000 MHz - 12 dB/100ft
- Temperature Range: -40°C to +85°C
Buy the Multicomp Series RG59 Coaxial Cable: RG59LSZH
Order the Multicomp RG59LSZH coaxial cable online today to ensure reliable high-frequency video and data transmission for your security systems, CCTV, or broadcast needs. This durable cable features a copper-covered steel conductor, solid PE dielectric, and 80% copper braid shield for excellent shielding. Its low attenuation at high frequencies and fire-retardant LSZH jacket provide safety and performance. Suitable for indoor and outdoor use, it supports frequencies up to 1GHz with a maximum voltage of 1700V RMS, making it ideal for professional video applications.
Buy Multicomp RG59LSZH coaxial cable now and experience reliable, safe high-frequency video and data transmission with durable LSZH insulation.
