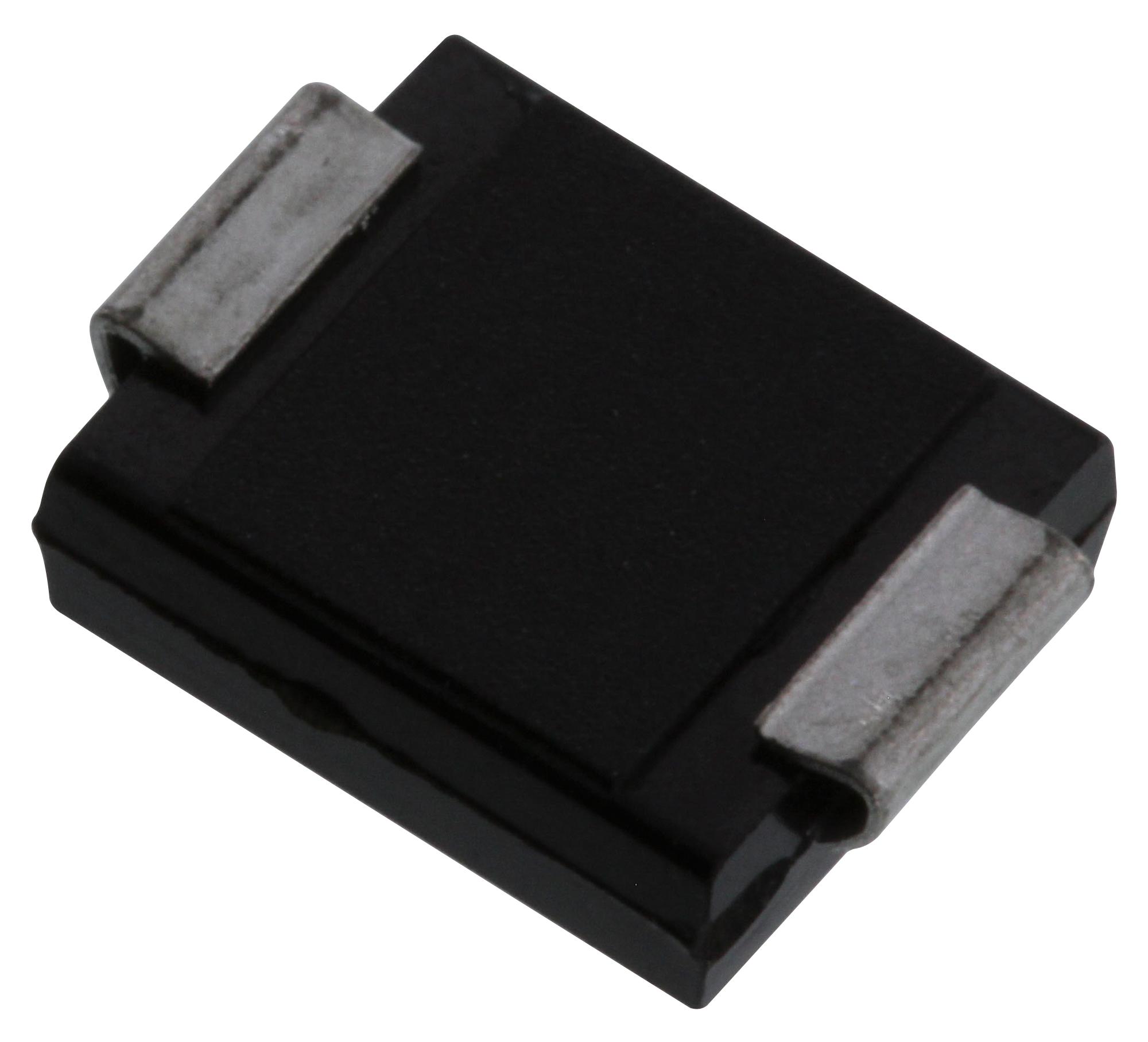

MULTICOMP PRO S3D Surface Mount Rectifier
The S3D+ is a robust surface-mount glass passivated rectifier designed for modern electronic circuits requiring high current capability and low reverse leakage. With a reverse voltage range of 50 to 1000 Volts and a forward current of 3.0 Amperes, it is suitable for applications involving resistive, inductive, and capacitive loads. Its molded plastic case features UL 94V-0 flammability classification, ensuring safety and reliability. The device exhibits low forward voltage drop, high peak repetitive reverse voltage, and excellent thermal resistance, making it ideal for high-speed switching and rectification in industrial and power electronics.
MULTICOMP PRO S3D Surface Mount Rectifier Specifications:
- Case: Molded Plastic with UL 94V-0 flammability
- Polarity: Colour band denotes cathode
- Weight: 0.007 ounces, 0.21 grams
- Mounting Position: Any
- Reverse Voltage: 50 to 1000 Volts
- Forward Current: 3.0 Amperes
- Maximum Ratings at 25°C: Reverse Voltage 50-1000V, Forward Current 3A
- Peak Forward Surge Current: 100A (8.3 ms single half sine wave)
- Forward Voltage at 3A: 1.1V
- Maximum Reverse Current at 25°C: 5μA
- Operating Temperature: -55°C to +150°C
- Junction Capacitance: 40 pF
- Thermal Resistance Junction to Lead: 10°C/W
- Thermal Resistance Junction to Ambient: 50°C/W
- Dimensions: 0.128 x 0.245 inch (3.25 x 6.22 mm) (varies by model)
Buy the Multicomp Pro S3D+ – Reliable Rectifier for Industrial Applications
Enhance your power circuitry with the high-performance Multicomp Pro S3D+ surface mount rectifier, capable of handling up to 1000V and 3A current. Its glass passivated chip ensures high reliability and low leakage, while the UL 94V-0 plastic case guarantees safety. Suitable for industrial power supplies, switching regulators, and rectification tasks, this device features excellent thermal management and low forward voltage drop. Order online today to improve your electronic system’s efficiency and durability with this dependable rectifier.
Buy Multicomp Pro S3D+ now and experience unmatched reliability and performance in power rectification for industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO S3D?
You can click on the BUY or RFQ button to purchase S3D from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part S3D?
You can download the S3D datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of S3D?
MULTICOMP PRO
