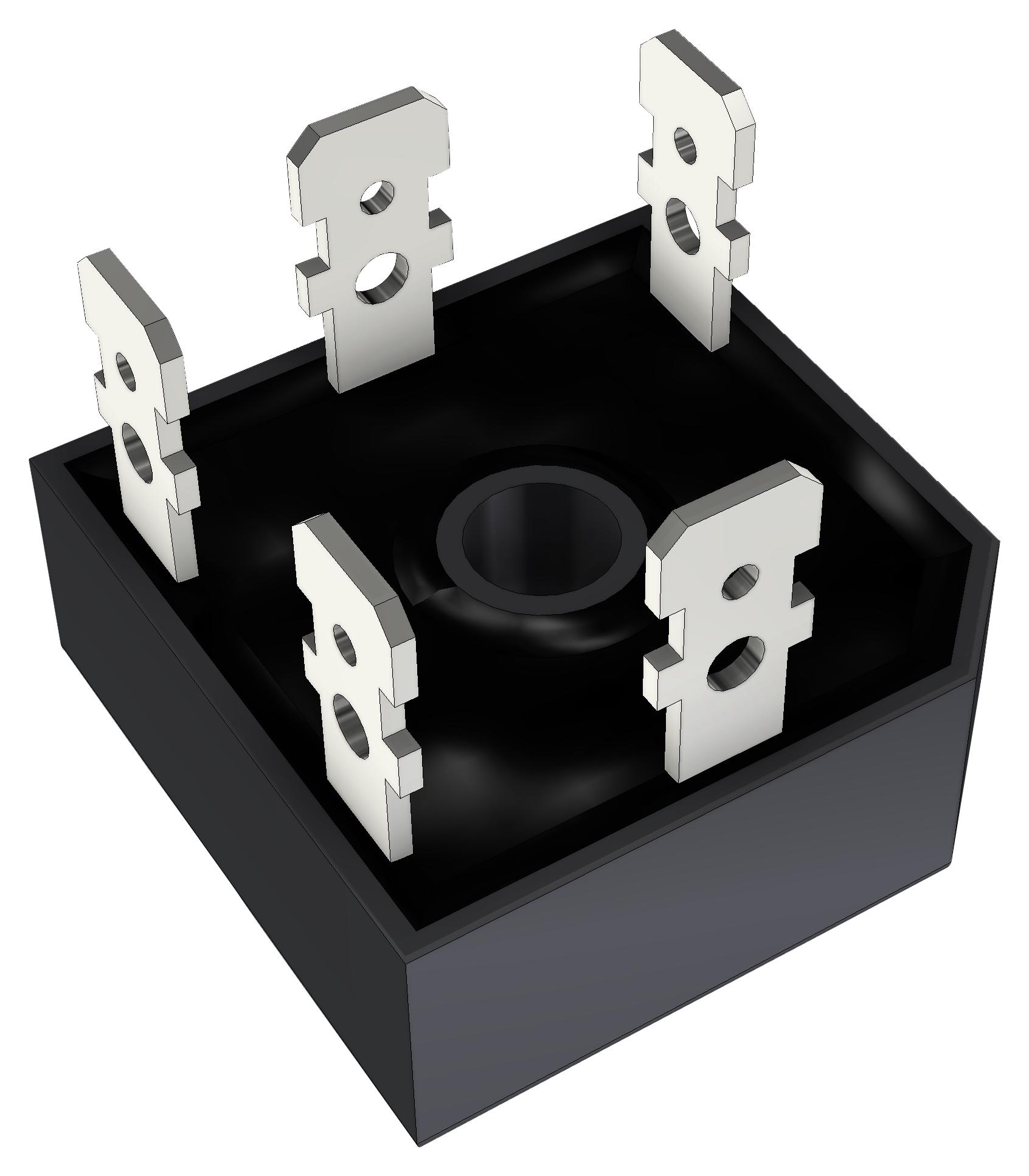

MULTICOMP PRO SBR2500 Three Phase Bridge Rectifier
The Silicon Passivated Three Phase Bridge Rectifier delivers high reliability and efficiency for AC-DC conversion in industrial applications. Featuring diffused junctions and low forward voltage drop, it offers high surge current capability, making it ideal for printed circuit boards and demanding environments. The epoxy case with heat sink ensures excellent heat dissipation, while plated solderable leads assure robust electrical connections. Suitable for resistive, inductive, and capacitive loads, the rectifier maintains stable performance across wide temperature ranges from -55°C to +160°C, supporting high current and voltage ratings for versatile power management.
MULTICOMP PRO SBR2500 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 50V to 1600V
- Working Peak Reverse Voltage VRWM: 50V to 1600V
- Peak Non-Repetitive Reverse Voltage VrsM: 75V to 1700V
- Maximum Average Forward Rectified Current: 25A
- Peak Surge Current (No Voltage Reapplied): 375A
- Maximum Forward Voltage Drop: 1.4V at 12.5A/17.5A
- Thermal Resistance Junction to Case: 1.42 KW
- Operating Temperature Range: -55°C to +160°C
- RMS Reverse Voltage: 35V to 1120V
- RMS Isolation Voltage from Case to Lead: 2,500V
- Mounting: Bolt down on heatsink with thermal compound, max torque 20 in-lbs.
- Dimensions: Approx. 23.8mm diameter with mounting hole 4.9mm, case made of epoxy, heat sink compatible.
Buy the Buy Multicomp Pro Three Phase Bridge Rectifier Part Number SBR2500 Online
Purchase the high-performance Multicomp Pro SBR2500 three phase bridge rectifier online and enjoy reliable power conversion with high surge capacity. Designed with diffused junctions and low forward voltage drop, it supports both resistive and inductive loads efficiently. Its epoxy case with heat sink mounting ensures optimal thermal management, making it suitable for demanding industrial environments. Stock is available for fast delivery, allowing you to integrate this durable and efficient rectifier into your power systems with ease. Equip your projects with trusted quality now.
Order your Multicomp Pro Series SBR2500 three phase bridge rectifier today and ensure robust, high-capacity power conversion for your industrial projects.
